Articulated glider - DGGM

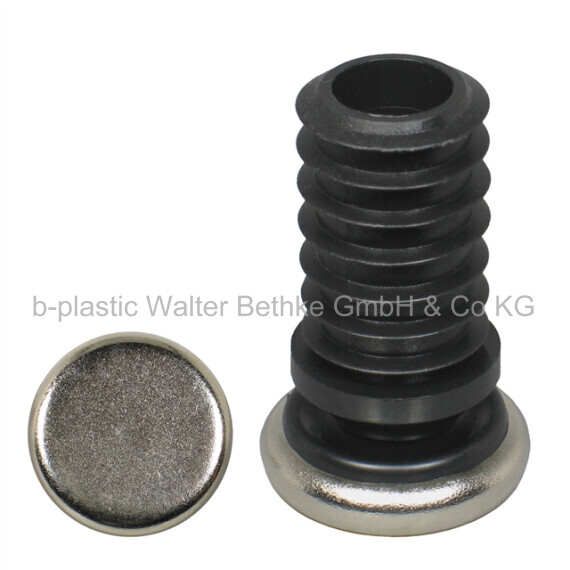

Articulated-glides made of polyethylene with metal slide base
Your session has expired, please log in again.
Configure your article. Enter multiple parameters to get the best result.

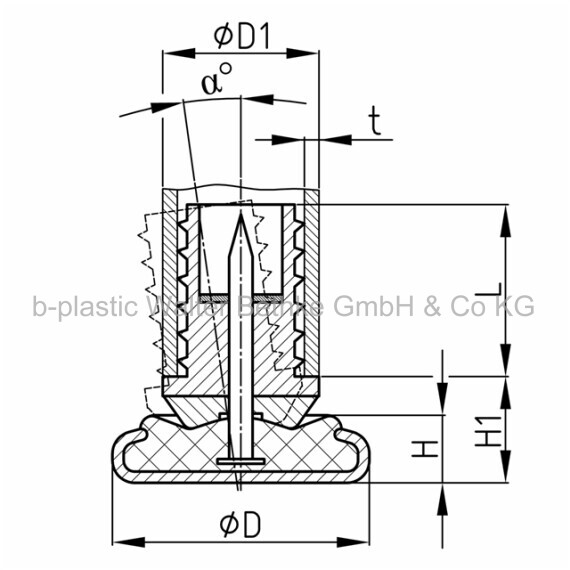

α in °:
D in mm:
D1 in mm:
H in mm:
H1 in mm:
L in mm:
t in mm:
Your article results:
Order-No. α
°D
mmD1
mmH
mmH1
mmL
mmt
mm- DGGM 23 / 10
DGGM 23 / 10 18 (-20) 23 14 (13,5) 6,5 12,5 17 (21) 1,5-2 - DGGM 23 / 12
DGGM 23 / 12 18 (-20) 23 18 (17,5) 6,5 13 26 2,5-3 - DGGM 23 / 14
DGGM 23 / 14 18 (-20) 23 18 (17,5) 6,5 13 24 1,5-2 - DGGM 23 / 16
DGGM 23 / 16 18 (-20) 23 18 (17,5) 6,5 13 24 0,5-1 - DGGM 23 / 18
DGGM 23 / 18 18 (-20) 23 22 (21,5) 6,5 12,5 24 1,5-2 - DGGM 27 / 12
DGGM 27 / 12 25 27 18 (17,5) 6,5 13 26 2,5-3 - DGGM 27 / 14
DGGM 27 / 14 25 27 18 (17,5) 6,5 13 24 1,5-2 - DGGM 27 / 16
DGGM 27 / 16 25 27 18 (17,5) 6,5 13 24 0,5-1 - DGGM 27 / 18
DGGM 27 / 18 25 27 22 (21,5) 6,5 12,5 24 1,5-2
