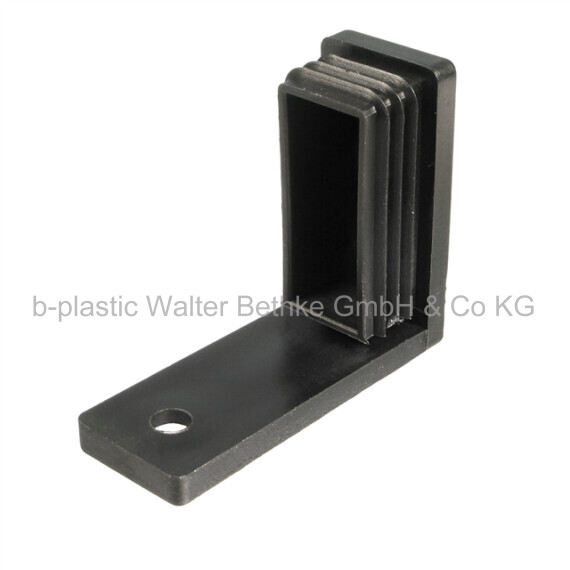

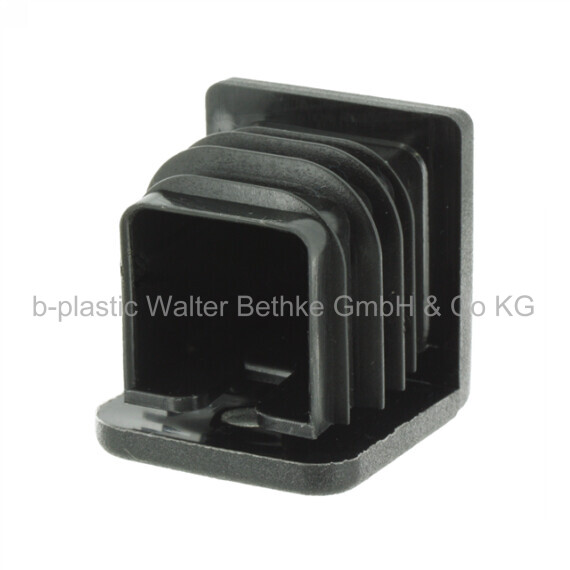

Angle glider - WL
Lamella angle glides made of PE
Your session has expired, please log in again.
Configure your article. Enter multiple parameters to get the best result.

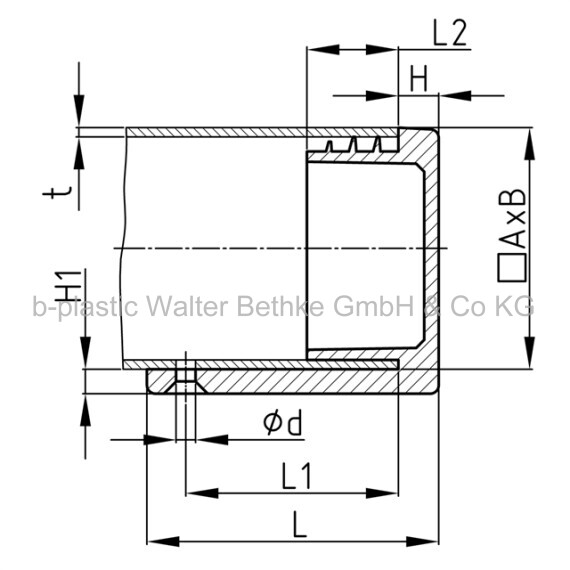

A in mm:
B in mm:
d in mm:
H in mm:
H1 in mm:
L in mm:
L1 in mm:
L2 in mm:
t in mm:
Your article results:
Order-No. A
mmB
mmd
mmH
mmH1
mmL
mmL1
mmL2
mmt
mm- WL 20x20x1,5-2
WL 20x20x1,5-2 20 20 5,3 5 5 39 24,5 15 1,5-2 - WL 25x25x1,5-2
WL 25x25x1,5-2 25 25 5,3 4 4 26 13 19,5 1,5-2 - WL 30x15x1,5-2
WL 30x15x1,5-2 30 15 5,3 3 7 40 19,5 15 1,5-2 - WL 30x20x1,5-2
WL 30x20x1,5-2 30 20 5,3 5 5 39 17 14,5 1,5-2 - WL 30x25x1,5-2
WL 30x25x1,5-2 30 25 5,3 5,5 6 45 20 14,5 1,5-2 - WL 30x30x1,5-2
WL 30x30x1,5-2 30 30 5,3 4 4 34 20 26,5 1,5-2 - WL 35x20x1,5-2
WL 35x20x1,5-2 35 20 5,3 5 5 40 25,5 15 1,5-2 - WL 35x25x1,5-2
WL 35x25x1,5-2 35 25 5 5 25 14,5 1,5-2 - WL 40x20x1,5-2
WL 40x20x1,5-2 40 20 5,3 5 5 55 41 14,5 1,5-2 - WL 40x25x1,5-2
WL 40x25x1,5-2 40 25 5,3 5 8 45 31 14,5 1,5-2 - WL 50x20x1,5-2
WL 50x20x1,5-2 50 20 5 5 34 14,5 1,5-2 - WL 50x25x1,5-2
WL 50x25x1,5-2 50 25 5,3 5 8 54 40 14,5 1,5-2 - WL 50x30x1,5-2
WL 50x30x1,5-2 50 30 5,3 5 7 40 25,5 15 1,5-2
