Glide cap - RGK

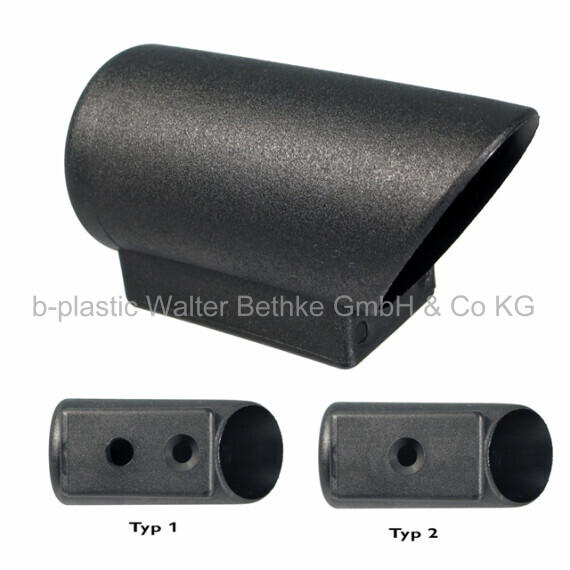

Round angled sliding caps (step protection, tipping radius) made of PA 6
Your session has expired, please log in again.
Configure your article. Enter multiple parameters to get the best result.
Type:
A in mm:
B in mm:
C in mm:
C1 in mm:
d in mm:
d1 in mm:
d2 in mm:
H in mm:
L ca. in mm:
Your article results:

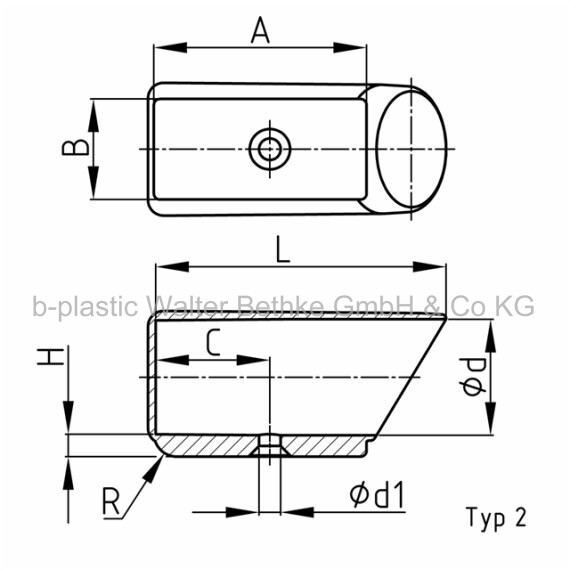

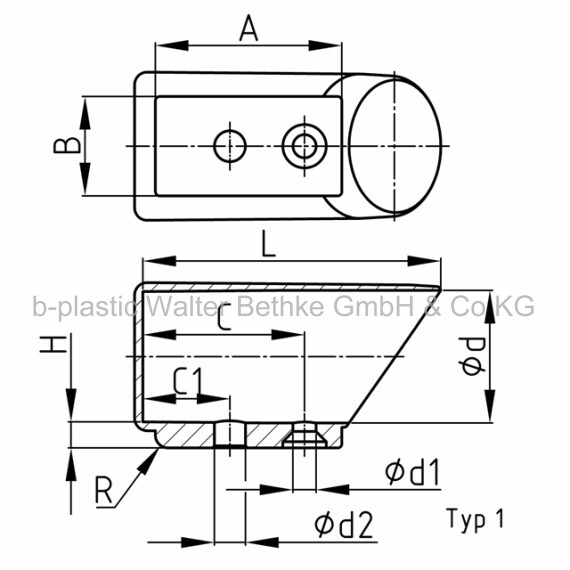

Order-No. Type A
mmB
mmC
mmC1
mmd
mmd1
mmd2
mmH
mmL ca.
mm- RGK 22
RGK 22 1 39 24 33 16 22 6 8 5 58 - RGK 25
RGK 25 2 55 26 29 25 6 5,5 72 - RGK 30
RGK 30 2 55 26 29 30 6 6 75 - RGK 32
RGK 32 1 45 24 39 21 32 6 8 6 74 - RGK 35
RGK 35 2 60 28 29 35 6 6 82,5 - RGK 38
RGK 38 1 53 33 41 21 38 6 8 6 85,5 - RGK 40
RGK 40 1 53 33 41 21 40 6 8 6 87 - RGK 45
RGK 45 1 54 35 43 21 45 6 8 6 87
