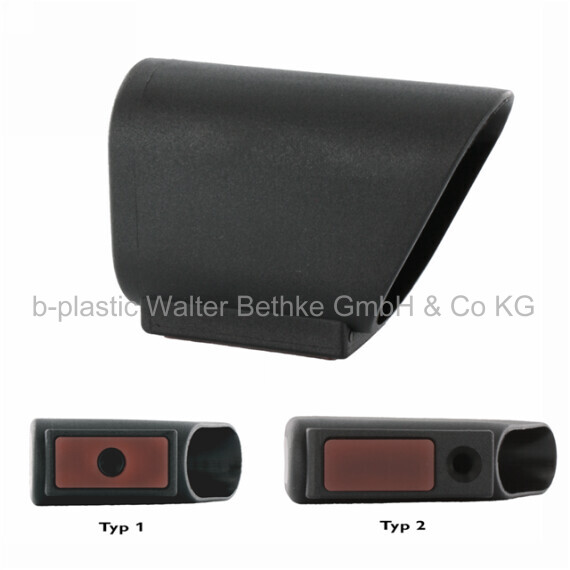

Glide cap - OGK2/H

Oval angled sliding caps (step protection, tilting radius) made of PA 6 with soft, abrasion-resistant, non-slip, noise-damping sliding insert

Your session has expired, please log in again.
OGK2/H - Type 2
OGK2/H

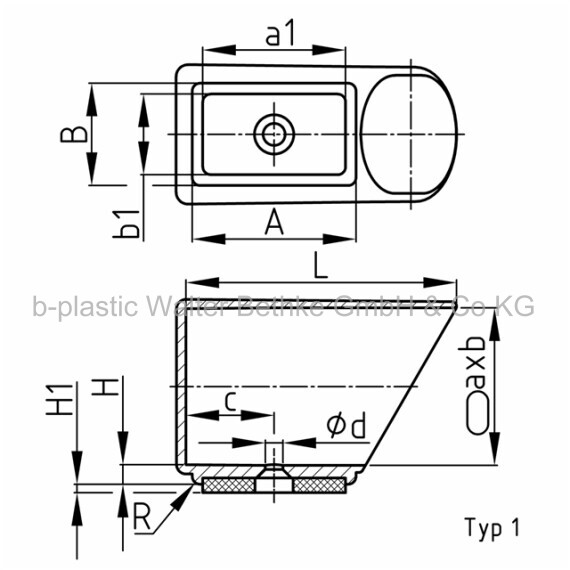

OGK2/H - Type 1

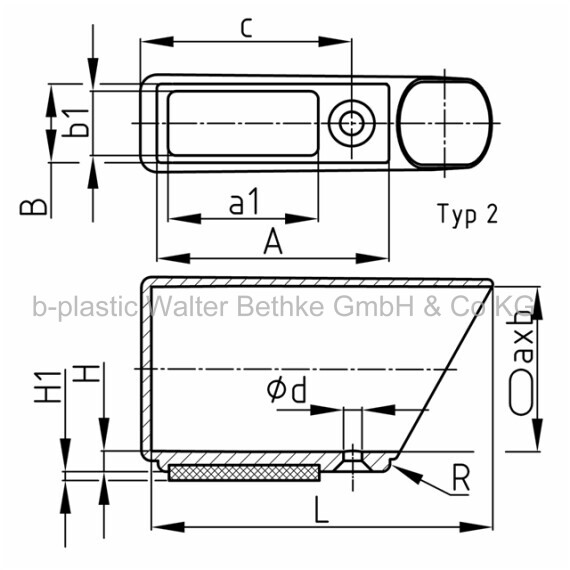

OGK2/H - Type 2
OGK2/H
OGK2/H
OGK2/H - Type 1
OGK2/H - Type 2
OGK2/H
OGK2/H - Type 1
OGK2/H - Type 2
OGK2/H
OGK2/H - Type 1
OGK2/H - Type 2
PDF data sheet
  • Base body: Polyamide (PA 6)
  • Slide base: Polyurethane (PUR), appr. 80 Shore A
  • acrylate adhesive
black RAL 9005
  • Depending on tube tolerance and surface condition of the tube a saving screw connection is not necessary - Verification and determination is matter of the customer.
  • Special colours (colours, minimum quantities, set-up costs, pricing and surcharges)
  • With your engraved company logo (tooling costs, minimum quantities, set-up costs)
  • With your tampon printed company logo (set-up costs, minimum quantities, printing costs)

Configure your article. Enter multiple parameters to get the best result.

Type:

a in mm:

b in mm:

a1 in mm:

b1 in mm:

A in mm:

B in mm:

c in mm:

d in mm:

H in mm:

H1 in mm:

L ca. in mm:

Your article results:

  • Order-No. Typea
    mm    		b
    mm    		a1
    mm    		b1
    mm    		A
    mm    		B
    mm    		c
    mm    		d
    mm    		H
    mm    		H1
    mm    		L ca.
    mm
  • OGK2/H 38x20 PUR HP 32x15
    OGK2/H 38x20 PUR HP 32x15 23820321554,52048,55,76283
  • OGK2/H 40x20 PUR HP 32x15
    OGK2/H 40x20 PUR HP 32x15 24020321554,52048,55,76283
  • OGK2/H 50x30 PUR HP 44,5x20
    OGK2/H 50x30 PUR HP 44,5x20 1503045205226285,76289
  • OGK2/H 60x30 PUR HP 44,5x20
    OGK2/H 60x30 PUR HP 44,5x20 16030452056,52730,55,76294
