Clamping shell glider - KKSGH

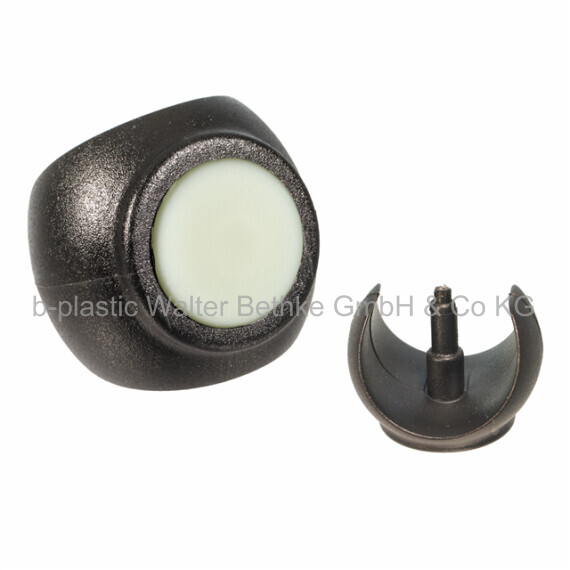

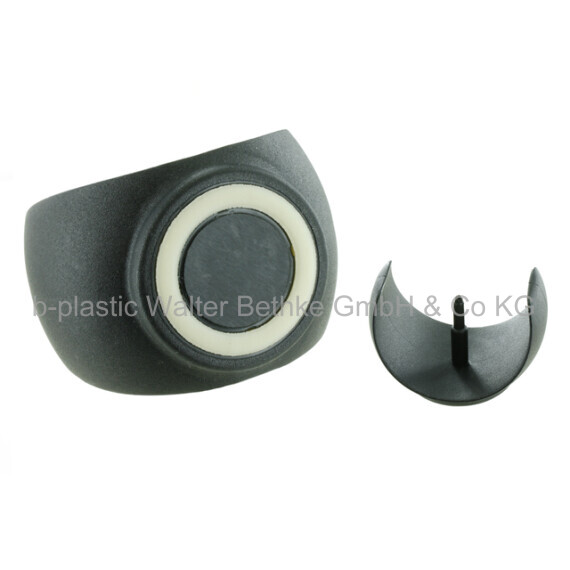

Ellipsoid-shaped clamping shell glides made of PA 6 with noise-damping PVC-P/TPE anti-slip adhesive insert

Your session has expired, please log in again.
KKSGH 60
KKSGH-TPE
KKSGH 60 TPE
KKSGH
KKSGH 60
KKSGH-TPE
KKSGH 60 TPE
KKSGH
KKSGH 60
KKSGH-TPE
KKSGH 60 TPE
KKSGH
KKSGH 60
KKSGH-TPE
KKSGH 60 TPE
KKSGH
PDF data sheet
  • Base body: Polyamide (PA 6)
  • Adhesive insert: plasticised PVC (PVC-P) / TPE
black RAL 9005
  • Non-skid due to PVC (soft) / TPE gliding base
  • Special colours (colours, minimum quantities, set-up costs, pricing and surcharges)
  • For series KKSGx are patent rights registered.

Configure your article. Enter multiple parameters to get the best result.

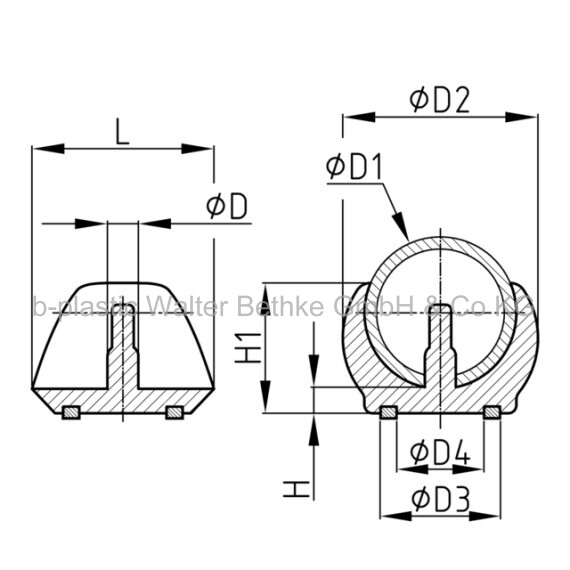

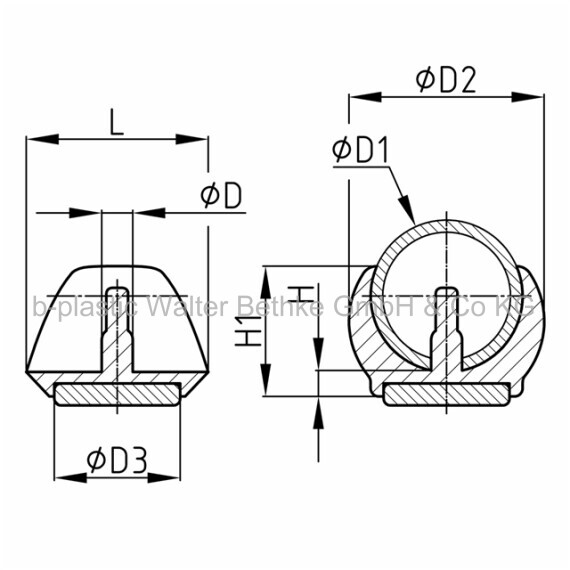

Boring-Ø in mm:

D in mm:

D1 in mm:

D2 in mm:

D3 in mm:

D4:

H in mm:

H1 in mm:

L in mm:

Your article results:

  • Order-No. Boring-Ø
    mm    		D
    mm    		D1
    mm    		D2
    mm    		D3
    mm    		D4H
    mm    		H1
    mm    		L
    mm
  • KKSGH 20
    KKSGH 20 5,8-5,95,718-2028155,51925
  • KKSGH 22
    KKSGH 22 5,8-5,95,721-2428,5204,520,526,5
  • KKSGH 25
    KKSGH 25 5,8-5,95,724-26342052231,5
  • KKSGH 28
    KKSGH 28 5,8-5,95,727-29362552433,5
  • KKSGH 30
    KKSGH 30 5,8-5,95,730-3240254,524,534,5
  • KKSGH 32
    KKSGH 32 5,8-5,95,732-3441,52552736
  • KKSGH 35
    KKSGH 35 6,5-6,66,434-3644,525527,538,5
  • KKSGH 60
    KKSGH 60 6,5-6,66,459-61673426,5744,548
