Machine foot - MFAV

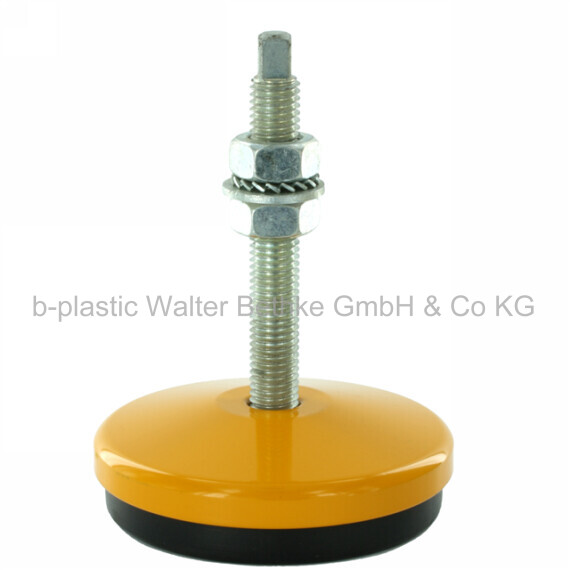

Machine feet with painted steel base, galvanised thread and vibration-damping rubber pad

Your session has expired, please log in again.
MFAV
MFAV
MFAV
MFAV
MFAV
MFAV
MFAV
MFAV
MFAV
MFAV
PDF data sheet
  • Thread: zinc-plated steel
  • Base: painted steel
  • Rubber: NBR 80 Shore
daffodil yellow RAL 1007
  • Included in the scope of delivery: 2 nuts, 1 washer, 1 tooth lock washer
  • The rubber of the machine base is 10 mm thick and the surface is infused with circular veins for optimum vibration damping.
  • Machine tools, injection moulding units, shearing machines, vibrators, printing machines, etc. ...
  • The load capacity of the screw (buckling length!) may be less than indicated in the table.
  • The machine foot is adjusted via the square on the threaded head.
  • For higher loads, a vibration-damping plate made of NBR with a hardness of 90 Shore can be supplied.

Configure your article. Enter multiple parameters to get the best result.

D in mm:

F max. in kg:

F min. in kg:

H in mm:

L in mm:

M:

WAF in mm:

Your article results:

  • Order-No. D
    mm    		F max.
    kg    		F min.
    kg    		H
    mm    		L
    mm    		MWAF
    mm
  • MFAV 84
    MFAV 84 846003003083M128
  • MFAV 104
    MFAV 104 104110060034121M149
  • MFAV 120
    MFAV 120 120130070037125M1610
  • MFAV 140
    MFAV 140 140160080045128M1610
  • MFAV 160
    MFAV 160 1602500120045135M2013
  • MFAV 180
    MFAV 180 1803500170045135M2013
  • MFAV 230
    MFAV 230 2305000250055135M2416
