Machine foot - MFDA

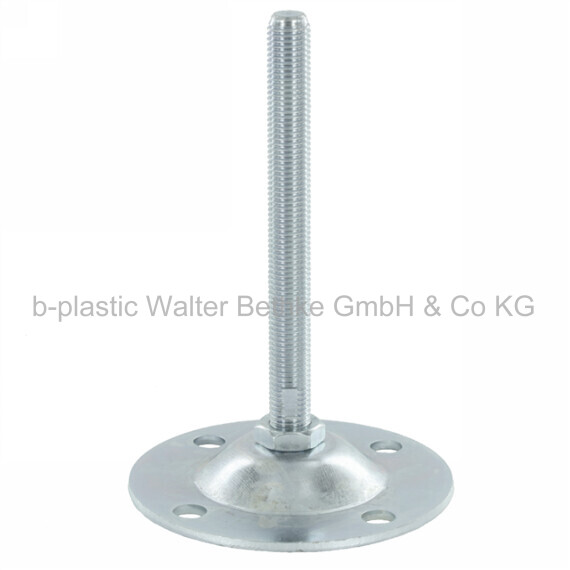

Form-punched machine feet made of galvanised steel with fixing holes and check nut

Your session has expired, please log in again.
MFDA
MFDA
MFDA
MFDA
MFDA
MFDA
MFDA
MFDA
MFDA
MFDA
PDF data sheet
  • Thread: zinc-plated steel
  • Base: galvanized pressed steel
  • The clamping nut locks the screw firmly with the foot.
  • The machine foot can compensate for uneven floors up to 8°.
  • The machine foot offers the possibility to personalize the base with your company logo.
  • Palletising machines, woodworking machines, general in production machines
  • The load capacity of the screw (buckling length!) may be less than indicated in the table.
  • Delivery with additional steel nut possible.

Configure your article. Enter multiple parameters to get the best result.

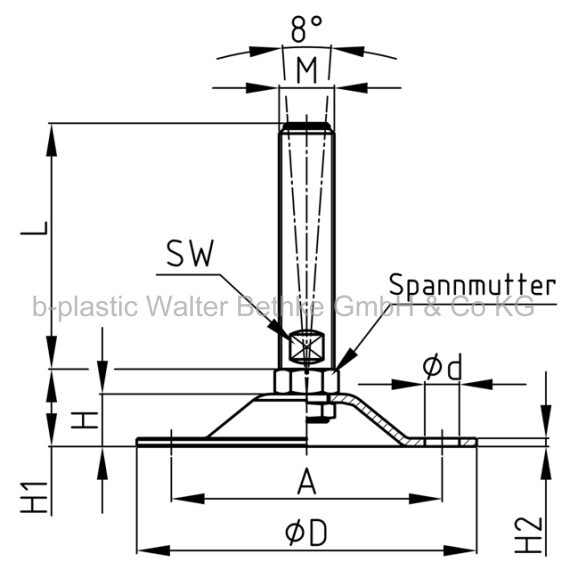

A in mm:

D in mm:

d in mm:

F max. in kg:

H in mm:

H1 in mm:

H2 in mm:

L in mm:

M:

WAF in mm:

Your article results:

  • Order-No. A
    mm    		D
    mm    		d
    mm    		F max.
    kg    		H
    mm    		H1
    mm    		H2
    mm    		L
    mm    		MWAF
    mm
  • MFDA 124 / M16x150
    MFDA 124 / M16x150 9812412,5200020,5344150M1617
  • MFDA 124 / M20X150
    MFDA 124 / M20X150 9812412,5250020,5344150M2017
  • MFDA 124 / M20X200
    MFDA 124 / M20X200 9812412,5250020,5344200M2017
  • MFDA 124 / M24X150
    MFDA 124 / M24X150 9812412,5300020,5344150M2420
  • MFDA 124 / M24X200
    MFDA 124 / M24X200 9812412,5300020,5344200M2420
