Threaded insert - RGL

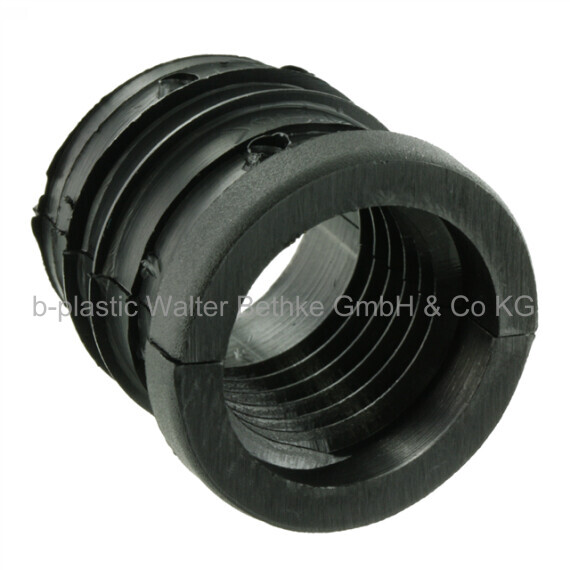

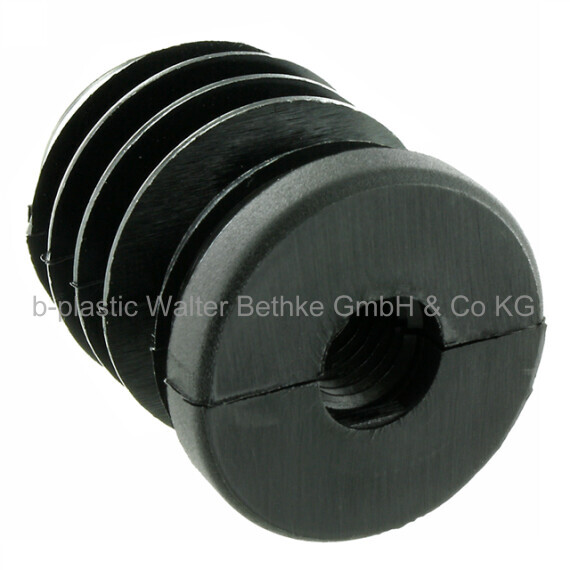

Threaded plugs made of PA for round tubes with injection moulded plastic thread, two-parts
Configure your article. Enter multiple parameters to get the best result.

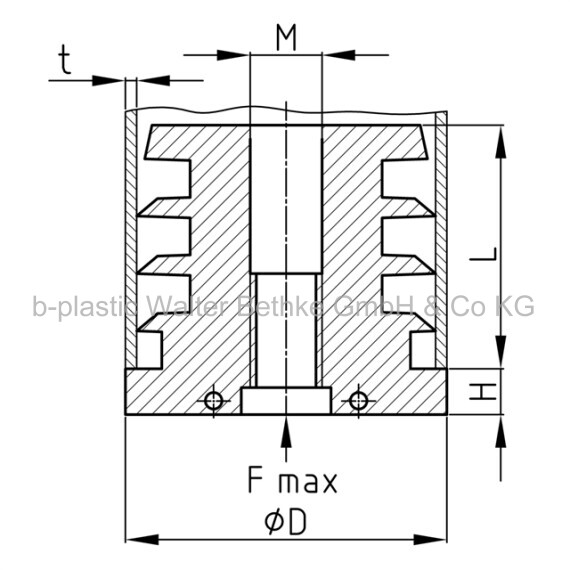

D in mm:
F max. in kg:
H in mm:
L in mm:
M:
t in mm:
Your article results:
Order-No. D
mmF max.
kgH
mmL
mmM t
mm- RGL 16 M6
RGL 16 M6 16 100 5 34 M6 1-1,5 - RGL 16x2 M6 OB
RGL 16x2 M6 OB 16 39 M6 2 - RGL 16 M8
RGL 16 M8 16 100 5 34 M8 1,5 - RGL 16x1 M8
RGL 16x1 M8 16 100 5 34 M8 1 - RGL 16x2 M8
RGL 16x2 M8 16 100 5 34 M8 2 - RGL 18 M8
RGL 18 M8 18 100 5 34 M8 1,5 - RGL 18x1 M8
RGL 18x1 M8 18 100 5 34 M8 1 - RGL 18 M10
RGL 18 M10 18 100 5 34 M10 1,5 - RGL 20 M8
RGL 20 M8 20 100 5 34 M8 1-1,5 - RGL 20x2 M8
RGL 20x2 M8 20 100 5 34 M8 2 - RGL 20 M10
RGL 20 M10 20 100 5 34 M10 1,5-2 - RGL 20 M12
RGL 20 M12 20 150 5 34 M12 1-1,5 - RGL 22 M8
RGL 22 M8 22 100 5 34 M8 1,5-2 - RGL 22x1 M8
RGL 22x1 M8 22 100 5 34 M8 1 - RGL 22 M10
RGL 22 M10 22 100 5 34 M10 1,5-2 - RGL 25 M6 OB
RGL 25 M6 OB 25 39 M6 1,5-2 - RGL 25 M6
RGL 25 M6 25 100 5 34 M6 1,5-2 - RGL 25 M8
RGL 25 M8 25 100 5 34 M8 1,5-2 - RGL 25 M10
RGL 25 M10 25 100 5 34 M10 1,5-2 - RGL 25 M12
RGL 25 M12 25 150 5 34 M12 1-2 - RGL 25 M16
RGL 25 M16 25 150 5 34 M16 1,5 - RGL 25x1 M16
RGL 25x1 M16 25 150 5 34 M16 1 - RGL 25x2 M16
RGL 25x2 M16 25 150 5 34 M16 2 - RGL 28 M8
RGL 28 M8 28 100 5 34 M8 1,5-2 - RGL 28 M10
RGL 28 M10 28 100 5 34 M10 1,1,5 - RGL 28 M16
RGL 28 M16 28 150 5 34 M16 1-2 - RGL 30 M8
RGL 30 M8 30 100 5 34 M8 1,5-2 - RGL 30 M10
RGL 30 M10 30 100 5 34 M10 1,5-2 - RGL 30x2,5 M16
RGL 30x2,5 M16 30 150 5 34 M10 2-2,5 - RGL 32 M10
RGL 32 M10 32 100 5 34 M10 1,5-2 - RGL 32 M22
RGL 32 M22 32 150 5 34 M22 1,2-2 - RGL 35 M22
RGL 35 M22 35 150 5 34 M22 1,2-2 - RGL 38 M22
RGL 38 M22 38 150 5 34 M22 1,5-2 - RGL 40 M22
RGL 40 M22 40 150 5 34 M22 1-2 - RGL 42 M22
RGL 42 M22 42 150 5 34 M22 1,5-2 - RGL 45 M22
RGL 45 M22 45 150 5 34 M22 1,5-2 - RGL 48x2 M22
RGL 48x2 M22 48 150 5 34 M22 2 - RGL 50 M22
RGL 50 M22 50 150 5 34 M22 1,5-2
