Articulated glider - 94

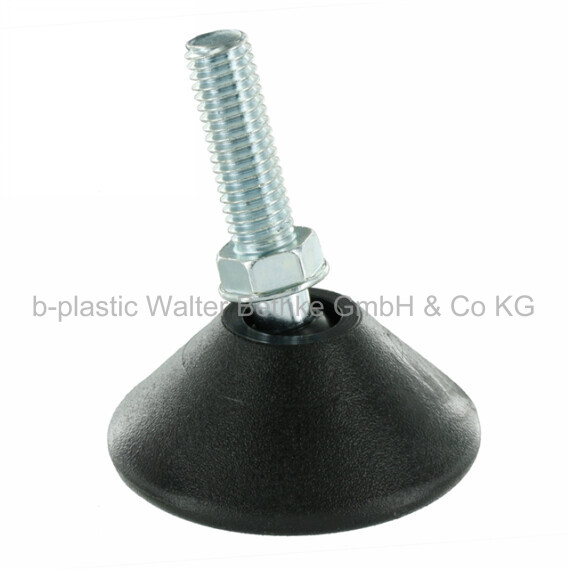

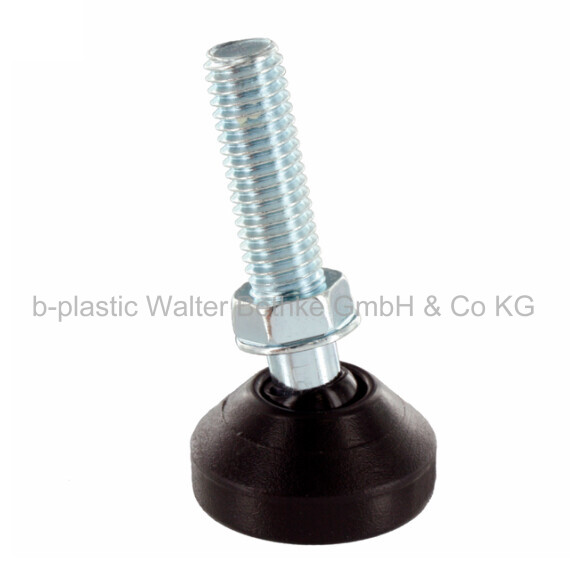

Articulated-glides with plastic ball made of PE and steel thread
Your session has expired, please log in again.
Configure your article. Enter multiple parameters to get the best result.

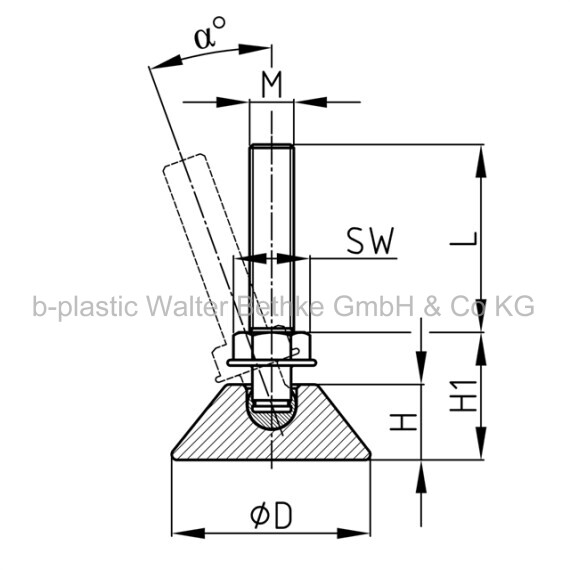

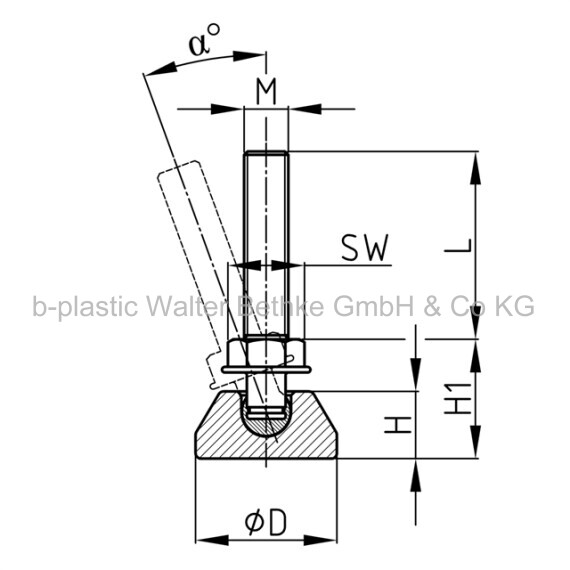

α in °:
D in mm:
H in mm:
H1 in mm:
L in mm:
M:
WAF in mm:
Your article results:
Order-No. α
°D
mmH
mmH1
mmL
mmM WAF
mm- 94-25 / M8x25
94-25 / M8x25 30 25 12 23 25 M8 11 - 94-25 / M10x25
94-25 / M10x25 30 25 12 23 25 M10 12 - 94-30 / M8x25
94-30 / M8x25 25 30 14,5 23 25 M8 11 - 94-30 / M8x34
94-30 / M8x34 25 30 14,5 23 34 M8 11 - 94-30 / M8x50
94-30 / M8x50 25 30 14,5 23 50 M8 11 - 94-30 / M10x25
94-30 / M10x25 25 30 14,5 24 25 M10 12 - 94-30 / M10x34
94-30 / M10x34 25 30 14,5 24 34 M10 12 - 94-30 / M10x50
94-30 / M10x50 25 30 14,5 24 50 M10 12 - 94-30 / M12x20
94-30 / M12x20 25 30 14,5 23 20 M12 14 - 94-30 / M12x40
94-30 / M12x40 25 30 14,5 23 40 M12 14 - 94-30 / M12x80
94-30 / M12x80 25 30 14,5 23 80 M12 14 - 94-44 / M8x25
94-44 / M8x25 20 44 18,5 27,5 25 M8 11 - 94-44 / M8x34
94-44 / M8x34 20 44 18,5 27,5 34 M8 11 - 94-44 / M8x50
94-44 / M8x50 20 44 18,5 27,5 50 M8 11 - 94-44 / M10x25
94-44 / M10x25 20 44 18,5 27,5 25 M10 12 - 94-44 / M10x34
94-44 / M10x34 20 44 18,5 27,5 34 M10 12 - 94-44 / M10x50
94-44 / M10x50 20 44 18,5 27,5 50 M10 12 - 94-44 / M12x20
94-44 / M12x20 20 44 18,5 28,5 20 M12 14 - 94-44 / M12x40
94-44 / M12x40 20 44 18,5 28,5 40 M12 14 - 94-44 / M12x80
94-44 / M12x80 20 44 18,5 28,5 80 M12 14 - 94-50 / M8x25
94-50 / M8x25 25 50 18,5 27,5 25 M8 11 - 94-50 / M8x34
94-50 / M8x34 25 50 18,5 27,5 34 M8 11 - 94-50 / M8x50
94-50 / M8x50 25 50 18,5 27,5 50 M8 11 - 94-50 / M10x25
94-50 / M10x25 25 50 18,5 28,5 25 M10 12 - 94-50 / M10x34
94-50 / M10x34 25 50 18,5 28,5 34 M10 12 - 94-50 / M10x50
94-50 / M10x50 25 50 18,5 28,5 50 M10 12 - 94-50 / M12x20
94-50 / M12x20 25 50 18,5 28,5 20 M12 14 - 94-50 / M12x40
94-50 / M12x40 25 50 18,5 28,5 40 M12 14 - 94-50 / M12x80
94-50 / M12x80 25 50 18,5 28,5 80 M12 14
