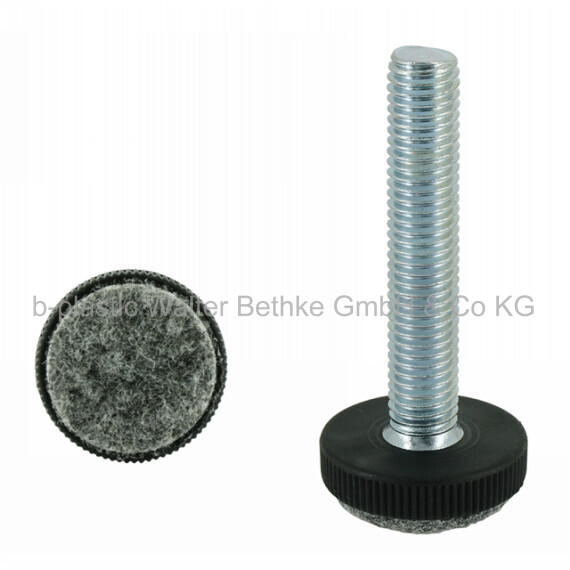

Adjusting screw - 70 F
Adjusting screws with knurled plastic base made of PA, welded felt and overmoulded threaded bolt
Configure your article. Enter multiple parameters to get the best result.

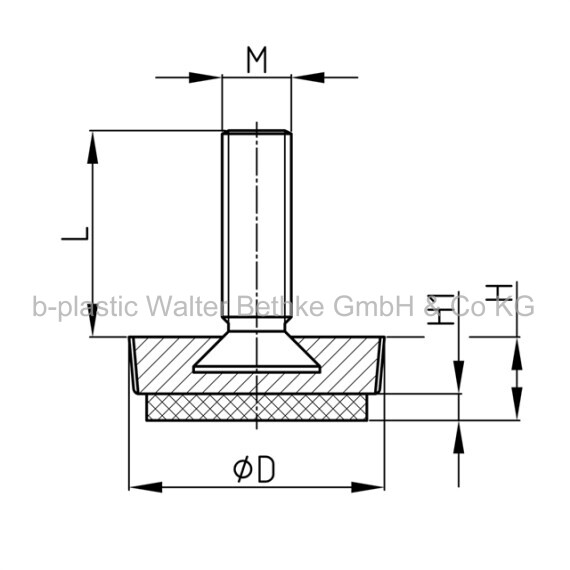

D in mm:
H in mm:
H1 in mm:
L in mm:
M:
Your article results:
Order-No. D
mmH
mmH1
mmL
mmM - 70F-25 / M5x20
70F-25 / M5x20 25 9 3 17 M5 - 70F-25 / M5x25
70F-25 / M5x25 25 9 3 22 M5 - 70F-25 / M5x30
70F-25 / M5x30 25 9 3 27 M5 - 70F-25 / M5x40
70F-25 / M5x40 25 9 3 37 M5 - 70F-25 / M5x50
70F-25 / M5x50 25 9 3 47 M5 - 70F-25 / M6x20
70F-25 / M6x20 25 9 3 17 M6 - 70F-25 / M6x25
70F-25 / M6x25 25 9 3 22 M6 - 70F-25 / M6x30
70F-25 / M6x30 25 9 3 27 M6 - 70F-25 / M6x40
70F-25 / M6x40 25 9 3 37 M6 - 70F-25 / M6x50
70F-25 / M6x50 25 9 3 47 M6 - 70F-25 / M8x20
70F-25 / M8x20 25 9 3 16 M8 - 70F-25 / M8x25
70F-25 / M8x25 25 9 3 21 M8 - 70F-25 / M8x30
70F-25 / M8x30 25 9 3 26 M8 - 70F-25 / M8x40
70F-25 / M8x40 25 9 3 36 M8 - 70F-25 / M8x50
70F-25 / M8x50 25 9 3 46 M8 - 70F-25 / M8x75
70F-25 / M8x75 25 9 3 71 M8 - 70F-25 / M10x25
70F-25 / M10x25 25 9 3 19 M10 - 70F-25 / M10x30
70F-25 / M10x30 25 9 3 24 M10 - 70F-25 / M10x40
70F-25 / M10x40 25 9 3 34 M10 - 70F-25 / M10x50
70F-25 / M10x50 25 9 3 44 M10 - 70F-25 / M10x60
70F-25 / M10x60 25 9 3 54 M10 - 70F-29 / M6x20
70F-29 / M6x20 29 10 3 17 M6 - 70F-29 / M6x25
70F-29 / M6x25 29 10 3 22 M6 - 70F-29 / M6x30
70F-29 / M6x30 29 10 3 27 M6 - 70F-29 / M6x40
70F-29 / M6x40 29 10 3 37 M6 - 70F-29 / M6x50
70F-29 / M6x50 29 10 3 47 M6 - 70F-29 / M8x20
70F-29 / M8x20 29 10 3 16 M8 - 70F-29 / M8x25
70F-29 / M8x25 29 10 3 21 M8 - 70F-29 / M8x30
70F-29 / M8x30 29 10 3 26 M8 - 70F-29 / M8x40
70F-29 / M8x40 29 10 3 36 M8 - 70F-29 / M8x50
70F-29 / M8x50 29 10 3 46 M8 - 70F-29 / M8x75
70F-29 / M8x75 29 10 3 71 M8 - 70F-29 / M10x25
70F-29 / M10x25 29 10 3 19 M10 - 70F-29 / M10x30
70F-29 / M10x30 29 10 3 24 M10 - 70F-29 / M10x40
70F-29 / M10x40 29 10 3 34 M10 - 70F-29 / M10x50
70F-29 / M10x50 29 10 3 44 M10 - 70F-29 / M10x60
70F-29 / M10x60 29 10 3 54 M10 - 70F-32 / M5x20
70F-32 / M5x20 32 11 3 17 M5 - 70F-32 / M6x20
70F-32 / M6x20 32 11 3 17 M6 - 70F-32 / M6x25
70F-32 / M6x25 32 11 3 22 M6 - 70F-32 / M6x30
70F-32 / M6x30 32 11 3 27 M6 - 70F-32 / M6x40
70F-32 / M6x40 32 11 3 37 M6 - 70F-32 / M6x50
70F-32 / M6x50 32 11 3 47 M6 - 70F-32 / M8x20
70F-32 / M8x20 32 11 3 16 M8 - 70F-32 / M8x25
70F-32 / M8x25 32 11 3 21 M8 - 70F-32 / M8x30
70F-32 / M8x30 32 11 3 26 M8 - 70F-32 / M8x40
70F-32 / M8x40 32 11 3 36 M8 - 70F-32 / M8x50
70F-32 / M8x50 32 11 3 46 M8 - 70F-32 / M8x75
70F-32 / M8x75 32 11 3 71 M8 - 70F-32 / M10x20
70F-32 / M10x20 32 11 3 13 M10 - 70F-32 / M10x25
70F-32 / M10x25 32 11 3 19 M10 - 70F-32 / M10x30
70F-32 / M10x30 32 11 3 24 M10 - 70F-32 / M10x40
70F-32 / M10x40 32 11 3 34 M10 - 70F-32 / M10x50
70F-32 / M10x50 32 11 3 44 M10 - 70F-32 / M10x60
70F-32 / M10x60 32 11 3 54 M10 - 70F-38 / M6x20
70F-38 / M6x20 38 12 3 17 M6 - 70F-38 / M6x25
70F-38 / M6x25 38 12 3 22 M6 - 70F-38 / M6x30
70F-38 / M6x30 38 12 3 27 M6 - 70F-38 / M6x40
70F-38 / M6x40 38 12 3 37 M6 - 70F-38 / M6x50
70F-38 / M6x50 38 12 3 47 M6 - 70F-38 / M8x20
70F-38 / M8x20 38 12 3 16 M8 - 70F-38 / M8x25
70F-38 / M8x25 38 12 3 21 M8 - 70F-38 / M8x30
70F-38 / M8x30 38 12 3 26 M8 - 70F-38 / M8x40
70F-38 / M8x40 38 12 3 36 M8 - 70F-38 / M8x50
70F-38 / M8x50 38 12 3 46 M8 - 70F-38 / M8x75
70F-38 / M8x75 38 12 3 71 M8 - 70F-38 / M10x25
70F-38 / M10x25 38 12 3 19 M10 - 70F-38 / M10x30
70F-38 / M10x30 38 12 3 24 M10 - 70F-38 / M10x40
70F-38 / M10x40 38 12 3 34 M10 - 70F-38 / M10x50
70F-38 / M10x50 38 12 3 44 M10 - 70F-38 / M10x60
70F-38 / M10x60 38 12 3 54 M10 - 70F-44 / M6x20
70F-44 / M6x20 44 13 3 17 M6 - 70F-44 / M6x25
70F-44 / M6x25 44 13 3 22 M6 - 70F-44 / M6x30
70F-44 / M6x30 44 13 3 27 M6 - 70F-44 / M6x40
70F-44 / M6x40 44 13 3 37 M6 - 70F-44 / M6x50
70F-44 / M6x50 44 13 3 47 M6 - 70F-44 / M8x20
70F-44 / M8x20 44 13 3 16 M8 - 70F-44 / M8x25
70F-44 / M8x25 44 13 3 21 M8 - 70F-44 / M8x30
70F-44 / M8x30 44 13 3 26 M8 - 70F-44 / M8x40
70F-44 / M8x40 44 13 3 36 M8 - 70F-44 / M8x50
70F-44 / M8x50 44 13 3 46 M8 - 70F-44 / M8x75
70F-44 / M8x75 44 13 3 71 M8 - 70F-44 / M10x25
70F-44 / M10x25 44 13 3 19 M10 - 70F-44 / M10x30
70F-44 / M10x30 44 13 3 24 M10 - 70F-44 / M10x40
70F-44 / M10x40 44 13 3 34 M10 - 70F-44 / M10x50
70F-44 / M10x50 44 13 3 44 M10 - 70F-44 / M10x60
70F-44 / M10x60 44 13 3 54 M10
