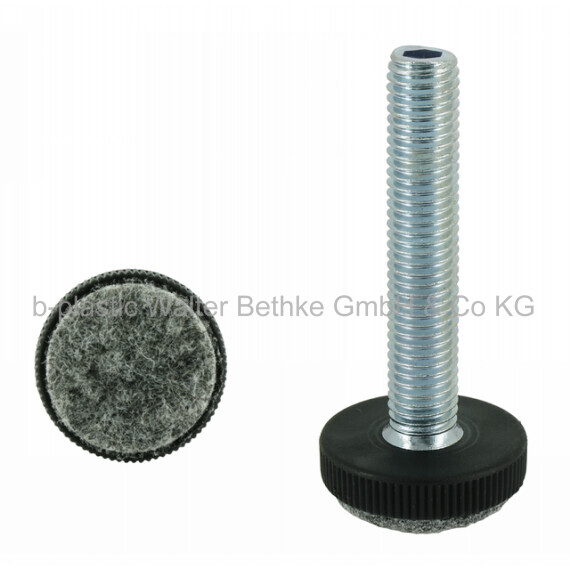

Adjusting screw - 70 F ISK
Adjusting screws with knurled plastic base made of PA, hexagon inside the thread end, welded felt and overmoulded threaded bolt
Configure your article. Enter multiple parameters to get the best result.

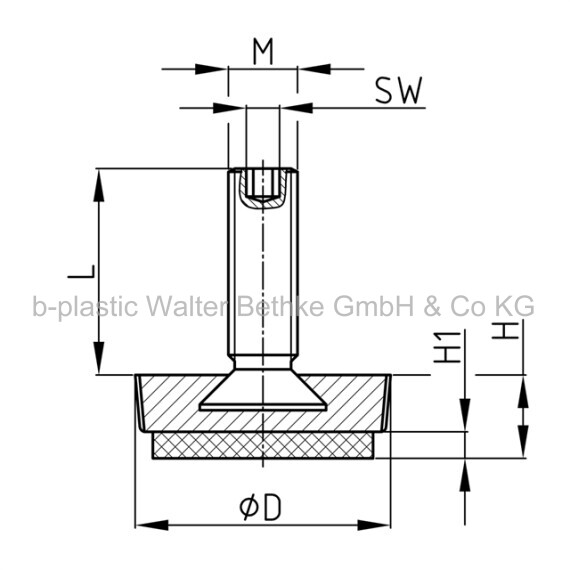

D in mm:
H in mm:
H1 in mm:
L in mm:
M:
WAF in mm:
Your article results:
Order-No. D
mmH
mmH1
mmL
mmM WAF
mm- 70F-25 / M10x25 ISK
70F-25 / M10x25 ISK 25 9 3 19 M10 4 - 70F-25 / M10x30 ISK
70F-25 / M10x30 ISK 25 9 3 24 M10 4 - 70F-25 / M10x40 ISK
70F-25 / M10x40 ISK 25 9 3 34 M10 4 - 70F-25 / M10x50 ISK
70F-25 / M10x50 ISK 25 9 3 44 M10 4 - 70F-25 / M10x60 ISK
70F-25 / M10x60 ISK 25 9 3 54 M10 4 - 70F-29 / M10x25 ISK
70F-29 / M10x25 ISK 29 10 3 19 M10 4 - 70F-29 / M10x30 ISK
70F-29 / M10x30 ISK 29 10 3 24 M10 4 - 70F-29 / M10x40 ISK
70F-29 / M10x40 ISK 29 10 3 34 M10 4 - 70F-29 / M10x50 ISK
70F-29 / M10x50 ISK 29 10 3 44 M10 4 - 70F-29 / M10x60 ISK
70F-29 / M10x60 ISK 29 10 3 54 M10 4 - 70F-32 / M10x25 ISK
70F-32 / M10x25 ISK 32 11 3 19 M10 4 - 70F-32 / M10x30 ISK
70F-32 / M10x30 ISK 32 11 3 24 M10 4 - 70F-32 / M10x40 ISK
70F-32 / M10x40 ISK 23 11 3 34 M10 4 - 70F-32 / M10x50 ISK
70F-32 / M10x50 ISK 32 11 3 44 M10 4 - 70F-32 / M10x60 ISK
70F-32 / M10x60 ISK 32 11 3 54 M10 4 - 70F-38 / M10x25 ISK
70F-38 / M10x25 ISK 38 12 3 19 M10 4 - 70F-38 / M10x30 ISK
70F-38 / M10x30 ISK 38 12 3 24 M10 4 - 70F-38 / M10x40 ISK
70F-38 / M10x40 ISK 38 12 3 34 M10 4 - 70F-38 / M10x50 ISK
70F-38 / M10x50 ISK 38 12 3 44 M10 4 - 70F-38 / M10x60 ISK
70F-38 / M10x60 ISK 38 12 3 54 M10 4 - 70F-44 / M10x25 ISK
70F-44 / M10x25 ISK 44 13 3 19 M10 4 - 70F-44 / M10x30 ISK
70F-44 / M10x30 ISK 44 13 3 24 M10 4 - 70F-44 / M10x40 ISK
70F-44 / M10x40 ISK 44 13 3 34 M10 4 - 70F-44 / M10x50 ISK
70F-44 / M10x50 ISK 44 13 3 44 M10 4 - 70F-44 / M10x60 ISK
70F-44 / M10x60 ISK 44 13 3 54 M10 4
Login to get price and discount information for all products.
Product variants
70
Adjusting screws with knurled plastic base made of PA and overmoulded threaded bolt
70 F
Adjusting screws with knurled plastic base made of PA, welded felt and overmoulded threaded bolt
70 ISK
Adjusting screws with knurled plastic base made of PA and hexagon inside the thread end, thread bolt overmoulded
