Adjustable foot - JTH ISK

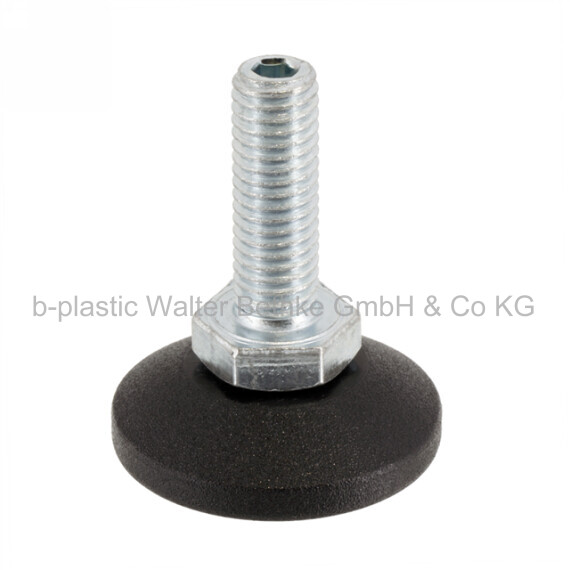

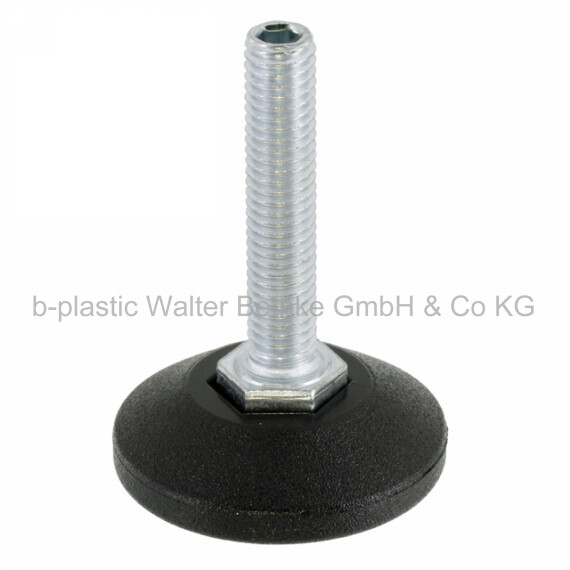

Adjustable feet made of PA with hexagonal adjusting screw and with hexagon in the thread end for ground plates of group JTH BF/TPE/GP
Configure your article. Enter multiple parameters to get the best result.

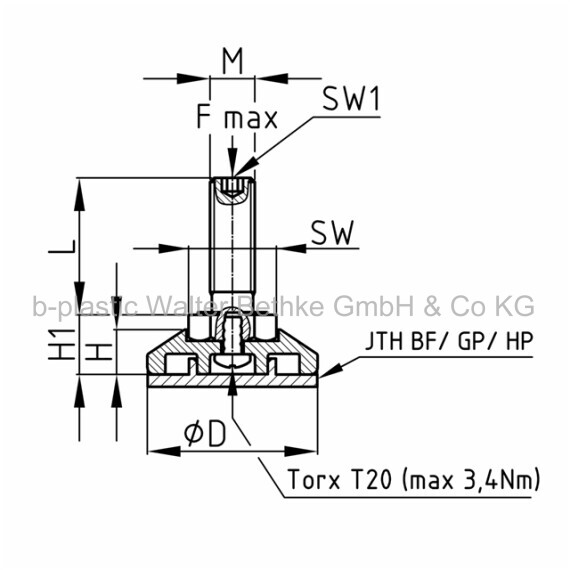

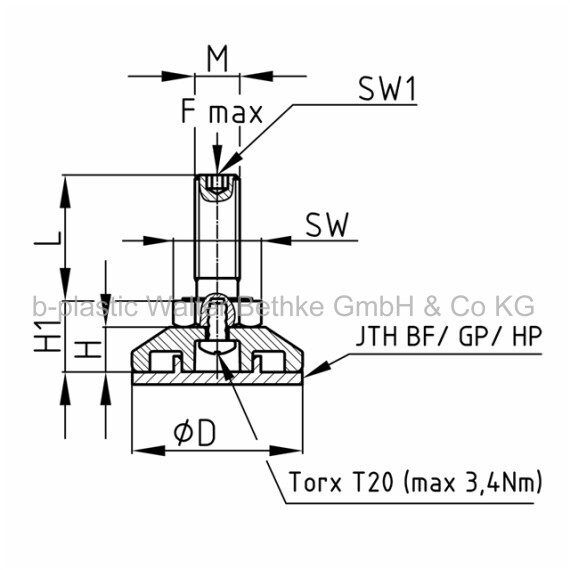

D in mm:
Type:
F max. in kg:
H in mm:
H1 in mm:
L in mm:
M:
WAF in mm:
SW1 in mm:
Your article results:
Order-No. D
mmType F max.
kgH
mmH1
mmL
mmM WAF
mmSW1
mm- JTH 38 A / M8x20 ISK
JTH 38 A / M8x20 ISK 38 A 400 10 13 20 M8 13 4 - JTH 38 A / M8x30 ISK
JTH 38 A / M8x30 ISK 38 A 400 10 13 30 M8 13 4 - JTH 38 A / M8x40 ISK
JTH 38 A / M8x40 ISK 38 A 400 10 13 40 M8 13 4 - JTH 38 A / M8x50 ISK
JTH 38 A / M8x50 ISK 38 A 400 10 13 50 M8 13 4 - JTH 38 A / M8x60 ISK
JTH 38 A / M8x60 ISK 38 A 400 10 13 60 M8 13 4 - JTH 38 A / M8x70 ISK
JTH 38 A / M8x70 ISK 38 A 400 10 13 70 M8 13 4 - JTH 38 A / M8x80 ISK
JTH 38 A / M8x80 ISK 38 A 400 10 13 80 M8 13 4 - JTH 38 A / M8x90 ISK
JTH 38 A / M8x90 ISK 38 A 400 10 13 90 M8 13 4 - JTH 38 A / M8x100 ISK
JTH 38 A / M8x100 ISK 38 A 400 10 13 100 M8 13 4 - JTH 38 A / M10x20 ISK
JTH 38 A / M10x20 ISK 38 A 550 10 14 20 M10 17 5 - JTH 38 A / M10x30 ISK
JTH 38 A / M10x30 ISK 38 A 550 10 14 30 M10 17 5 - JTH 38 A / M10x40 ISK
JTH 38 A / M10x40 ISK 38 A 550 10 14 40 M10 17 5 - JTH 38 A / M10x50 ISK
JTH 38 A / M10x50 ISK 38 A 550 10 14 50 M10 17 5 - JTH 38 A / M10x60 ISK
JTH 38 A / M10x60 ISK 38 A 550 10 14 60 M10 17 5 - JTH 38 A / M10x70 ISK
JTH 38 A / M10x70 ISK 38 A 550 10 14 70 M10 17 5 - JTH 38 A / M10x80 ISK
JTH 38 A / M10x80 ISK 38 A 550 10 14 80 M10 17 5 - JTH 38 A / M10x90 ISK
JTH 38 A / M10x90 ISK 38 A 550 10 14 90 M10 17 5 - JTH 38 A / M10x100 ISK
JTH 38 A / M10x100 ISK 38 A 550 10 14 100 M10 17 5 - JTH 38 A / M10x120 ISK
JTH 38 A / M10x120 ISK 38 A 550 10 14 120 M10 17 5 - JTH 38 B / M8x20 ISK
JTH 38 B / M8x20 ISK 38 B 400 10 15,5 20 M8 13 4 - JTH 38 B / M8x30 ISK
JTH 38 B / M8x30 ISK 38 B 400 10 15,5 30 M8 13 4 - JTH 38 B / M8x40 ISK
JTH 38 B / M8x40 ISK 38 B 400 10 15,5 40 M8 13 4 - JTH 38 B / M8x50 ISK
JTH 38 B / M8x50 ISK 38 B 400 10 15,5 50 M8 13 4 - JTH 38 B / M8x60 ISK
JTH 38 B / M8x60 ISK 38 B 400 10 15,5 60 M8 13 4 - JTH 38 B / M8x70 ISK
JTH 38 B / M8x70 ISK 38 B 400 10 15,5 70 M8 13 4 - JTH 38 B / M8x80 ISK
JTH 38 B / M8x80 ISK 38 B 400 10 15,5 80 M8 13 4 - JTH 38 B / M8x90 ISK
JTH 38 B / M8x90 ISK 38 B 400 10 15,5 90 M8 13 4 - JTH 38 B / M8x100 ISK
JTH 38 B / M8x100 ISK 38 B 400 10 15,5 100 M8 13 4 - JTH 38 B / M 8x 120 ISK
JTH 38 B / M 8x 120 ISK 38 B 400 10 15,5 120 M8 13 4 - JTH 38 B / M10x20 ISK
JTH 38 B / M10x20 ISK 38 B 550 10 16,5 20 M10 17 5 - JTH 38 B / M10x30 ISK
JTH 38 B / M10x30 ISK 38 B 550 10 16,5 30 M10 17 5 - JTH 38 B / M10x40 ISK
JTH 38 B / M10x40 ISK 38 B 550 10 16,5 40 M10 17 5 - JTH 38 B / M10x50 ISK
JTH 38 B / M10x50 ISK 38 B 550 10 16,5 50 M10 17 5 - JTH 38 B / M10x60 ISK
JTH 38 B / M10x60 ISK 38 B 550 10 16,5 60 M10 17 5 - JTH 38 B / M10x70 ISK
JTH 38 B / M10x70 ISK 38 B 550 10 16,5 70 M10 17 5 - JTH 38 B / M10x80 ISK
JTH 38 B / M10x80 ISK 38 B 550 10 16,5 80 M10 17 5 - JTH 38 B / M10x90 ISK
JTH 38 B / M10x90 ISK 38 B 550 10 16,5 90 M10 17 5 - JTH 38 B / M10x100 ISK
JTH 38 B / M10x100 ISK 38 B 550 10 16,5 100 M10 17 5 - JTH 48 A / M8x20 ISK
JTH 48 A / M8x20 ISK 48 A 400 10 13 20 M8 13 4 - JTH 48 A / M8x30 ISK
JTH 48 A / M8x30 ISK 48 A 400 10 13 30 M8 13 4 - JTH 48 A / M8x40 ISK
JTH 48 A / M8x40 ISK 48 A 400 10 13 40 M8 13 4 - JTH 48 A / M8x50 ISK
JTH 48 A / M8x50 ISK 48 A 400 10 13 50 M8 13 4 - JTH 48 A / M8x60 ISK
JTH 48 A / M8x60 ISK 48 A 400 10 13 60 M8 13 4 - JTH 48 A / M8x70 ISK *
JTH 48 A / M8x70 ISK * 48 A 400 10 13 70 M8 13 4 - JTH 48 A / M8x80 ISK
JTH 48 A / M8x80 ISK 48 A 400 10 13 80 M8 13 4 - JTH 48 A / M8x90 ISK
JTH 48 A / M8x90 ISK 48 A 400 10 13 90 M8 13 4 - JTH 48 A / M8x100 ISK
JTH 48 A / M8x100 ISK 48 A 400 10 13 100 M8 13 4 - JTH 48 A / M10x20 ISK
JTH 48 A / M10x20 ISK 48 A 550 10 14 20 M10 17 5 - JTH 48 A / M10x30 ISK
JTH 48 A / M10x30 ISK 48 A 550 10 14 30 M10 17 5 - JTH 48 A / M10x40 ISK
JTH 48 A / M10x40 ISK 48 A 550 10 14 40 M10 17 5 - JTH 48 A / M10x50 ISK
JTH 48 A / M10x50 ISK 48 A 550 10 14 50 M10 17 5 - JTH 48 A / M10x60 ISK
JTH 48 A / M10x60 ISK 48 A 550 10 14 60 M10 17 5 - JTH 48 A / M10x70 ISK
JTH 48 A / M10x70 ISK 48 A 550 10 14 70 M10 17 5 - JTH 48 A / M10x80 ISK
JTH 48 A / M10x80 ISK 48 A 550 10 14 80 M10 17 5 - JTH 48 A / M10x90 ISK
JTH 48 A / M10x90 ISK 48 A 550 10 14 90 M10 17 5 - JTH 48 A / M10x100 ISK
JTH 48 A / M10x100 ISK 48 A 550 10 14 100 M10 17 5 - JTH 48 B / M8x20 ISK
JTH 48 B / M8x20 ISK 48 B 400 10 15,5 20 M8 13 4 - JTH 48 B / M8x30 ISK
JTH 48 B / M8x30 ISK 48 B 400 10 15,5 30 M8 13 4 - JTH 48 B / M8x40 ISK
JTH 48 B / M8x40 ISK 48 B 400 10 15,5 40 M8 13 4 - JTH 48 B / M8x50 ISK
JTH 48 B / M8x50 ISK 48 B 400 10 15,5 50 M8 13 4 - JTH 48 B / M8x60 ISK
JTH 48 B / M8x60 ISK 48 B 400 10 15,5 60 M8 13 4 - JTH 48 B / M8x70 ISK
JTH 48 B / M8x70 ISK 48 B 400 10 15,5 70 M8 13 4 - JTH 48 B / M8x80 ISK
JTH 48 B / M8x80 ISK 48 B 400 10 15,5 80 M8 13 4 - JTH 48 B / M8x90 ISK
JTH 48 B / M8x90 ISK 48 B 400 10 15,5 90 M8 13 4 - JTH 48 B / M8x100 ISK
JTH 48 B / M8x100 ISK 48 B 400 10 15,5 100 M8 13 4 - JTH 48 B / M10x20 ISK
JTH 48 B / M10x20 ISK 48 B 550 10 16,5 20 M10 17 5 - JTH 48 B / M10x30 ISK
JTH 48 B / M10x30 ISK 48 B 550 10 16,5 30 M10 17 5 - JTH 48 B / M10x40 ISK
JTH 48 B / M10x40 ISK 48 B 550 10 16,5 40 M10 17 5 - JTH 48 B / M10x50 ISK
JTH 48 B / M10x50 ISK 48 B 550 10 16,5 50 M10 17 5 - JTH 48 B / M10x60 ISK
JTH 48 B / M10x60 ISK 48 B 550 10 16,5 60 M10 17 5 - JTH 48 B / M10x70 ISK
JTH 48 B / M10x70 ISK 48 B 550 10 16,5 70 M10 17 5 - JTH 48 B / M10x80 ISK
JTH 48 B / M10x80 ISK 48 B 550 10 16,5 80 M10 17 5 - JTH 48 B / M10x90 ISK
JTH 48 B / M10x90 ISK 48 B 550 10 16,5 90 M10 17 5 - JTH 48 B / M10x100 ISK
JTH 48 B / M10x100 ISK 48 B 550 10 16,5 100 M10 17 5 - JTH 48 B / M10x120 ISK
JTH 48 B / M10x120 ISK 48 B 550 10 16,5 120 M10 17 5 - JTH 58 B / M10x20 ISK
JTH 58 B / M10x20 ISK 58 B 550 10 16,5 20 M10 17 5 - JTH 58 B / M10x30 ISK
JTH 58 B / M10x30 ISK 58 B 550 10 16,5 30 M10 17 5 - JTH 58 B / M10x40 ISK
JTH 58 B / M10x40 ISK 58 B 550 10 16,5 40 M10 17 5 - JTH 58 B / M10x50 ISK
JTH 58 B / M10x50 ISK 58 B 550 10 16,5 50 M10 17 5 - JTH 58 B / M10x60 ISK
JTH 58 B / M10x60 ISK 58 B 550 10 16,5 60 M10 17 5 - JTH 58 B / M10x70 ISK
JTH 58 B / M10x70 ISK 58 B 550 10 16,5 70 M10 17 5 - JTH 58 B / M10x80 ISK
JTH 58 B / M10x80 ISK 58 B 550 10 16,5 80 M10 17 5 - JTH 58 B / M10x90 ISK
JTH 58 B / M10x90 ISK 58 B 550 10 16,5 90 M10 17 5 - JTH 58 B / M10x100 ISK
JTH 58 B / M10x100 ISK 58 B 550 10 16,5 100 M10 17 5
