Adjustable foot - JPR

Adjustable feet with hexagonal adjustment screw, swivel base

Your session has expired, please log in again.
JPR
JPR
JPR
JPR
PDF data sheet
  • Screw: DIN 558-4.6-A2F (zinc-plated)
  • Base 20/25mm: Polyamide (PA)
  • Base 30/40mm: Polypropylene (PP)
black RAL 9005
  • The feet must be adjusted unloaded.
  • The adjustable feet are not suitable as load gliders.
  • The load capacity of the screw (buckling length!) may be less than indicated in the table.

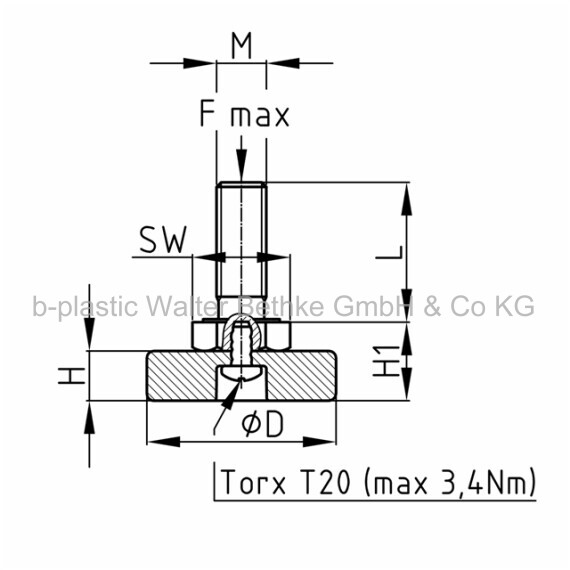

  • As mounting aid Torx T20 in the plate (max. torque 3.4 Nm)
  • * ) = Production with assembly aid Pozidriv 2 in the base (max. torque 3.4 Nm)
  • The applicability for automated assembly will be examined by the customer. In the case of standard delivery, there is no guarantee of suitability for automated assembly (range of torque, tolerance limits of thread and more).
  • Further thread lengths/sizes
  • Hexagon socket in thread end (please look at JPR ISK)
  • Plastic base in special colours according to RAL-System
