Adjustable foot - JTHE

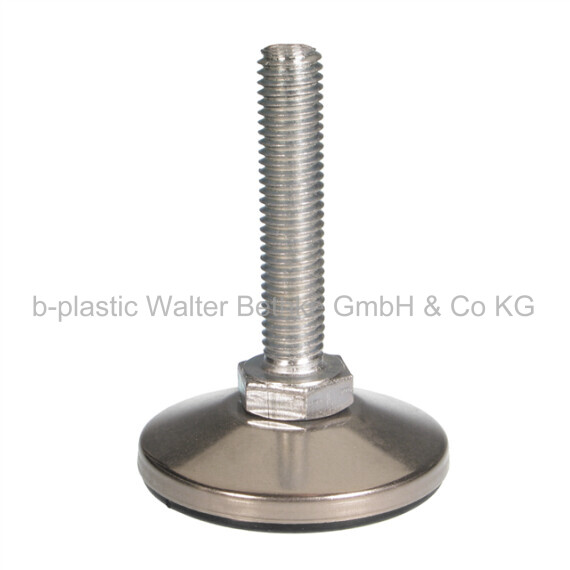

Adjustable feet made of PA with stainless steel cover and hexagonal adjusting screw, swivel base, for ground plates of group JTH BF/TPE/GP
Configure your article. Enter multiple parameters to get the best result.

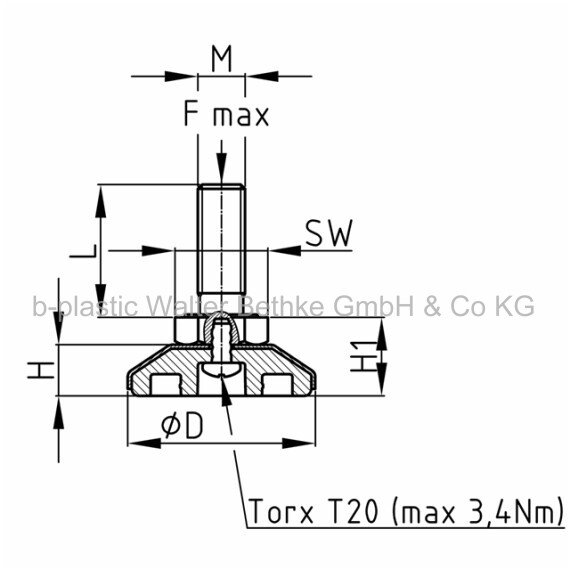

D in mm:
F max. in kg:
H in mm:
H1 in mm:
L in mm:
M:
WAF in mm:
Your article results:
Order-No. D
mmF max.
kgH
mmH1
mmL
mmM WAF
mm- JTHE 38 B / M8x16
JTHE 38 B / M8x16 38 400 13,5 20 16 M8 13 - JTHE 38 B / M8x20
JTHE 38 B / M8x20 38 400 13,5 20 20 M8 13 - JTHE 38 B / M8x30
JTHE 38 B / M8x30 38 400 13,5 20 30 M8 13 - JTHE 38 B / M8x40
JTHE 38 B / M8x40 38 400 13,5 20 40 M8 13 - JTHE 38 B / M8x50
JTHE 38 B / M8x50 38 400 13,5 20 50 M8 13 - JTHE 38 B / M8x60
JTHE 38 B / M8x60 38 400 13,5 20 60 M8 13 - JTHE 38 B / M8x70 *
JTHE 38 B / M8x70 * 38 400 13,5 20 70 M8 13 - JTHE 38 B / M8x80
JTHE 38 B / M8x80 38 400 13,5 20 80 M8 13 - JTHE 38 B / M8x90
JTHE 38 B / M8x90 38 400 13,5 20 90 M8 13 - JTHE 38 B / M8x100
JTHE 38 B / M8x100 38 400 13,5 20 100 M8 13 - JTHE 38 B / M8x120
JTHE 38 B / M8x120 38 400 13,5 20 120 M8 13 - JTHE 38 B / M10x16
JTHE 38 B / M10x16 38 550 13,5 22 16 M10 17 - JTHE 38 B / M10x20
JTHE 38 B / M10x20 38 550 13,5 22 20 M10 17 - JTHE 38 B / M10x30
JTHE 38 B / M10x30 38 550 13,5 22 30 M10 17 - JTHE 38 B / M10x40
JTHE 38 B / M10x40 38 550 13,5 22 40 M10 17 - JTHE 38 B / M10x50
JTHE 38 B / M10x50 38 550 13,5 22 50 M10 17 - JTHE 38 B / M10x60
JTHE 38 B / M10x60 38 550 13,5 22 60 M10 17 - JTHE 38 B / M10x70
JTHE 38 B / M10x70 38 550 13,5 22 70 M10 17 - JTHE 38 B / M10x80
JTHE 38 B / M10x80 38 550 13,5 22 80 M10 17 - JTHE 38 B / M10x90
JTHE 38 B / M10x90 38 550 13,5 22 90 M10 17 - JTHE 38 B / M10x100
JTHE 38 B / M10x100 38 550 13,5 22 100 M10 17 - JTHE 38 B / M10x120
JTHE 38 B / M10x120 38 550 13,5 22 120 M10 17 - JTHE 38 B / M12x30
JTHE 38 B / M12x30 38 650 13,5 24 30 M12 19 - JTHE 38 B / M12x40
JTHE 38 B / M12x40 38 650 13,5 24 40 M12 19 - JTHE 38 B / M12x50
JTHE 38 B / M12x50 38 650 13,5 24 50 M12 19 - JTHE 38 B / M12x60
JTHE 38 B / M12x60 38 650 13,5 24 60 M12 19 - JTHE 38 B / M12x70
JTHE 38 B / M12x70 38 650 13,5 24 70 M12 19 - JTHE 38 B / M12x80
JTHE 38 B / M12x80 38 650 13,5 24 80 M12 19 - JTHE 38 B / M12x90
JTHE 38 B / M12x90 38 650 13,5 24 90 M12 19 - JTHE 38 B / M12x100
JTHE 38 B / M12x100 38 650 13,5 24 100 M12 19 - JTHE 38 B / M12x120
JTHE 38 B / M12x120 38 650 13,5 24 120 M12 19 - JTHE 48 B / M8x16
JTHE 48 B / M8x16 48 400 13,5 20 16 M8 13 - JTHE 48 B / M8x20
JTHE 48 B / M8x20 48 400 13,5 20 20 M8 13 - JTHE 48 B / M8x30
JTHE 48 B / M8x30 48 400 13,5 20 30 M8 13 - JTHE 48 B / M8x40
JTHE 48 B / M8x40 48 400 13,5 20 40 M8 13 - JTHE 48 B / M8x50
JTHE 48 B / M8x50 48 400 13,5 20 50 M8 13 - JTHE 48 B / M8x60
JTHE 48 B / M8x60 48 400 13,5 20 60 M8 13 - JTHE 48 B / M8x70
JTHE 48 B / M8x70 48 400 13,5 20 70 M8 13 - JTHE 48 B / M8x80
JTHE 48 B / M8x80 48 400 13,5 20 80 M8 13 - JTHE 48 B / M8x90
JTHE 48 B / M8x90 48 400 13,5 20 90 M8 13 - JTHE 48 B / M8x100
JTHE 48 B / M8x100 48 400 13,5 20 100 M8 13 - JTHE 48 B / M8x120
JTHE 48 B / M8x120 48 400 13,5 20 120 M8 13 - JTHE 48 B / M10x16
JTHE 48 B / M10x16 48 550 13,5 22 16 M10 17 - JTHE 48 B / M10x20
JTHE 48 B / M10x20 48 550 13,5 22 20 M10 17 - JTHE 48 B / M10x30
JTHE 48 B / M10x30 48 550 13,5 22 30 M10 17 - JTHE 48 B / M10x40
JTHE 48 B / M10x40 48 550 13,5 22 40 M10 17 - JTHE 48 B / M10x50
JTHE 48 B / M10x50 48 550 13,5 22 50 M10 17 - JTHE 48 B / M10x60
JTHE 48 B / M10x60 48 550 13,5 22 60 M10 17 - JTHE 48 B / M10x70
JTHE 48 B / M10x70 48 550 13,5 22 70 M10 17 - JTHE 48 B / M10x80
JTHE 48 B / M10x80 48 550 13,5 22 80 M10 17 - JTHE 48 B / M10x90
JTHE 48 B / M10x90 48 550 13,5 22 90 M10 17 - JTHE 48 B / M10x100
JTHE 48 B / M10x100 48 550 13,5 22 100 M10 17 - JTHE 48 B / M10x120
JTHE 48 B / M10x120 48 550 13,5 22 120 M10 17 - JTHE 48 B / M12x30
JTHE 48 B / M12x30 48 650 13,5 24 30 M12 19 - JTHE 48 B / M12x40
JTHE 48 B / M12x40 48 650 13,5 24 40 M12 19 - JTHE 48 B / M12x50
JTHE 48 B / M12x50 48 650 13,5 24 50 M12 19 - JTHE 48 B / M12x60
JTHE 48 B / M12x60 48 650 13,5 24 60 M12 19 - JTHE 48 B / M12x70
JTHE 48 B / M12x70 48 650 13,5 24 70 M12 19 - JTHE 48 B / M12x80
JTHE 48 B / M12x80 48 650 13,5 24 80 M12 19 - JTHE 48 B / M12x90
JTHE 48 B / M12x90 48 650 13,5 24 90 M12 19 - JTHE 48 B / M12x100
JTHE 48 B / M12x100 48 650 13,5 24 100 M12 19 - JTHE 48 B / M12x120
JTHE 48 B / M12x120 48 650 13,5 24 120 M12 19
