Adjustable foot - JTHE ISK

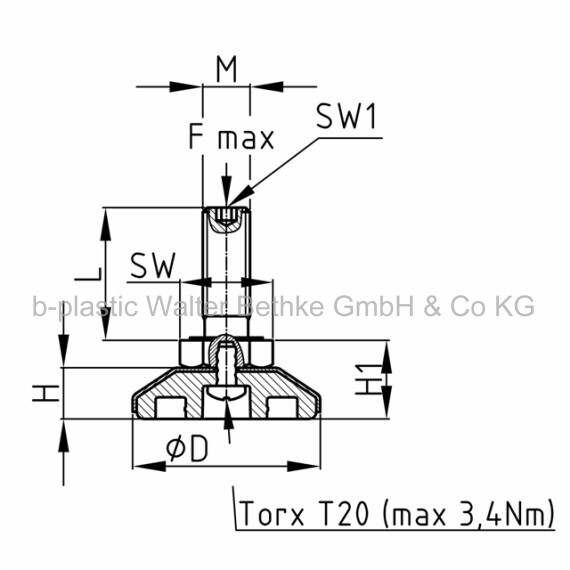

Adjustable feet made of PA with stainless steel cover and hexagonal adjusting screw with hexagon in the thread end, swivel base, for ground plates of group JTHBF/TPE/GF
Configure your article. Enter multiple parameters to get the best result.
D in mm:
F max. in kg:
H in mm:
H1 in mm:
L in mm:
M:
WAF in mm:
SW1 in mm:
Your article results:
Order-No. D
mmF max.
kgH
mmH1
mmL
mmM WAF
mmSW1
mm- JTHE 38 B / M8x20 ISK
JTHE 38 B / M8x20 ISK 38 400 13,5 20 20 M8 13 4 - JTHE 38 B / M8x30 ISK
JTHE 38 B / M8x30 ISK 38 400 13,5 20 30 M8 13 4 - JTHE 38 B / M8x40 ISK
JTHE 38 B / M8x40 ISK 38 400 13,5 20 40 M8 13 4 - JTHE 38 B / M8x50 ISK
JTHE 38 B / M8x50 ISK 38 400 13,5 20 50 M8 13 4 - JTHE 38 B / M8x60 ISK
JTHE 38 B / M8x60 ISK 38 400 13,5 20 60 M8 13 4 - JTHE 38 B / M8x70 ISK
JTHE 38 B / M8x70 ISK 38 400 13,5 20 70 M8 13 4 - JTHE 38 B / M8x80 ISK
JTHE 38 B / M8x80 ISK 38 400 13,5 20 80 M8 13 4 - JTHE 38 B / M8x90 ISK
JTHE 38 B / M8x90 ISK 38 400 13,5 20 90 M8 13 4 - JTHE 38 B / M8x100 ISK
JTHE 38 B / M8x100 ISK 38 400 13,5 20 100 M8 13 4 - JTHE 38 B / M10x20 ISK
JTHE 38 B / M10x20 ISK 38 550 13,5 22 20 M10 17 5 - JTHE 38 B / M10x30 ISK
JTHE 38 B / M10x30 ISK 38 550 13,5 22 30 M10 17 5 - JTHE 38 B / M10x40 ISK
JTHE 38 B / M10x40 ISK 38 550 13,5 22 40 M10 17 5 - JTHE 38 B / M10x50 ISK
JTHE 38 B / M10x50 ISK 38 550 13,5 22 50 M10 17 5 - JTHE 38 B / M10x60 ISK
JTHE 38 B / M10x60 ISK 38 550 13,5 22 60 M10 17 5 - JTHE 38 B / M10x70 ISK
JTHE 38 B / M10x70 ISK 38 550 13,5 22 70 M10 17 5 - JTHE 38 B / M10x80 ISK
JTHE 38 B / M10x80 ISK 38 550 13,5 22 80 M10 17 5 - JTHE 38 B / M10x90 ISK
JTHE 38 B / M10x90 ISK 38 550 13,5 22 90 M10 17 5 - JTHE 38 B / M10x100 ISK
JTHE 38 B / M10x100 ISK 38 550 13,5 22 100 M10 17 5 - JTHE 48 B / M8x20 ISK
JTHE 48 B / M8x20 ISK 48 400 13,5 20 20 M8 13 4 - JTHE 48 B / M8x30 ISK
JTHE 48 B / M8x30 ISK 48 400 13,5 20 30 M8 13 4 - JTHE 48 B / M8x40 ISK
JTHE 48 B / M8x40 ISK 48 400 13,5 20 40 M8 13 4 - JTHE 48 B / M8x50 ISK
JTHE 48 B / M8x50 ISK 48 400 13,5 20 50 M8 13 4 - JTHE 48 B / M8x60 ISK
JTHE 48 B / M8x60 ISK 48 400 13,5 20 60 M8 13 4 - JTHE 48 B / M8x70 ISK
JTHE 48 B / M8x70 ISK 48 400 13,5 20 70 M8 13 4 - JTHE 48 B / M8x80 ISK
JTHE 48 B / M8x80 ISK 48 400 13,5 20 80 M8 13 4 - JTHE 48 B / M8x90 ISK
JTHE 48 B / M8x90 ISK 48 400 13,5 20 90 M8 13 4 - JTHE 48 B / M8x100 ISK
JTHE 48 B / M8x100 ISK 48 400 13,5 20 100 M8 13 4 - JTHE 48 B / M10x20 ISK
JTHE 48 B / M10x20 ISK 48 550 13,5 22 20 M10 17 5 - JTHE 48 B / M10x30 ISK
JTHE 48 B / M10x30 ISK 48 550 13,5 22 30 M10 17 5 - JTHE 48 B / M10x40 ISK
JTHE 48 B / M10x40 ISK 48 550 13,5 22 40 M10 17 5 - JTHE 48 B / M10x50 ISK
JTHE 48 B / M10x50 ISK 48 550 13,5 22 50 M10 17 5 - JTHE 48 B / M10x60 ISK
JTHE 48 B / M10x60 ISK 48 550 13,5 22 60 M10 17 5 - JTHE 48 B / M10x70 ISK
JTHE 48 B / M10x70 ISK 48 550 13,5 22 70 M10 17 5 - JTHE 48 B / M10x80 ISK
JTHE 48 B / M10x80 ISK 48 550 13,5 22 80 M10 17 5 - JTHE 48 B / M10x90 ISK
JTHE 48 B / M10x90 ISK 48 550 13,5 22 90 M10 17 5 - JTHE 48 B / M10x100 ISK
JTHE 48 B / M10x100 ISK 48 550 13,5 22 100 M10 17 5
