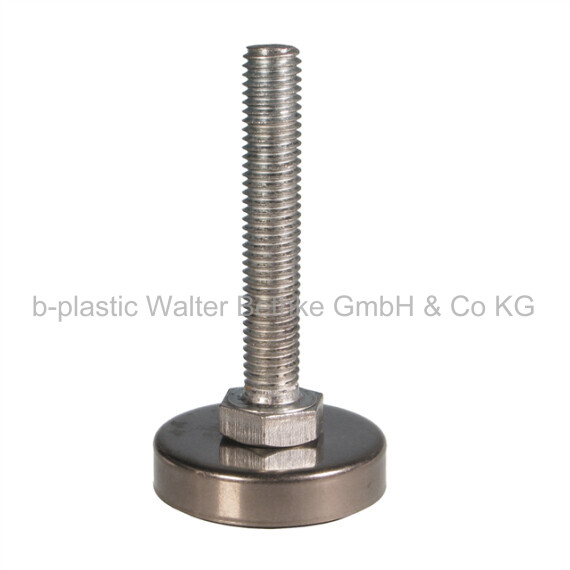

Adjustable foot - JPRE

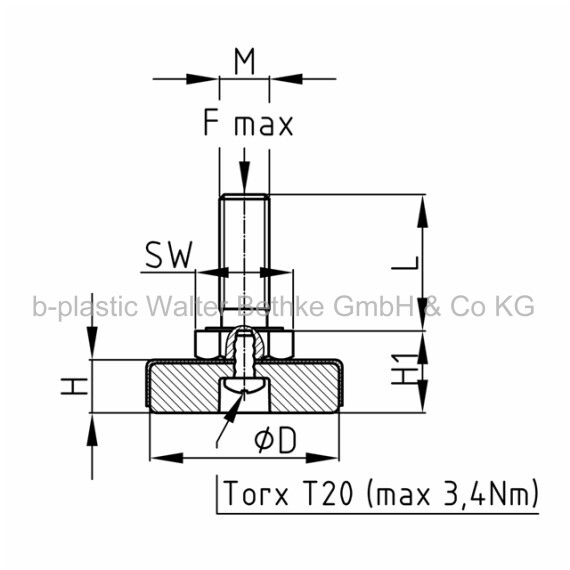

Adjustable feet with stainless steel cover and hexagonal adjusting screw, swivel base
Configure your article. Enter multiple parameters to get the best result.
D in mm:
F max. in kg:
H in mm:
H1 in mm:
L in mm:
M:
WAF in mm:
Your article results:
Order-No. D
mmF max.
kgH
mmH1
mmL
mmM WAF
mm- JPRE 30 / M8x16
JPRE 30 / M8x16 30 400 10 16 16 M8 13 - JPRE 30 / M8x20
JPRE 30 / M8x20 30 400 10 16 20 M8 13 - JPRE 30 / M8x30
JPRE 30 / M8x30 30 400 10 16 30 M8 13 - JPRE 30 / M8x40 *
JPRE 30 / M8x40 * 30 400 10 16 40 M8 13 - JPRE 30 / M8x50
JPRE 30 / M8x50 30 400 10 16 50 M8 13 - JPRE 30 / M8x60
JPRE 30 / M8x60 30 400 10 16 60 M8 13 - JPRE 30 / M8x70
JPRE 30 / M8x70 30 400 10 16 70 M8 13 - JPRE 30 / M8x80
JPRE 30 / M8x80 30 400 10 16 80 M8 13 - JPRE 30 / M8x90
JPRE 30 / M8x90 30 400 10 16 90 M8 13 - JPRE 30 / M8x100
JPRE 30 / M8x100 30 400 10 16 100 M8 13 - JPRE 30 / M8x120
JPRE 30 / M8x120 30 400 10 16 120 M8 13 - JPRE 30 / M10x16
JPRE 30 / M10x16 30 550 10 17,5 16 M10 17 - JPRE 30 / M10x20
JPRE 30 / M10x20 30 550 10 17,5 20 M10 17 - JPRE 30 / M10x30
JPRE 30 / M10x30 30 550 10 17,5 30 M10 17 - JPRE 30 / M10x40
JPRE 30 / M10x40 30 550 10 17,5 40 M10 17 - JPRE 30 / M10x50
JPRE 30 / M10x50 30 550 10 17,5 50 M10 17 - JPRE 30 / M10x60
JPRE 30 / M10x60 30 550 10 17,5 60 M10 17 - JPRE 30 / M10x70
JPRE 30 / M10x70 30 550 10 17,5 70 M10 17 - JPRE 30 / M10x80
JPRE 30 / M10x80 30 550 10 17,5 80 M10 17 - JPRE 30 / M10x90
JPRE 30 / M10x90 30 550 10 17,5 90 M10 17 - JPRE 30 / M10x100
JPRE 30 / M10x100 30 550 10 17,5 100 M10 17 - JPRE 30 / M10x120
JPRE 30 / M10x120 30 550 10 17,5 120 M10 17 - JPRE 30 / M12x30
JPRE 30 / M12x30 30 650 10 18,5 30 M12 19 - JPRE 30 / M12x40
JPRE 30 / M12x40 30 650 10 18,5 40 M12 19 - JPRE 30 / M12x50
JPRE 30 / M12x50 30 650 10 18,5 50 M12 19 - JPRE 30 / M12x60
JPRE 30 / M12x60 30 650 10 18,5 60 M12 19 - JPRE 30 / M12x70
JPRE 30 / M12x70 30 650 10 18,5 70 M12 19 - JPRE 30 / M12x80
JPRE 30 / M12x80 30 650 10 18,5 80 M12 19 - JPRE 30 / M12x90
JPRE 30 / M12x90 30 650 10 18,5 90 M12 19 - JPRE 30 / M12x100
JPRE 30 / M12x100 30 650 10 18,5 100 M12 19 - JPRE 30 / M12x120
JPRE 30 / M12x120 30 650 10 18,5 120 M12 19 - JPRE 40 / M8x16
JPRE 40 / M8x16 40 400 10 16 16 M8 13 - JPRE 40 / M8x20
JPRE 40 / M8x20 40 400 10 16 20 M8 13 - JPRE 40 / M8x30
JPRE 40 / M8x30 40 400 10 16 30 M8 13 - JPRE 40 / M8x40
JPRE 40 / M8x40 40 400 10 16 40 M8 13 - JPRE 40 / M8x50
JPRE 40 / M8x50 40 400 10 16 50 M8 13 - JPRE 40 / M8x60
JPRE 40 / M8x60 40 400 10 16 60 M8 13 - JPRE 40 / M8x70
JPRE 40 / M8x70 40 400 10 16 70 M8 13 - JPRE 40 / M8x80
JPRE 40 / M8x80 40 400 10 16 80 M8 13 - JPRE 40 / M8x90
JPRE 40 / M8x90 40 400 10 16 90 M8 13 - JPRE 40 / M8x100
JPRE 40 / M8x100 40 400 10 16 100 M8 13 - JPRE 40 / M8x120
JPRE 40 / M8x120 40 400 10 16 120 M8 13 - JPRE 40 / M10x16
JPRE 40 / M10x16 40 550 10 17,5 16 M10 17 - JPRE 40 / M10x20
JPRE 40 / M10x20 40 550 10 17,5 20 M10 17 - JPRE 40 / M10x30
JPRE 40 / M10x30 40 550 10 17,5 30 M10 17 - JPRE 40 / M10x40
JPRE 40 / M10x40 40 550 10 17,5 40 M10 17 - JPRE 40 / M10x50
JPRE 40 / M10x50 40 550 10 17,5 50 M10 17 - JPRE 40 / M10x60
JPRE 40 / M10x60 40 550 10 17,5 60 M10 17 - JPRE 40 / M10x70
JPRE 40 / M10x70 40 550 10 17,5 70 M10 17 - JPRE 40 / M10x80
JPRE 40 / M10x80 40 550 10 17,5 80 M10 17 - JPRE 40 / M10x90
JPRE 40 / M10x90 40 550 10 17,5 90 M10 17 - JPRE 40 / M10x100
JPRE 40 / M10x100 40 550 10 17,5 100 M10 17 - JPRE 40 / M10x120
JPRE 40 / M10x120 40 550 10 17,5 120 M10 17 - JPRE 40 / M12x30
JPRE 40 / M12x30 40 650 10 18 30 M12 19 - JPRE 40 / M12x40
JPRE 40 / M12x40 40 650 10 18 40 M12 19 - JPRE 40 / M12x50
JPRE 40 / M12x50 40 650 10 18 50 M12 19 - JPRE 40 / M12x60
JPRE 40 / M12x60 40 650 10 18 60 M12 19 - JPRE 40 / M12x70
JPRE 40 / M12x70 40 650 10 18 70 M12 19 - JPRE 40 / M12x80
JPRE 40 / M12x80 40 650 10 18 80 M12 19 - JPRE 40 / M12x90
JPRE 40 / M12x90 40 650 10 18 90 M12 19 - JPRE 40 / M12x100
JPRE 40 / M12x100 40 650 10 18 100 M12 19 - JPRE 40 / M12x120
JPRE 40 / M12x120 40 650 10 18 120 M12 19
