Adjustable foot - PRG

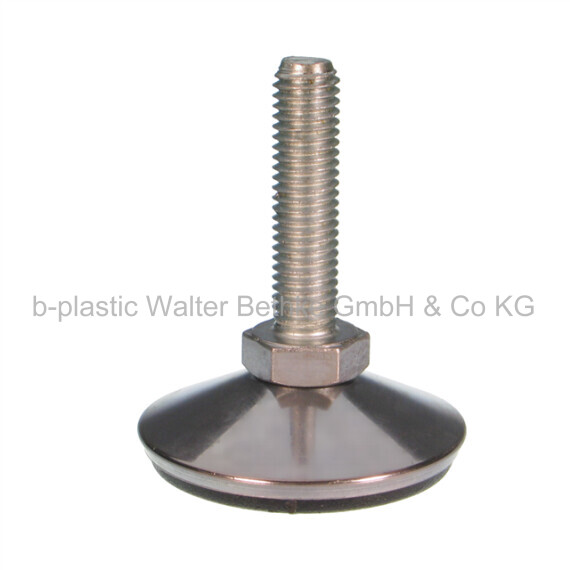

Adjustable feet made of PE with nickel-coloured metal cover and hexagonal adjusting screw, swivel base
Configure your article. Enter multiple parameters to get the best result.

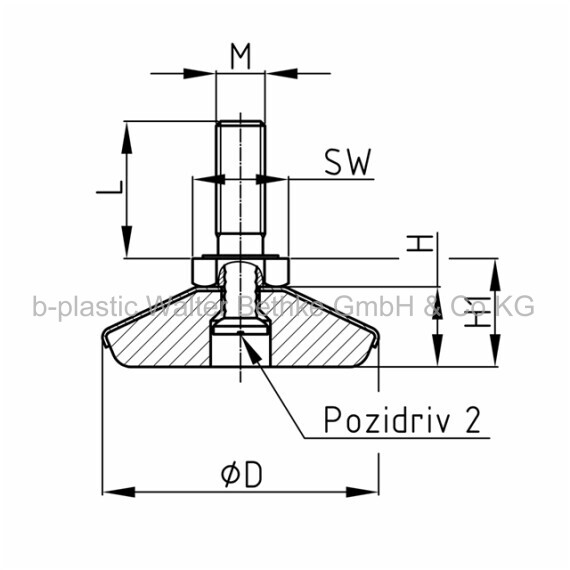

D in mm:
H in mm:
H1 in mm:
L in mm:
M:
WAF in mm:
Your article results:
Order-No. D
mmH
mmH1
mmL
mmM WAF
mm- PRG 40 / M10x40
PRG 40 / M10x40 40 11,5 18 40 M10 17 - PRG 40 / M10x60
PRG 40 / M10x60 40 11,5 18 60 M10 17 - PRG 50 / M10x40
PRG 50 / M10x40 50 13 20 40 M10 17 - PRG 50 / M10x60
PRG 50 / M10x60 50 13 20 60 M10 17
Login to get price and discount information for all products.
Product variants
Accessories
RG
Threaded plugs made of PA for round tubes with injected plastic thread
IRAF
Threaded plugs made of PP for round tubes with injection moulded plastic thread
RGM
Threaded plugs, two-piece, for round tubes with inserted steel thread
R 40
Threaded plugs made of PA for round tubes with overmoulded steel thread
RGML
Threaded plugs made of PA for round tubes with overmoulded steel thread
VG
Threaded plugs made of PA for square tubes with injected plastic thread
QAF
Threaded plugs made of PP for square tubes with injection moulded plastic thread
RAF
Threaded plugs made of PP for rectangular tubes with injection moulded plastic thread
VGM
Threaded plugs, two-piece, made of PA for square tubes with an inserted steel thread
40
Threaded plugs made of PA for square tubes with overmoulded steel thread
CG
Threaded plugs made of PE for square tubes with short overmoulded threaded nut
CGM
Threaded plugs made of PE for square tubes with long overmoulded threaded nut
J
Threaded plugs made of PE for square tubes with overmoulded threaded nut
OG
Threaded plugs made of PA for flat oval tubes with injected high nut
EBRU
Assembled expander plugs with collar made of PA for round tubes for hexagon nuts or screws
EBRUMH
Assembled expander plugs with collar made of PA for round tubes with one hexagon nut (rear)
EBRUMV
Assembled expander plugs with collar made of PA for round tubes with one hexagon nut (in the front)
EBRUM2
Assembled expander plugs with collar made of PA for round tubes with two hexagon nuts
RGMM
Threaded plugs made of PA for round tubes with nickel-plated brass thread
RGMS
Threaded plugs made of PA for round tubes with stainless steel thread
VGMM
Threaded plugs made of PA-GF for square tubes with nickel-plated brass thread
VGMS
Threaded plugs made of PA-GF for square tubes with stainless steel thread
ZN/RU
Threaded plugs of die-cast zinc for round tubes
ZN/Q
Threaded plugs of die-cast zinc for square tubes
ZN/RE
Threaded plugs of die-cast zinc for rectangular tubes
ZN/OV
Threaded plugs of die-cast zinc for oval tubes
