Adjustable foot - JTM

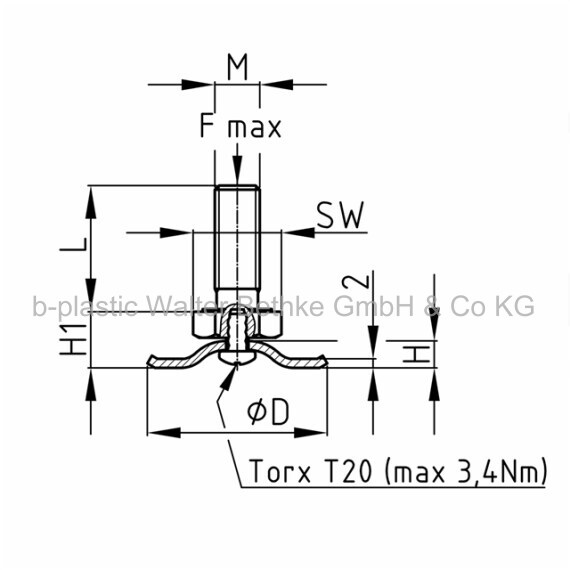

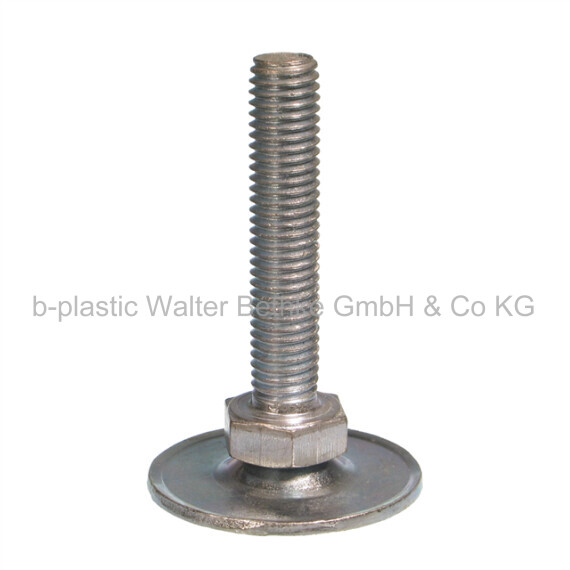

Adjustable feet made of galvanised steel with hexagonal adjustment screw, swivel base
Configure your article. Enter multiple parameters to get the best result.
D in mm:
F max. in kg:
A in mm:
d in mm:
H in mm:
H1 in mm:
L in mm:
M:
WAF in mm:
Your article results:
Order-No. D
mmF max.
kgA
mmd
mmH
mmH1
mmL
mmM WAF
mm- JTM 30 / M8x16
JTM 30 / M8x16 30 650 6 11,5 16 M8 13 - JTM 30 / M8x20
JTM 30 / M8x20 30 650 6 11,5 20 M8 13 - JTM 30 / M8x30
JTM 30 / M8x30 30 650 6 11,5 30 M8 13 - JTM 30 / M8x40
JTM 30 / M8x40 30 650 6 11,5 40 M8 13 - JTM 30 / M8x50
JTM 30 / M8x50 30 650 6 11,5 50 M8 13 - JTM 30 / M8x60
JTM 30 / M8x60 30 650 6 11,5 60 M8 13 - JTM 30 / M8x70
JTM 30 / M8x70 30 650 6 11,5 70 M8 13 - JTM 30 / M8x80
JTM 30 / M8x80 30 650 6 11,5 80 M8 13 - JTM 30 / M8x90
JTM 30 / M8x90 30 650 6 11,5 90 M8 13 - JTM 30 / M8x100
JTM 30 / M8x100 30 650 6 11,5 100 M8 13 - JTM 30 / M8x120
JTM 30 / M8x120 30 650 6 11,5 120 M8 13 - JTM 30 / M10x16
JTM 30 / M10x16 30 650 6 12,5 16 M10 17 - JTM 30 / M10x20
JTM 30 / M10x20 30 650 6 12,5 20 M10 17 - JTM 30 / M10x30
JTM 30 / M10x30 30 650 6 12,5 30 M10 17 - JTM 30 / M10x40
JTM 30 / M10x40 30 650 6 12,5 40 M10 17 - JTM 30 / M10x50
JTM 30 / M10x50 30 650 6 12,5 50 M10 17 - JTM 30 / M10x60
JTM 30 / M10x60 30 650 6 12,5 60 M10 17 - JTM 30 / M10x70
JTM 30 / M10x70 30 650 6 12,5 70 M10 17 - JTM 30 / M10x80
JTM 30 / M10x80 30 650 6 12,5 80 M10 17 - JTM 30 / M10x90
JTM 30 / M10x90 30 650 6 12,5 90 M10 17 - JTM 30 / M10x100
JTM 30 / M10x100 30 650 6 12,5 100 M10 17 - JTM 30 / M10x120
JTM 30 / M10x120 30 650 6 12,5 120 M10 17 - JTM 40 / M8x16
JTM 40 / M8x16 40 650 6 11,5 16 M8 13 - JTM 40 / M8x20
JTM 40 / M8x20 40 650 6 11,5 20 M8 13 - JTM 40 / M8x30
JTM 40 / M8x30 40 650 6 11,5 30 M8 13 - JTM 40 / M8x40
JTM 40 / M8x40 40 650 6 11,5 40 M8 13 - JTM 40 / M8x50
JTM 40 / M8x50 40 650 6 11,5 50 M8 13 - JTM 40 / M8x60
JTM 40 / M8x60 40 650 6 11,5 60 M8 13 - JTM 40 / M8x70
JTM 40 / M8x70 40 650 6 11,5 70 M8 13 - JTM 40 / M8x80
JTM 40 / M8x80 40 650 6 11,5 80 M8 13 - JTM 40 / M8x90
JTM 40 / M8x90 40 650 6 11,5 90 M8 13 - JTM 40 / M8x100
JTM 40 / M8x100 40 650 6 11,5 100 M8 13 - JTM 40 / M8x120
JTM 40 / M8x120 40 650 6 11,5 120 M8 13 - JTM 40 / M10x16
JTM 40 / M10x16 40 650 6 12,5 16 M10 17 - JTM 40 / M10x20
JTM 40 / M10x20 40 650 6 12,5 20 M10 17 - JTM 40 / M10x30
JTM 40 / M10x30 40 650 6 12,5 30 M10 17 - JTM 40 / M10x40
JTM 40 / M10x40 40 650 6 12,5 40 M10 17 - JTM 40 / M10x50
JTM 40 / M10x50 40 650 6 12,5 50 M10 17 - JTM 40 / M10x60
JTM 40 / M10x60 40 650 6 12,5 60 M10 17 - JTM 40 / M10x70
JTM 40 / M10x70 40 650 6 12,5 70 M10 17 - JTM 40 / M10x80
JTM 40 / M10x80 40 650 6 12,5 80 M10 17 - JTM 40 / M10x90
JTM 40 / M10x90 40 650 6 12,5 90 M10 17 - JTM 40 / M10x100
JTM 40 / M10x100 40 650 6 12,5 100 M10 17 - JTM 40 / M10x120
JTM 40 / M10x120 40 650 6 12,5 120 M10 17 - JTM 50 / M8x16
JTM 50 / M8x16 50 650 6 11,5 16 M8 13 - JTM 50 / M8x20
JTM 50 / M8x20 50 650 6 11,5 20 M8 13 - JTM 50 / M8x30
JTM 50 / M8x30 50 650 6 11,5 30 M8 13 - JTM 50 / M8x40
JTM 50 / M8x40 50 650 6 11,5 40 M8 13 - JTM 50 / M8x50
JTM 50 / M8x50 50 650 6 11,5 50 M8 13 - JTM 50 / M8x60
JTM 50 / M8x60 50 650 6 11,5 60 M8 13 - JTM 50 / M8x70
JTM 50 / M8x70 50 650 6 11,5 70 M8 13 - JTM 50 / M8x80
JTM 50 / M8x80 50 650 6 11,5 80 M8 13 - JTM 50 / M8x90
JTM 50 / M8x90 50 650 6 11,5 90 M8 13 - JTM 50 / M8x100
JTM 50 / M8x100 50 650 6 11,5 100 M8 13 - JTM 50 / M8x120
JTM 50 / M8x120 50 650 6 11,5 120 M8 13 - JTM 50 / M10x16
JTM 50 / M10x16 50 650 6 12,5 16 M10 17 - JTM 50 / M10x20
JTM 50 / M10x20 50 650 6 12,5 20 M10 17 - JTM 50 / M10x30
JTM 50 / M10x30 50 650 6 12,5 30 M10 17 - JTM 50 / M10x40
JTM 50 / M10x40 50 650 6 12,5 40 M10 17 - JTM 50 / M10x50
JTM 50 / M10x50 50 650 6 12,5 50 M10 17 - JTM 50 / M10x60
JTM 50 / M10x60 50 650 6 12,5 60 M10 17 - JTM 50 / M10x70
JTM 50 / M10x70 50 650 6 12,5 70 M10 17 - JTM 50 / M10x80
JTM 50 / M10x80 50 650 6 12,5 80 M10 17 - JTM 50 / M10x90
JTM 50 / M10x90 50 650 6 12,5 90 M10 17 - JTM 50 / M10x100
JTM 50 / M10x100 50 650 6 12,5 100 M10 17 - JTM 50 / M10x120
JTM 50 / M10x120 50 650 6 12,5 120 M10 17 - JTMB 40 / M8x16

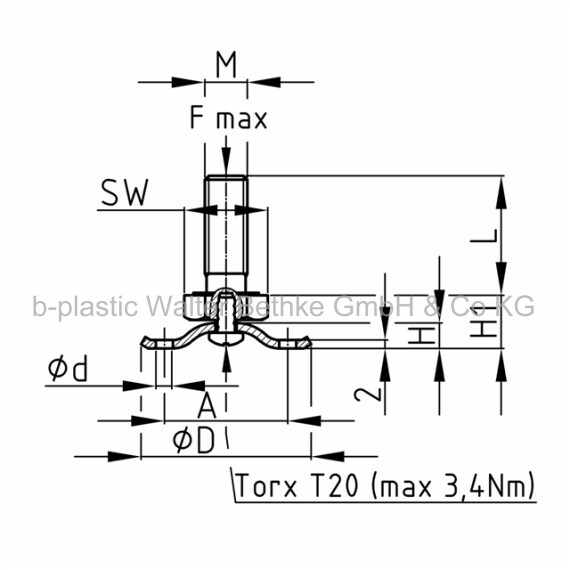

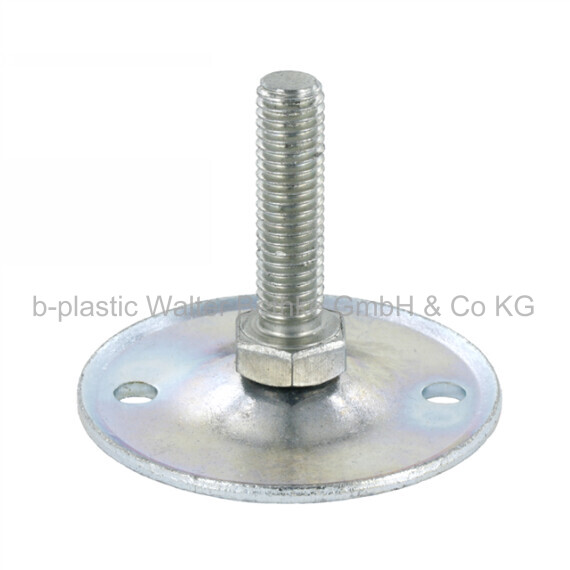

JTMB 40 / M8x16 40 650 29 4 6 11,5 16 M8 13 - JTMB 40 / M8x20
JTMB 40 / M8x20 40 650 29 4 6 11,5 20 M8 13 - JTMB 40 / M8x30
JTMB 40 / M8x30 40 650 29 4 6 11,5 30 M8 13 - JTMB 40 / M8x40
JTMB 40 / M8x40 40 650 29 4 6 11,5 40 M8 13 - JTMB 40 / M8x50
JTMB 40 / M8x50 40 650 29 4 6 11,5 50 M8 13 - JTMB 40 / M8x60
JTMB 40 / M8x60 40 650 29 4 6 11,5 60 M8 13 - JTMB 40 / M8x70
JTMB 40 / M8x70 40 650 29 4 6 11,5 70 M8 13 - JTMB 40 / M8x80
JTMB 40 / M8x80 40 650 29 4 6 11,5 80 M8 13 - JTMB 40 / M8x90
JTMB 40 / M8x90 40 650 29 4 6 11,5 90 M8 13 - JTMB 40 / M8x100
JTMB 40 / M8x100 40 650 29 4 6 11,5 100 M8 13 - JTMB 40 / M8x120
JTMB 40 / M8x120 40 650 29 4 6 11,5 120 M8 13 - JTMB 40 / M10x16
JTMB 40 / M10x16 40 650 29 4 6 12,5 16 M10 17 - JTMB 40 / M10x20
JTMB 40 / M10x20 40 650 29 4 6 12,5 20 M10 17 - JTMB 40 / M10x30
JTMB 40 / M10x30 40 650 29 4 6 12,5 30 M10 17 - JTMB 40 / M10x40
JTMB 40 / M10x40 40 650 29 4 6 12,5 40 M10 17 - JTMB 40 / M10x50
JTMB 40 / M10x50 40 650 29 4 6 12,5 50 M10 17 - JTMB 40 / M10x60
JTMB 40 / M10x60 40 650 29 4 6 12,5 60 M10 17 - JTMB 40 / M10x70
JTMB 40 / M10x70 40 650 29 4 6 12,5 70 M10 17 - JTMB 40 / M10x80
JTMB 40 / M10x80 40 650 29 4 6 12,5 80 M10 17 - JTMB 40 / M10x90
JTMB 40 / M10x90 40 650 29 4 6 12,5 90 M10 17 - JTMB 40 / M10x100
JTMB 40 / M10x100 40 650 29 4 6 12,5 100 M10 17 - JTMB 40 / M10x120
JTMB 40 / M10x120 40 650 29 4 6 12,5 120 M10 17 - JTMB 50 / M8x16
JTMB 50 / M8x16 50 650 36 5 6 11,5 16 M8 13 - JTMB 50 / M8x20
JTMB 50 / M8x20 50 650 36 5 6 11,5 20 M8 13 - JTMB 50 / M8x30
JTMB 50 / M8x30 50 650 36 5 6 11,5 30 M8 13 - JTMB 50 / M8x40
JTMB 50 / M8x40 50 650 36 5 6 11,5 40 M8 13 - JTMB 50 / M8x50
JTMB 50 / M8x50 50 650 36 5 6 11,5 50 M8 13 - JTMB 50 / M8x60
JTMB 50 / M8x60 50 650 36 5 6 11,5 60 M8 13 - JTMB 50 / M8x70
JTMB 50 / M8x70 50 650 36 5 6 11,5 70 M8 13 - JTMB 50 / M8x80
JTMB 50 / M8x80 50 650 36 5 6 11,5 80 M8 13 - JTMB 50 / M8x90
JTMB 50 / M8x90 50 650 36 5 6 11,5 90 M8 13 - JTMB 50 / M8x100
JTMB 50 / M8x100 50 650 36 5 6 11,5 100 M8 13 - JTMB 50 / M8x120
JTMB 50 / M8x120 50 650 36 5 6 11,5 120 M8 13 - JTMB 50 / M10x16
JTMB 50 / M10x16 50 650 36 5 6 12,5 16 M10 17 - JTMB 50 / M10x20
JTMB 50 / M10x20 50 650 36 5 6 12,5 20 M10 17 - JTMB 50 / M10x30
JTMB 50 / M10x30 50 650 36 5 6 12,5 30 M10 17 - JTMB 50 / M10x40
JTMB 50 / M10x40 50 650 36 5 6 12,5 40 M10 17 - JTMB 50 / M10x50
JTMB 50 / M10x50 50 650 36 5 6 12,5 50 M10 17 - JTMB 50 / M10x60
JTMB 50 / M10x60 50 650 36 5 6 12,5 60 M10 17 - JTMB 50 / M10x70
JTMB 50 / M10x70 50 650 36 5 6 12,5 70 M10 17 - JTMB 50 / M10x80
JTMB 50 / M10x80 50 650 36 5 6 12,5 80 M10 17 - JTMB 50 / M10x90
JTMB 50 / M10x90 50 650 36 5 6 12,5 90 M10 17 - JTMB 50 / M10x100
JTMB 50 / M10x100 50 650 36 5 6 12,5 100 M10 17 - JTMB 50 / M10x120
JTMB 50 / M10x120 50 650 36 5 6 12,5 120 M10 17
