Adjustable foot - JTM ISK

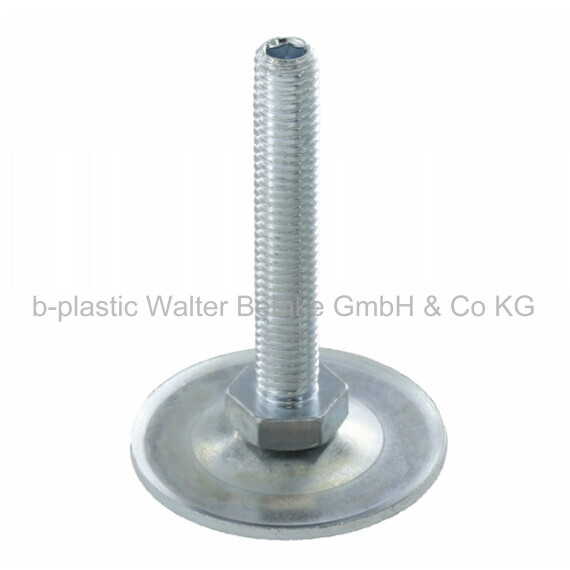

Adjustable feet made of galvanised steel with hexagonal adjusting screw and hexagon in the thread end, swivel base

Your session has expired, please log in again.
JTMB ISK
JTM ISK
JTM ISK
JTMB ISK
JTMB ISK
JTM ISK
JTM ISK
JTMB ISK
PDF data sheet
  • Screw: DIN 558-4.6-A2F (zinc-plated)
  • Base: zinc-plated steel

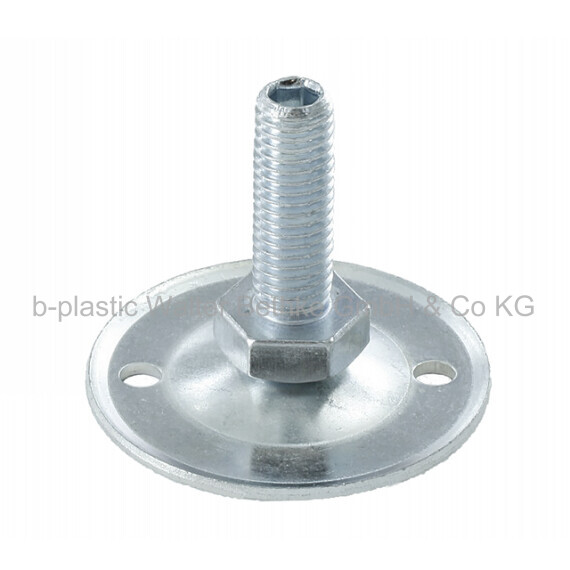

  • B = with fixing holes
  • The feet must be adjusted unloaded.
  • The adjustable feet are not suitable as load gliders.
  • The load capacity of the screw (buckling length!) may be less than indicated in the table.

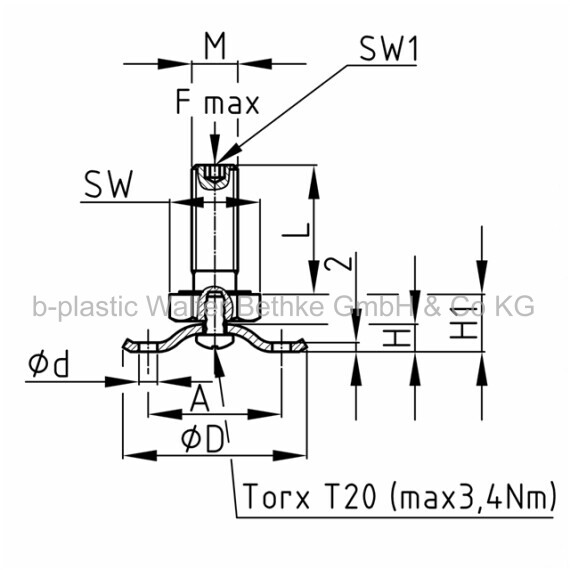

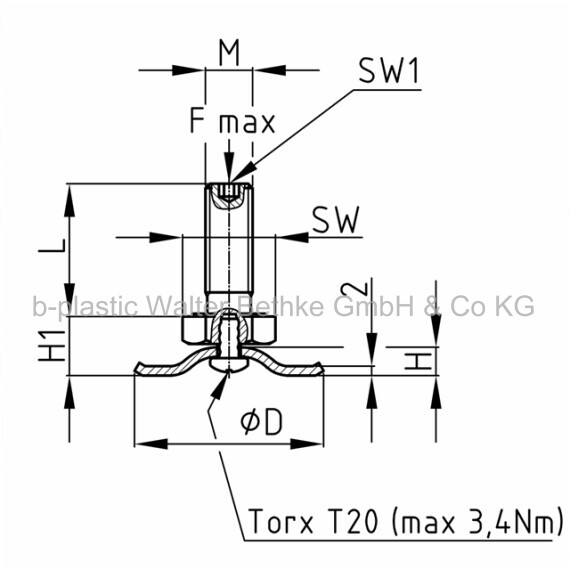

  • As mounting aid Torx T20 in the plate (max. torque 3.4 Nm)
  • The applicability for automated assembly will be examined by the customer. In the case of standard delivery, there is no guarantee of suitability for automated assembly (range of torque, tolerance limits of thread and more).
  • Further thread lengths/sizes
  • Stainless steel metal base
  • B = with fixing holes
