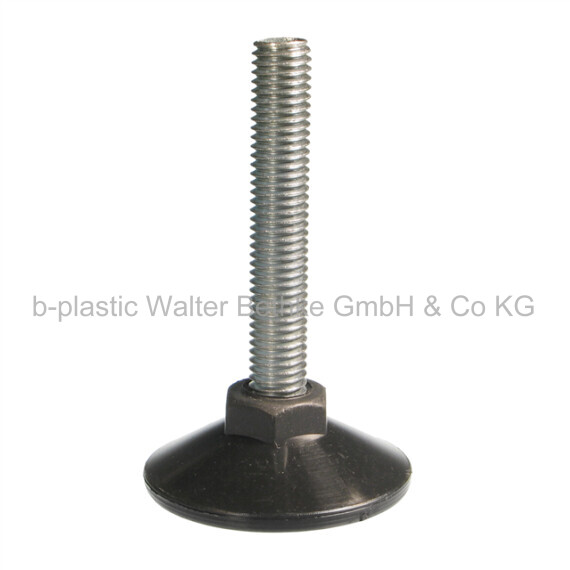

Adjusting screw - TS
Adjustable screws with round plastic base made of PA and moulded hexagon, thread bolt overmoulded
Configure your article. Enter multiple parameters to get the best result.

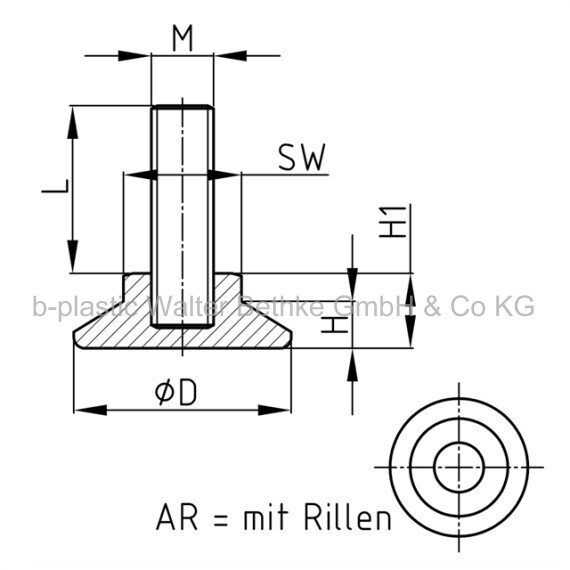

D in mm:
H in mm:
H1 in mm:
L in mm:
M:
WAF in mm:
Your article results:
Order-No. D
mmH
mmH1
mmL
mmM WAF
mm- TS 26 / M6x24
TS 26 / M6x24 25 7,5 11 24 M6 13 - TS 26 / M6x34
TS 26 / M6x34 25 7,5 11 34 M6 13 - TS 26 / M6x54
TS 26 / M6x54 25 7,5 11 54 M6 13 - TS 26 / M6x62
TS 26 / M6x62 25 7,5 11 62 M6 13 - TS 26 / M8x14
TS 26 / M8x14 25 7,5 11 14 M8 13 - TS 26 / M8x17
TS 26 / M8x17 25 7,5 11 17 M8 13 - TS 26 / M8x24
TS 26 / M8x24 25 7,5 11 22 M8 13 - TS 26 / M8x34
TS 26 / M8x34 25 7,5 11 32 M8 13 - TS 26 / M8x54
TS 26 / M8x54 25 7,5 11 52 M8 13 - TS 26 / M8x74
TS 26 / M8x74 25 7,5 11 72 M8 13 - TS 26 / M10x17
TS 26 / M10x17 26 7,5 11 17 M10 13 - TS 26 / M10x24
TS 26 / M10x24 26 7,5 11 22 M10 13 - TS 26 / M10x34
TS 26 / M10x34 26 7,5 11 32 M10 13 - TS 26 / M10x44
TS 26 / M10x44 26 7,5 11 42 M10 13 - TS 26 / M10x54
TS 26 / M10x54 26 7,5 11 52 M10 13 - TS 26 / M10x64
TS 26 / M10x64 26 7,5 11 62 M10 13 - TS 26 / M10x74
TS 26 / M10x74 26 7,5 11 72 M10 13 - TS 26 / M10x102
TS 26 / M10x102 26 7,5 11 102 M10 13 - TS 26 / M10x142
TS 26 / M10x142 26 7,5 11 142 M10 13 - TS 30 / M6x20
TS 30 / M6x20 30 8,5 15 20 M6 13 - TS 30 / M6x30
TS 30 / M6x30 30 8,5 15 30 M6 13 - TS 30 / M6x50
TS 30 / M6x50 30 8,5 15 50 M6 13 - TS 30 / M8x10
TS 30 / M8x10 30 8,5 15 10 M8 13 - TS 30 / M8x13
TS 30 / M8x13 30 8,5 15 13 M8 13 - TS 30 / M8x20
TS 30 / M8x20 30 8,5 15 18 M8 13 - TS 30 / M8x30
TS 30 / M8x30 30 8,5 15 28 M8 13 - TS 30 / M8x50
TS 30 / M8x50 30 8,5 15 48 M8 13 - TS 30 / M8x70
TS 30 / M8x70 30 8,5 15 68 M8 13 - TS 30 / M10x20
TS 30 / M10x20 30 8,5 15 18 M10 13 - TS 30 / M10x30
TS 30 / M10x30 30 8,5 15 28 M10 13 - TS 30 / M10x40
TS 30 / M10x40 30 8,5 15 38 M10 13 - TS 30 / M10x50
TS 30 / M10x50 30 8,5 15 48 M10 13 - TS 30 / M10x60
TS 30 / M10x60 30 8,5 15 58 M10 13 - TS 30 / M10x70
TS 30 / M10x70 30 8,5 15 68 M10 13 - TS 30 / M10x100
TS 30 / M10x100 30 8,5 15 98 M10 13 - TS 30 / M10x140
TS 30 / M10x140 30 8,5 15 138 M10 13 - TS 40 / M8x12
TS 40 / M8x12 40 11 13,5 12 M8 17 - TS 40 / M8x20
TS 40 / M8x20 40 11 13,5 20 M8 17 - TS 40 / M8x30
TS 40 / M8x30 40 11 13,5 30 M8 17 - TS 40 / M8x50
TS 40 / M8x50 40 11 13,5 50 M8 17 - TS 40 / M8x70
TS 40 / M8x70 40 11 13,5 70 M8 17 - TS 40 / M10x15
TS 40 / M10x15 40 11 13,5 15 M10 17 - TS 40 / M10x20
TS 40 / M10x20 40 10 13,5 20 M10 17 - TS 40 / M10x30
TS 40 / M10x30 40 10 13,5 30 M10 17 - TS 40 / M10x40
TS 40 / M10x40 40 10 13,5 40 M10 17 - TS 40 / M10x50
TS 40 / M10x50 40 10 13,5 50 M10 17 - TS 40 / M10x60
TS 40 / M10x60 40 10 13,5 60 M10 17 - TS 40 / M10x70
TS 40 / M10x70 40 10 13,5 70 M10 17 - TS 40 / M10x100
TS 40 / M10x100 40 10 13,5 100 M10 17 - TS 40 / M10x140
TS 40 / M10x140 40 10 13,5 140 M10 17 - TS 47 / M8x15
TS 47 / M8x15 45 11 18 15 M8 17 - TS 47 / M8x10
TS 47 / M8x10 45 11 18 10 M8 17 - TS 47 / M8x25
TS 47 / M8x25 45 11 18 25 M8 17 - TS 47 / M8x45
TS 47 / M8x45 45 11 18 45 M8 17 - TS 47 / M8x65
TS 47 / M8x65 45 11 18 65 M8 17 - TS 47 / M10x10
TS 47 / M10x10 45 11 18 10 M10 17 - TS 47 / M10x15
TS 47 / M10x15 45 11 18 15 M10 17 - TS 47 / M10x25
TS 47 / M10x25 45 11 18 25 M10 17 - TS 47 / M10x35
TS 47 / M10x35 45 11 18 35 M10 17 - TS 47 / M10x45
TS 47 / M10x45 45 11 18 45 M10 17 - TS 47 / M10x55
TS 47 / M10x55 45 11 18 55 M10 17 - TS 47 / M10x65
TS 47 / M10x65 45 11 18 65 M10 17 - TS 47 / M10x95
TS 47 / M10x95 45 11 18 95 M10 17 - TS 47 / M10x135
TS 47 / M10x135 45 11 18 135 M10 17 - TS 54 / M10x 17 *
TS 54 / M10x 17 * 54 6 10 17 M10 13 - TS 54 / M10x24 *
TS 54 / M10x24 * 54 6 10 22 M10 13 - TS 54 / M10x34 *
TS 54 / M10x34 * 54 6 10 32 M10 13 - TS 54 / M10x44 *
TS 54 / M10x44 * 54 6 10 42 M10 13 - TS 54 / M10x54 *
TS 54 / M10x54 * 54 6 10 52 M10 13 - TS 54 / M10x64 *
TS 54 / M10x64 * 54 6 10 62 M10 13 - TS 54 / M10x74 *
TS 54 / M10x74 * 54 6 10 72 M10 13 - TS 54 / M10x114 *
TS 54 / M10x114 * 54 6 10 102 M10 13 - TS 54 / M10x144 *
TS 54 / M10x144 * 54 6 10 142 M10 13 - TS 55 / M10x8
TS 55 / M10x8 54 8,5 20 8 M10 19 - TS 55 / M10x8 AR
TS 55 / M10x8 AR 54 8,5 21 8 M10 19 - TS 55 / M10x15
TS 55 / M10x15 54 8,5 20 13 M10 19 - TS 55 / M10x15 AR
TS 55 / M10x15 AR 54 8,5 21 13 M10 19 - TS 55 / M10x25
TS 55 / M10x25 54 8,5 20 23 M10 19 - TS 55 / M10x25 AR
TS 55 / M10x25 AR 54 8,5 21 23 M10 19 - TS 55 / M10x35
TS 55 / M10x35 54 8,5 20 33 M10 19 - TS 55 / M10x35 AR
TS 55 / M10x35 AR 54 8,5 21 33 M10 19 - TS 55 / M10x45
TS 55 / M10x45 54 8,5 20 43 M10 19 - TS 55 / M10x45 AR
TS 55 / M10x45 AR 54 8,5 21 43 M10 19 - TS 55 / M10x55
TS 55 / M10x55 54 8,5 20 53 M10 19 - TS 55 / M10x55 AR
TS 55 / M10x55 AR 54 8,5 21 53 M10 19 - TS 55 / M10x65
TS 55 / M10x65 54 8,5 20 63 M10 19 - TS 55 / M10x65 AR
TS 55 / M10x65 AR 54 8,5 21 63 M10 19 - TS 55 / M10x95
TS 55 / M10x95 54 8,5 20 93 M10 19 - TS 55 / M10x95 AR
TS 55 / M10x95 AR 54 8,5 21 93 M10 19 - TS 55 / M10x135
TS 55 / M10x135 54 8,5 20 133 M10 19 - TS 55 / M10x135 AR
TS 55 / M10x135 AR 54 8,5 21 133 M10 19
