Rectangular adjustable foot - FR

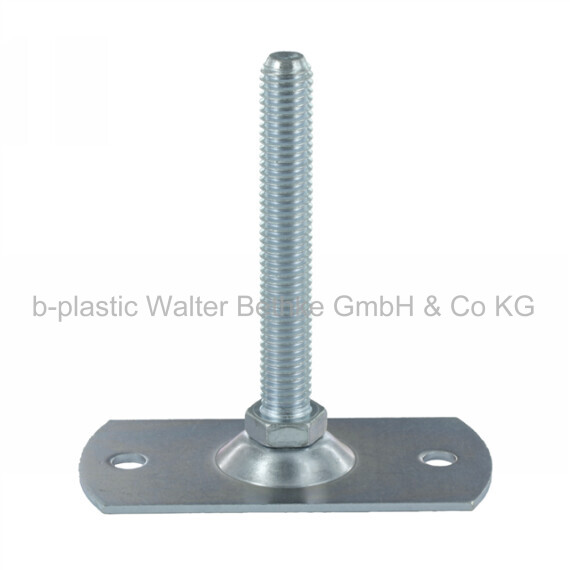

Rectangular adjustment feet made of galvanised steel with fixing holes and hexagonal adjustment screw, swivel base
Configure your article. Enter multiple parameters to get the best result.

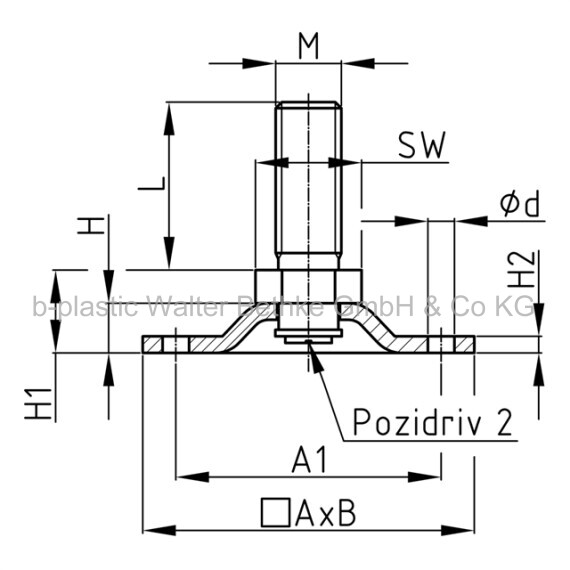

A in mm:
A1 in mm:
B in mm:
d in mm:
H in mm:
H1 in mm:
H2 in mm:
L in mm:
M:
WAF in mm:
Your article results:
Order-No. A
mmA1
mmB
mmd
mmH
mmH1
mmH2
mmL
mmM WAF
mm- FR 80x40 / M10x35
FR 80x40 / M10x35 80 60 40 6,5 7,5 12 2 35 M10 14 - FR 80x40 / M10x50
FR 80x40 / M10x50 80 60 40 6,5 7,5 12 2 50 M10 14 - FR 80x40 / M10x70
FR 80x40 / M10x70 80 60 40 6,5 7,5 12 2 70 M10 14
Login to get price and discount information for all products.
