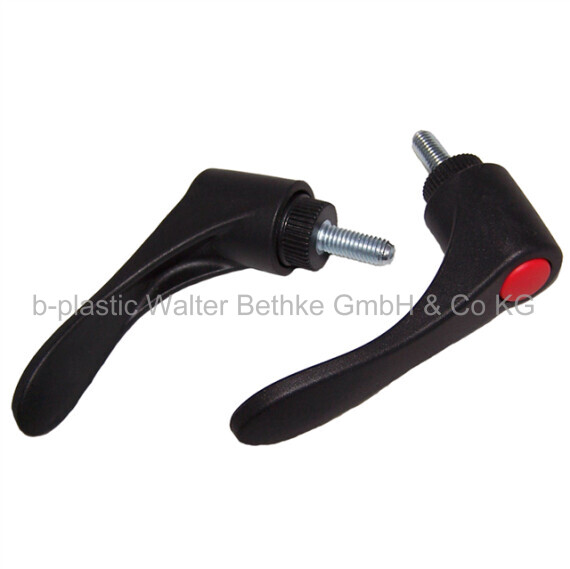

Clamping handle - KLH10B
Clamping lever made of PA 6 with threaded bolt, adjustable with push button
Configure your article. Enter multiple parameters to get the best result.

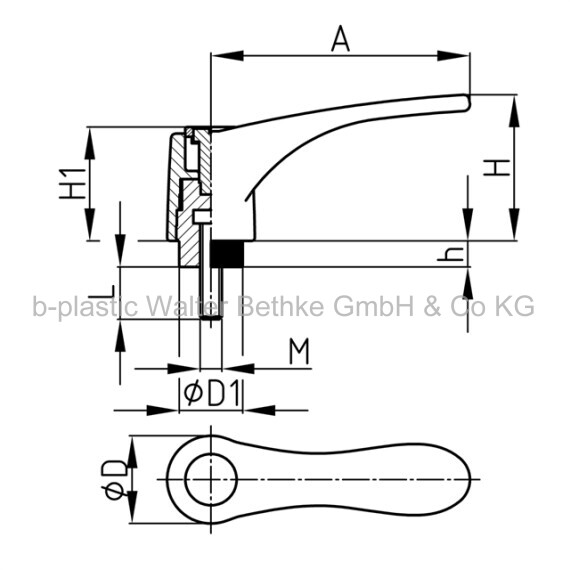

A in mm:
D in mm:
D1 in mm:
H in mm:
h in mm:
H1 in mm:
L in mm:
M:
Your article results:
Order-No. A
mmD
mmD1
mmH
mmh
mmH1
mmL
mmM - KLH10B 80 / M6x25
KLH10B 80 / M6x25 80 27 12 41 9 31 25 M6 - KLH10B 80 / M8x15
KLH10B 80 / M8x15 80 27 12 41 9 31 15 M8 - KLH10B 80 / M8x20
KLH10B 80 / M8x20 80 27 12 41 9 31 20 M8 - KLH10B 80 / M8x25
KLH10B 80 / M8x25 80 27 12 41 9 31 25 M8 - KLH10B 80 / M8x30
KLH10B 80 / M8x30 80 27 12 41 9 31 30 M8 - KLH10B 80 / M8x35
KLH10B 80 / M8x35 80 27 12 41 9 31 35 M8 - KLH10B 80 / M8x40
KLH10B 80 / M8x40 80 27 12 41 9 31 40 M8 - KLH10B 80 / M8x50
KLH10B 80 / M8x50 80 27 12 41 9 31 50 M8 - KLH10B 80 / M8x55
KLH10B 80 / M8x55 80 27 12 41 9 31 55 M8 - KLH10B 80 / M8x60
KLH10B 80 / M8x60 80 27 12 41 9 31 60 M8 - KLH10B 80 / M8x70
KLH10B 80 / M8x70 80 27 12 41 9 31 70 M8 - KLH10B 80 / M8x85
KLH10B 80 / M8x85 80 27 12 41 9 31 85 M8 - KLH10B 80 / M8x90
KLH10B 80 / M8x90 80 27 12 41 9 31 90 M8 - KLH10B 80 / M10x15
KLH10B 80 / M10x15 80 27 12 41 9 31 15 M10 - KLH10B 80 / M10x20
KLH10B 80 / M10x20 80 27 12 41 9 31 20 M10 - KLH10B 80 / M10x25
KLH10B 80 / M10x25 80 27 12 41 9 31 25 M10 - KLH10B 80 / M10x30
KLH10B 80 / M10x30 80 27 12 41 9 31 30 M10 - KLH10B 80 / M10x35
KLH10B 80 / M10x35 80 27 12 41 9 31 35 M10 - KLH10B 80 / M10x40
KLH10B 80 / M10x40 80 27 12 41 9 31 40 M10 - KLH10B 80 / M10x50
KLH10B 80 / M10x50 80 27 12 41 9 31 50 M10 - KLH10B 80 / M10x60
KLH10B 80 / M10x60 80 27 12 41 9 31 60 M10 - KLH10B 100 / M8x15
KLH10B 100 / M8x15 100 33 12 53 12 38 15 M8 - KLH10B 100 / M8x20
KLH10B 100 / M8x20 100 33 12 53 12 38 20 M8 - KLH10B 100 / M8x25
KLH10B 100 / M8x25 100 33 12 53 12 38 25 M8 - KLH10B 100 / M8x30
KLH10B 100 / M8x30 100 33 12 53 12 38 30 M8 - KLH10B 100 / M8x35
KLH10B 100 / M8x35 100 33 12 53 12 38 35 M8 - KLH10B 100 / M8x40
KLH10B 100 / M8x40 100 33 12 53 12 38 40 M8 - KLH10B 100 / M10x15
KLH10B 100 / M10x15 100 33 12 53 12 38 15 M10 - KLH10B 100 / M10x20
KLH10B 100 / M10x20 100 33 12 53 12 38 20 M10 - KLH10B 100 / M10x25
KLH10B 100 / M10x25 100 33 12 53 12 38 25 M10 - KLH10B 100 / M10x30
KLH10B 100 / M10x30 100 33 12 53 12 38 30 M10 - KLH10B 100 / M10x35
KLH10B 100 / M10x35 100 33 12 53 12 38 35 M10 - KLH10B 100 / M10x40
KLH10B 100 / M10x40 100 33 12 53 12 38 40 M10 - KLH10B 100 / M10x50
KLH10B 100 / M10x50 100 33 12 53 12 38 50 M10 - KLH10B 100 / M12x20
KLH10B 100 / M12x20 100 33 12 53 12 38 20 M12 - KLH10B 100 / M12x25
KLH10B 100 / M12x25 100 33 12 53 12 38 25 M12 - KLH10B 100 / M12x30
KLH10B 100 / M12x30 100 33 12 53 12 38 30 M12 - KLH10B 100 / M12x35
KLH10B 100 / M12x35 100 33 12 53 12 38 35 M12 - KLH10B 100 / M12x40
KLH10B 100 / M12x40 100 33 12 53 12 38 40 M12 - KLH10B 100 / M12x50
KLH10B 100 / M12x50 100 33 12 53 12 38 50 M12
Login to get price and discount information for all products.
