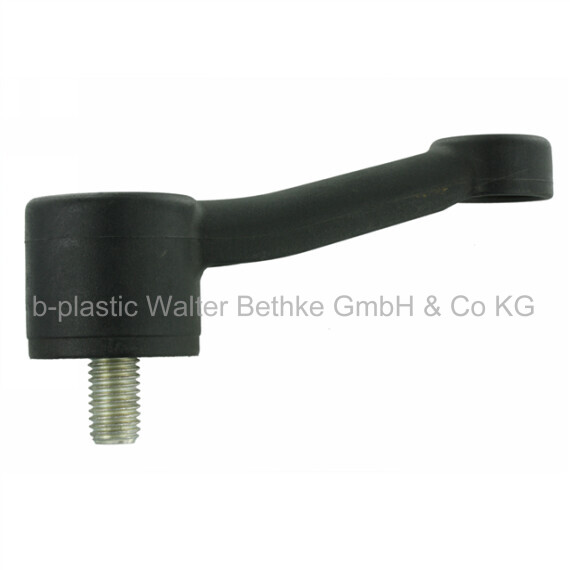

Clamping handle - KLH7B
Clamping lever made of PA-GF with threaded bolt
Your session has expired, please log in again.

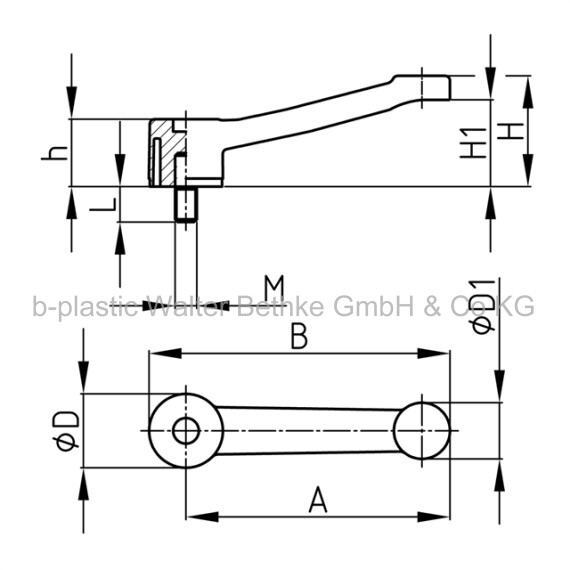

Configure your article. Enter multiple parameters to get the best result.
A in mm:
B in mm:
D in mm:
D1 in mm:
H in mm:
h in mm:
H1 in mm:
L in mm:
M:
Your article results:
Order-No. A
mmB
mmD
mmD1
mmH
mmh
mmH1
mmL
mmM - KLH7B 128 / M12x30
KLH7B 128 / M12x30 128 151 45 35 60 42 53 30 M12 - KLH7B 128 / M12x40
KLH7B 128 / M12x40 128 151 45 35 60 42 53 40 M12 - KLH7B 128 / M12x50
KLH7B 128 / M12x50 128 151 45 35 60 42 53 50 M12 - KLH7B 128 / M14x30
KLH7B 128 / M14x30 128 151 45 35 60 42 53 30 M14 - KLH7B 128 / M14x40
KLH7B 128 / M14x40 128 151 45 35 60 42 53 40 M14 - KLH7B 128 / M14x50
KLH7B 128 / M14x50 128 151 45 35 60 42 53 50 M14 - KLH7B 128 / M16x30
KLH7B 128 / M16x30 128 151 45 35 60 42 53 30 M16 - KLH7B 128 / M16x40
KLH7B 128 / M16x40 128 151 45 35 60 42 53 40 M16 - KLH7B 128 / M16x50
KLH7B 128 / M16x50 128 151 45 35 60 42 53 50 M16 - KLH7B 148 / M12x30
KLH7B 148 / M12x30 148 171 45 35 65 42 58 30 M12 - KLH7B 148 / M12x40
KLH7B 148 / M12x40 148 171 45 35 65 42 58 40 M12 - KLH7B 148 / M12x50
KLH7B 148 / M12x50 148 171 45 35 65 42 58 50 M12 - KLH7B 148 / M14x30
KLH7B 148 / M14x30 148 171 45 35 65 42 58 30 M14 - KLH7B 148 / M14x40
KLH7B 148 / M14x40 148 171 45 35 65 42 58 40 M14 - KLH7B 148 / M14x50
KLH7B 148 / M14x50 148 171 45 35 65 42 58 50 M14 - KLH7B 148 / M16x30
KLH7B 148 / M16x30 148 171 45 35 65 42 58 30 M16 - KLH7B 148 / M16x40
KLH7B 148 / M16x40 148 171 45 35 65 42 58 40 M16 - KLH7B 148 / M16x50
KLH7B 148 / M16x50 148 171 45 35 65 42 58 50 M16
Loading product information
Login to get price and discount information for all products.
