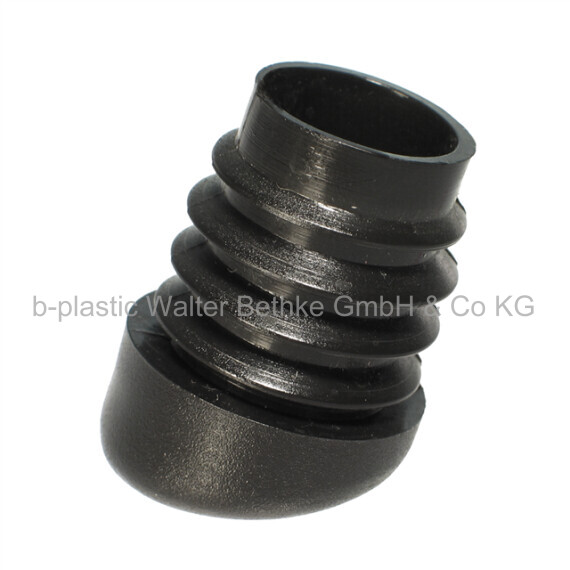

Angled glider - RS

Inclined lamella glides made of PE for round tubes for furniture and frames

Your session has expired, please log in again.
RS
RS
RS
RS
RS
RS
RS
RS
RS
RS
PDF data sheet
  • Base body: Polyethylene (PE)
black RAL 9005
signal white RAL 9003
  • Special colours (colours, minimum quantities, set-up costs, pricing and surcharges)
  • Most plugs can also be made of suitable harder TPE's (TPE= thermoplastic elastomer --> extended range of operating temperature, noise absorbing, non-skid).
  • *) = Attention, this item is leaving our programme. Only existing stock available.

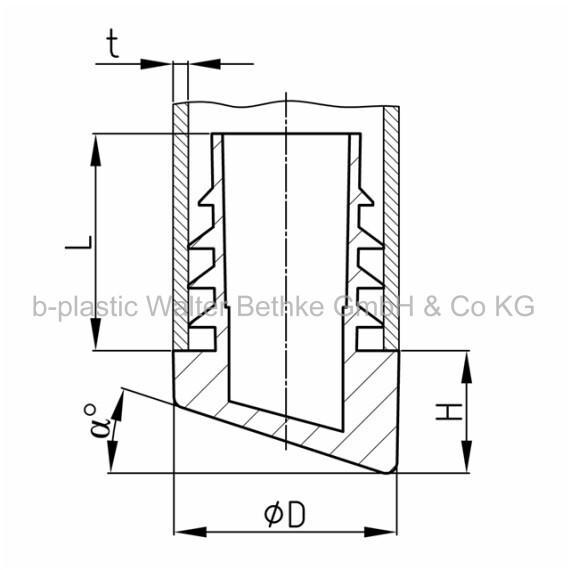

Configure your article. Enter multiple parameters to get the best result.

α in °:

D in mm:

H in mm:

L in mm:

t in mm:

Your article results:

  • Order-No. α
    °    		D
    mm    		H
    mm    		L
    mm    		t
    mm
  • RS 16x2-2,5 / 6°/20
    RS 16x2-2,5 / 6°/20 6166,5202-2,5
  • RS 16x2-2,5 / 9°/20
    RS 16x2-2,5 / 9°/20 9166,8202-2,5
  • RS 16x2-2,5 / 12°/ 20
    RS 16x2-2,5 / 12°/ 20 12167,2202-2,5
  • RS 16x2-2,5 / 15°/ 20
    RS 16x2-2,5 / 15°/ 20 15167,9202-2,5
  • RS 16x2-2,5 / 18°/ 20
    RS 16x2-2,5 / 18°/ 20 18169,5202-2,5
  • RS 16x2-2,5 / 21°/ 20
    RS 16x2-2,5 / 21°/ 20 21169,7202-2,5
  • RS 16x2-2,5 / 24°/ 20
    RS 16x2-2,5 / 24°/ 20 241610,4202-2,5
  • RS 18x1,5-2 / 6°/20
    RS 18x1,5-2 / 6°/20 6186,5201,5-2
  • RS 18x1,5-2 / 9°/20
    RS 18x1,5-2 / 9°/20 9186,7201,5-2
  • RS 18x1,5-2 / 12°/ 20
    RS 18x1,5-2 / 12°/ 20 12187,2201,5-2
  • RS 18x1,5-2 / 15°/ 20
    RS 18x1,5-2 / 15°/ 20 15189201,5-2
  • RS 18x1,5-2 / 18°/ 20
    RS 18x1,5-2 / 18°/ 20 18189,3201,5-2
  • RS 18x1,5-2 / 21°/ 20
    RS 18x1,5-2 / 21°/ 20 211811201,5-2
  • RS 18x1,5-2 / 24°/ 20
    RS 18x1,5-2 / 24°/ 20 241811,4201,5-2
  • RS 19x1,5-2 / 6°/20
    RS 19x1,5-2 / 6°/20 6196,7201,5-2
  • RS 19x2-2,5 / 6°/20
    RS 19x2-2,5 / 6°/20 6196,7202-2,5
  • RS 19x1,5-2 / 9°/20
    RS 19x1,5-2 / 9°/20 9197201,5-2
  • RS 19x2-2,5 / 9°/20
    RS 19x2-2,5 / 9°/20 9197202-2,5
  • RS 19x1,5-2 / 12°/ 20
    RS 19x1,5-2 / 12°/ 20 12197,5201,5-2
  • RS 19x2-2,5 / 12°/ 20
    RS 19x2-2,5 / 12°/ 20 12197,5202-2,5
  • RS 19x1,5-2 / 15°/ 20
    RS 19x1,5-2 / 15°/ 20 15199,2201,5-2
  • RS 19x2-2,5 / 15°/ 20
    RS 19x2-2,5 / 15°/ 20 15199,2202-2,5
  • RS 19x1,5-2 / 18°/ 20
    RS 19x1,5-2 / 18°/ 20 18199,6201,5-2
  • RS 19x2-2,5 / 18°/ 20
    RS 19x2-2,5 / 18°/ 20 18199,6202-2,5
  • RS 19x1,5-2 / 21°/ 20
    RS 19x1,5-2 / 21°/ 20 211911201,5-2
  • RS 19x2-2,5 / 21°/ 20
    RS 19x2-2,5 / 21°/ 20 211911202-2,5
  • RS 19x1,5-2 / 24°/ 20
    RS 19x1,5-2 / 24°/ 20 241911,5201,5-2
  • RS 19x2-2,5 / 24°/ 20
    RS 19x2-2,5 / 24°/ 20 241911,5202-2,5
  • RS 20x1,5-2 / 6°/20
    RS 20x1,5-2 / 6°/20 6207201,5-2
  • RS 20x2-2,5 / 6°/20
    RS 20x2-2,5 / 6°/20 6207202-2,5
  • RS 20x1,5-2 / 9°/20
    RS 20x1,5-2 / 9°/20 9207201,5-2
  • RS 20x2-2,5 / 9°/20
    RS 20x2-2,5 / 9°/20 9207202-2,5
  • RS 20x1,5-2 / 12°/ 20
    RS 20x1,5-2 / 12°/ 20 12209201,5-2
  • RS 20x2-2,5 / 12°/ 20
    RS 20x2-2,5 / 12°/ 20 12209202-2,5
  • RS 20x1,5-2 / 15°/ 20
    RS 20x1,5-2 / 15°/ 20 152010201,5-2
  • RS 20x2-2,5 / 15°/ 20
    RS 20x2-2,5 / 15°/ 20 152010202-2,5
  • RS 20x1,5-2 / 18°/ 20
    RS 20x1,5-2 / 18°/ 20 182011201,5-2
  • RS 20x2-2,5 / 18°/ 20
    RS 20x2-2,5 / 18°/ 20 182011202-2,5
  • RS 20x1,5-2 / 21°/ 20
    RS 20x1,5-2 / 21°/ 20 212011,8201,5-2
  • RS 20x2-2,5 / 21°/ 20
    RS 20x2-2,5 / 21°/ 20 212011,8202-2,5
  • RS 20x1,5-2 / 24°/ 20
    RS 20x1,5-2 / 24°/ 20 242012201,5-2
  • RS 20x2-2,5 / 24°/ 20
    RS 20x2-2,5 / 24°/ 20 242012202-2,5
  • RS 22x1,2-2 / 9°/20
    RS 22x1,2-2 / 9°/20 9227,8201,2-2
  • RS 22x2-2,5 / 9°/20
    RS 22x2-2,5 / 9°/20 9227,8202-2,5
  • RS 22x1,2-2 / 12°/ 20
    RS 22x1,2-2 / 12°/ 20 12228201,2-2
  • RS 22x2-2,5 / 12°/ 20
    RS 22x2-2,5 / 12°/ 20 12228202-2,5
  • RS 22x1,2-2 / 15°/ 20
    RS 22x1,2-2 / 15°/ 20 152210201,2-2
  • RS 22x1,2-2 / 18°/ 20
    RS 22x1,2-2 / 18°/ 20 182210201,2-2
  • RS 22x2-2,5 / 18°/ 20
    RS 22x2-2,5 / 18°/ 20 182210202-2,5
  • RS 22x1,2-2 / 21°/ 20
    RS 22x1,2-2 / 21°/ 20 212211,5201,2-2
  • RS 22x2-2,5 / 21°/ 20
    RS 22x2-2,5 / 21°/ 20 212211,5202-2,5
  • RS 22x1,2-2 / 24°/ 20
    RS 22x1,2-2 / 24°/ 20 242212201,2-2
  • RS 22x2-2,5 / 24°/ 20
    RS 22x2-2,5 / 24°/ 20 242212202-2,5
  • RS 25x1,5-2 / 6°/20
    RS 25x1,5-2 / 6°/20 6257,2201,5-2
  • RS 25x2-2,5 / 6°/20
    RS 25x2-2,5 / 6°/20 6257,2202-2,5
  • RS 25x1,5-2 / 9°/20
    RS 25x1,5-2 / 9°/20 9258,5201,5-2
  • RS 25x1,5-2 / 12°/ 20
    RS 25x1,5-2 / 12°/ 20 12259,5201,5-2
  • RS 25x1,5-2 / 15°/ 20
    RS 25x1,5-2 / 15°/ 20 152512201,5-2
  • RS 25x1,5-2 / 18°/ 20
    RS 25x1,5-2 / 18°/ 20 182512201,5-2
  • RS 25x1,5-2 / 21°/ 20
    RS 25x1,5-2 / 21°/ 20 212512,7201,5-2
  • RS 25x2-2,5 / 21°/ 20
    RS 25x2-2,5 / 21°/ 20 212512,7202-2,5
  • RS 25x1,5-2 / 24°/ 20
    RS 25x1,5-2 / 24°/ 20 242513,5201,5-2
  • RS 25x2-2,5 / 24°/ 20
    RS 25x2-2,5 / 24°/ 20 242513,5202-2,5
