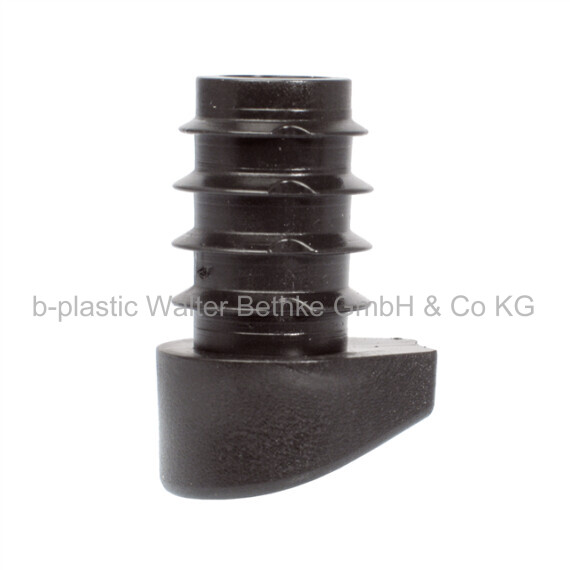

Angled glider - RSG
Inclined lamella glides made of PE for round tubes with variable set-up angle and stacking protection
Your session has expired, please log in again.
Configure your article. Enter multiple parameters to get the best result.

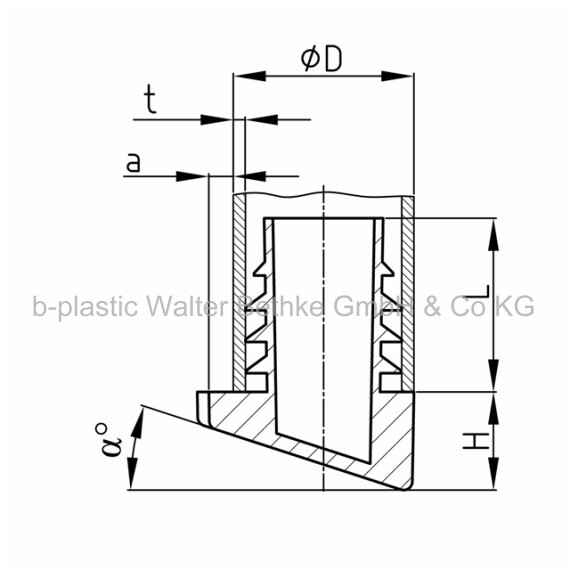

α in °:
a in mm:
D in mm:
H in mm:
L in mm:
t in mm:
Your article results:
Order-No. α
°a
mmD
mmH
mmL
mmt
mm- RSG 18x1,5-2 / 12-18° / 21
RSG 18x1,5-2 / 12-18° / 21 12-18 3 18 11,4 21 1,5-2 - RSG 18x1,5-2 / 18-22° / 21
RSG 18x1,5-2 / 18-22° / 21 18-22 3 18 13,7 21 1,5-2 - RSG 20x1,5-2 / 12-18° / 23
RSG 20x1,5-2 / 12-18° / 23 12-18 3 20 21,1 23 1,5-2 - RSG 20x1,5-2 / 18-22° / 23
RSG 20x1,5-2 / 18-22° / 23 18-22 3 20 14,5 23 1,5-2 - RSG 22x1,5-2 / 12-18° / 25
RSG 22x1,5-2 / 12-18° / 25 12-18 3 22 12,9 25 1,5-2 - RSG 22x1,5-2 / 18-22° / 25
RSG 22x1,5-2 / 18-22° / 25 18-22 3 22 15,3 25 1,5-2 - RSG 25x1,5-2 / 12-18° / 28
RSG 25x1,5-2 / 12-18° / 28 12-18 3 25 13,8 28 1,5-2 - RSG 25x1,5-2 / 18-22° / 28
RSG 25x1,5-2 / 18-22° / 28 18-22 3 25 16,3 28 1,5-2
