Screw corner connector - SEVM5

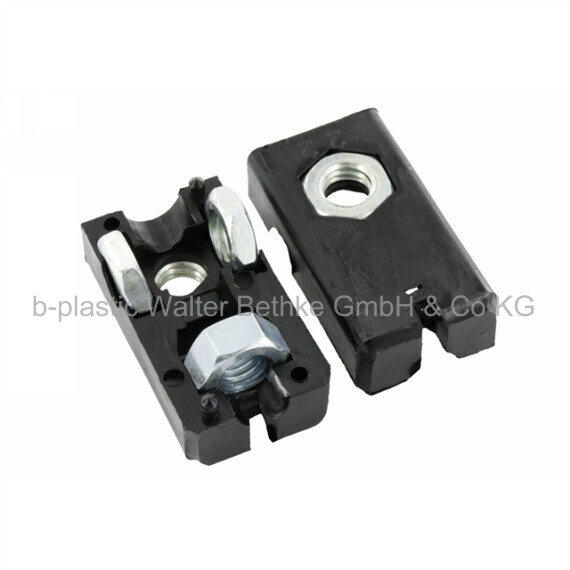

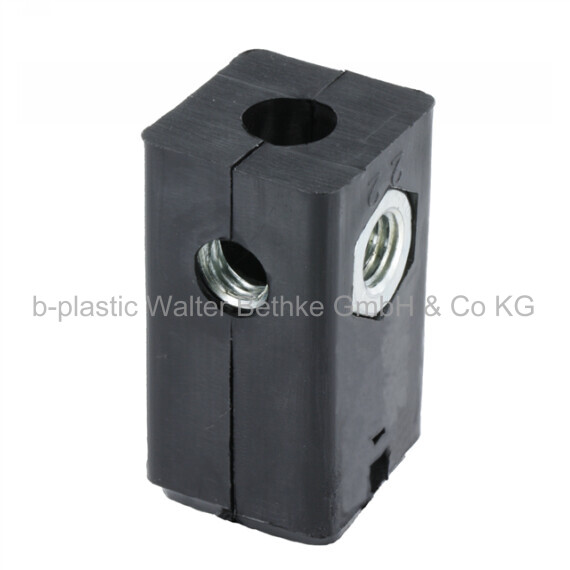

Screw corner connectors made of PA without collar for square tubes, with five bright galvanized hexagon nuts

Your session has expired, please log in again.
SEVM5
SEVM5
SEVM5
SEVM5
SEVM5
SEVM5
SEVM5
SEVM5
SEVM5
SEVM5
SEVM5
SEVM5
SEVM5
SEVM5
PDF data sheet
  • Base body: Polyamide (PA)
  • Thread: zinc-plated steel
black

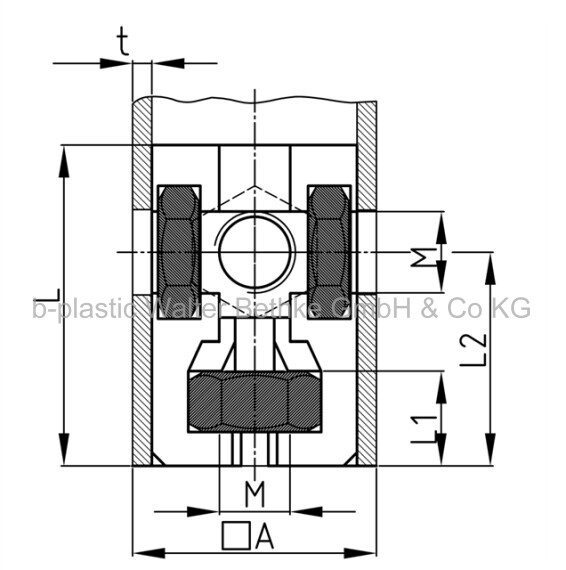

  • The connector has a conical chamber for hexagon nuts in the longitudinal direction.
  • When the thread is tightened, the connector is pressed against the inner wall of the pipe (dowel effect). This results in a connection that is subjected to tensile stress, the load-bearing capacity of which depends heavily on the condition of the pipes (tolerances, roughness, welds, etc.) as well as the tightening torque. We therefore recommend that you carry out your own tests to determine the values.
  • Fixing of wheels or adjustable feet of horizontally lying tubes.
  • Right-angled connection to trusses
  • Tube extensions (1 connector with nut and 1 connector with screw)
  • Subsequent installation of shelf compartments in already existing constructions
  • Invisible connections
  • Order related production! Please ask for minimum quantity.

Configure your article. Enter multiple parameters to get the best result.

A in mm:

L in mm:

L1 in mm:

L2 in mm:

t in mm:

M:
