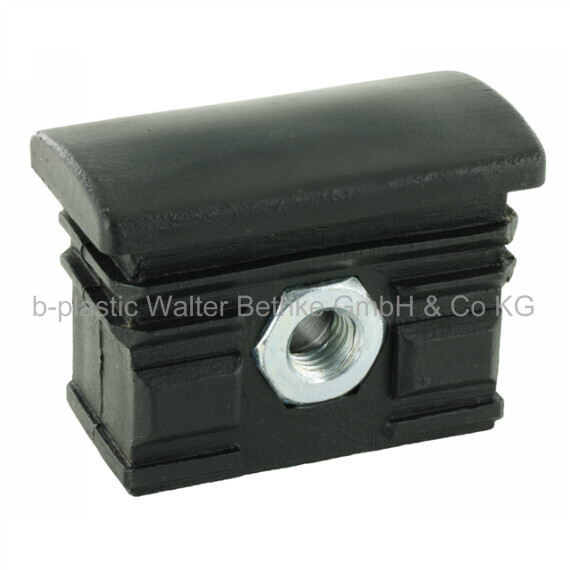

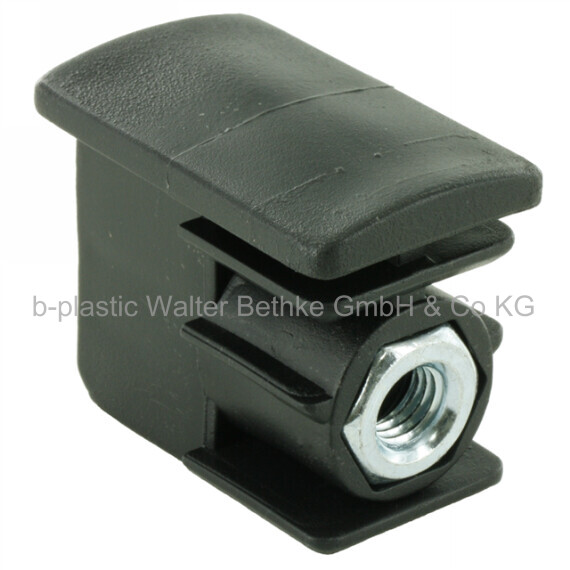

Screw corner connector - SVOR
Screw corner connectors with collar made of PE for rectangular tubes and assembled hexagon nut
Configure your article. Enter multiple parameters to get the best result.

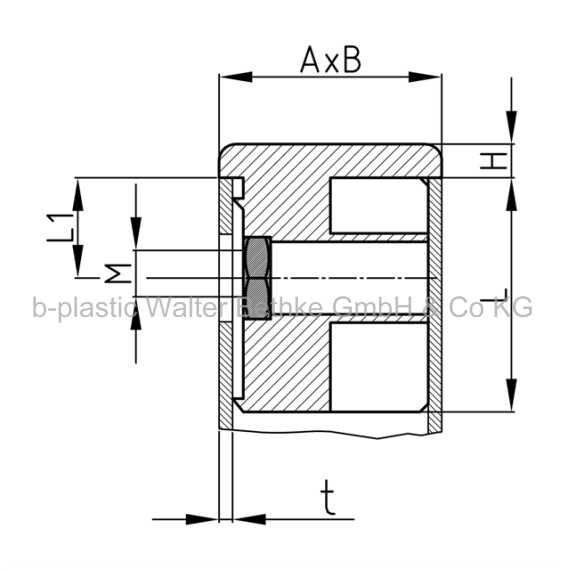

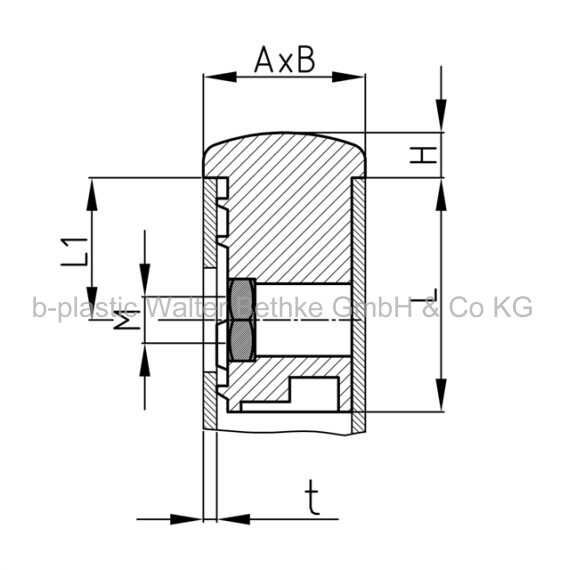

A in mm:
B in mm:
H in mm:
L in mm:
L1 in mm:
M:
t in mm:
Your article results:
Order-No. A
mmB
mmH
mmL
mmL1
mmM t
mm- SVOR 30X50X2 M10 L PP
SVOR 30X50X2 M10 L PP 30 50 5 36 20 M10 2 - SVOR 30X60X2 M10 L PP
SVOR 30X60X2 M10 L PP 30 60 5 36 20 M10 2 - SVOR 35X20X1,5 M8
SVOR 35X20X1,5 M8 35 20 5 33 20 M8 1,5 - SVOR 35X20X1-1,5 M8
SVOR 35X20X1-1,5 M8 35 20 5 33 20 M8 1-1,5 - SVOR 40X20X1,2 M8
SVOR 40X20X1,2 M8 40 20 5 38 20 M8 1,2 - SVOR 50X30X1,5 M10
SVOR 50X30X1,5 M10 50 30 5 38 20 M10 1,5 - SVOR 60X30X2 M10 PP
SVOR 60X30X2 M10 PP 60 30 5 38 20 M10 2 - SVOR 60X30X2 M8 PP
SVOR 60X30X2 M8 PP 60 30 5 38 20 M8 2
Login to get price and discount information for all products.
