Connector - KVW/RE

Connector made of PA 6 for rectangular tubes

Your session has expired, please log in again.

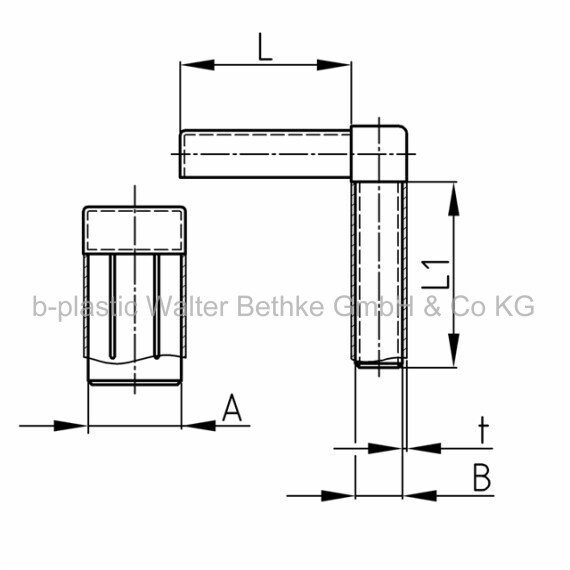

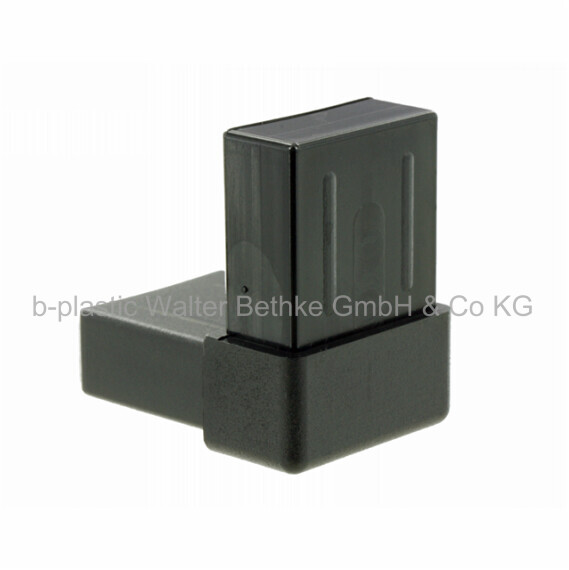

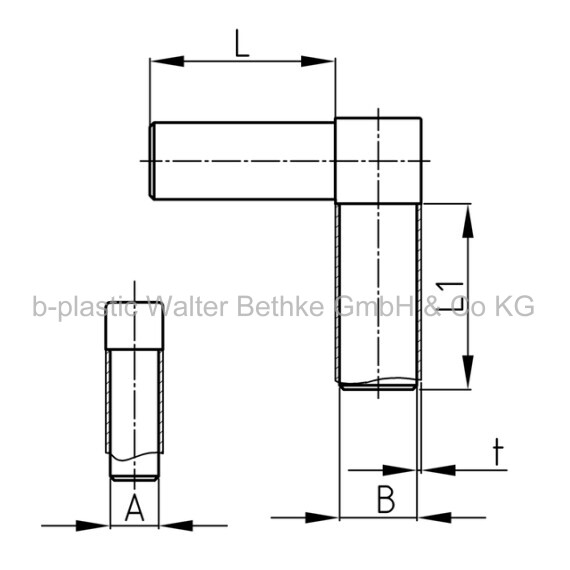

KVW/RE - two pieces - flat
KVW/RE - one-piece - upright
KVW/RE - one-piece - upright
KVW/RE - two pieces - flat
KVW/RE - one-piece - upright
KVW/RE - one-piece - upright
KVW/RE - one-piece - upright
KVW/RE - two pieces - flat
KVW/RE - one-piece - upright
KVW/RE - one-piece - upright
KVW/RE - two pieces - flat
KVW/RE - one-piece - upright
KVW/RE - one-piece - upright
KVW/RE - two pieces - flat
PDF data sheet
  • Polyamide 6 (PA 6)
black
  • For rectangular tubes to be connected together on edge.
  • *) = For rectangular tubes to be connected flat together.
  • For low to medium static load.
  • One-piece variants cannot be retrofitted with a steel core.
  • Two-part versions can be retrofitted with steel core.
  • Two-piece variants are supplied unassembled.
  • F = flat

Configure your article. Enter multiple parameters to get the best result.

A in mm:

B in mm:

L in mm:

L1 in mm:

t in mm:

Your article results:

  • Order-No. A
    mm    		B
    mm    		L
    mm    		L1
    mm    		t
    mm
  • KVW 30x15x1,5, einteilig
    KVW 30x15x1,5, einteilig 301525251,5
  • KVW 50x30x2, einteilig
    KVW 50x30x2, einteilig 503032322
  • KVW 50x30x2 F, zweiteilig *
    KVW 50x30x2 F, zweiteilig * 305040402
