Assembled expander connector - EVQMH

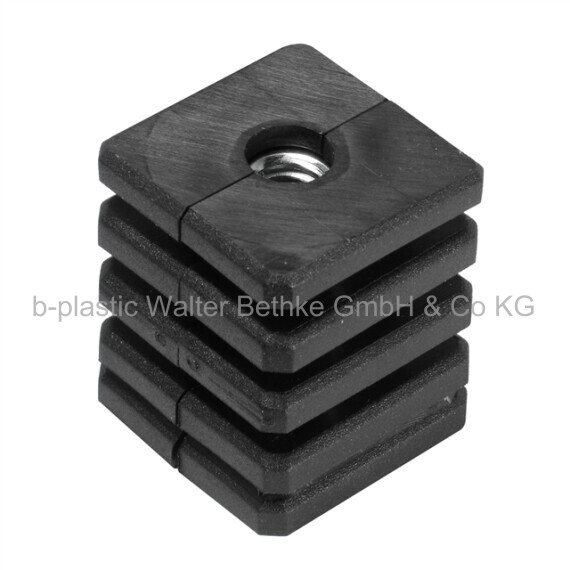

Assembled expander connectors without collar made of PA for square tubes with one hexagon nut (rear)

Your session has expired, please log in again.
EVQMH
EVQMH
EVQMH
EVQMH
EVQMH
EVQMH
EVQMH
EVQMH
EVQMH
PDF data sheet
  • Base body: Polyamide (PA)
  • Nut: zinc-plated steel
black

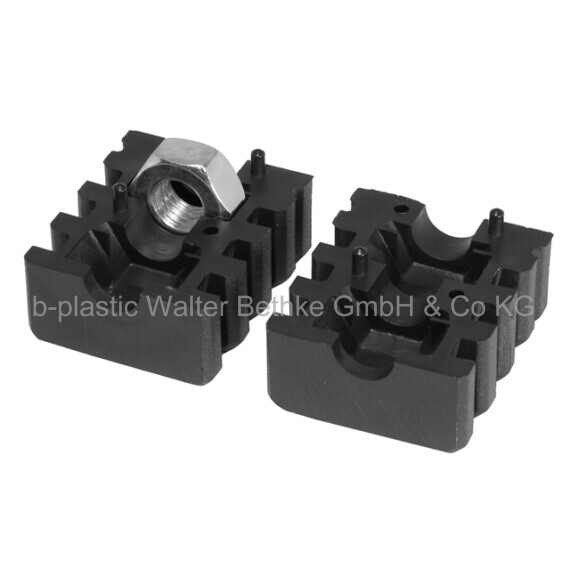

  • These two-part expander connectors without collar have tapered conical cavities for hexagon nuts or screws. Tightening of the thread presses the connector against inner tube wall (rawle plug effect), providing a connection resistand to tension. The intensitiy of this resistance depends to a degree from the quality of the tubes (tolerances, roughness, welding seam, etc.) and as well the torque of the tightening. We advise to check the application beforehand.
  • Stepped bores in the tube (outer bore larger than the diameter of the screw head, inner hole suitable for the respective thread) and use of slotted or hexagon socket screws allow high extraction forces without deformation of the tube wall.
  • Right-angled connection to trusses
  • Tube extensions (1 expander with nut and 1 expander with screw)
  • Subsequent installation of shelf compartments in already existing constructions
  • Frequently disassembled and reassembled racks
  • Invisible connections
  • Order-related production for individual article sizes! Please ask for minimum quantity.
  • SO = this dimension has an easier fit than standard and can be pressed in to standard wall thickness without the help of tools

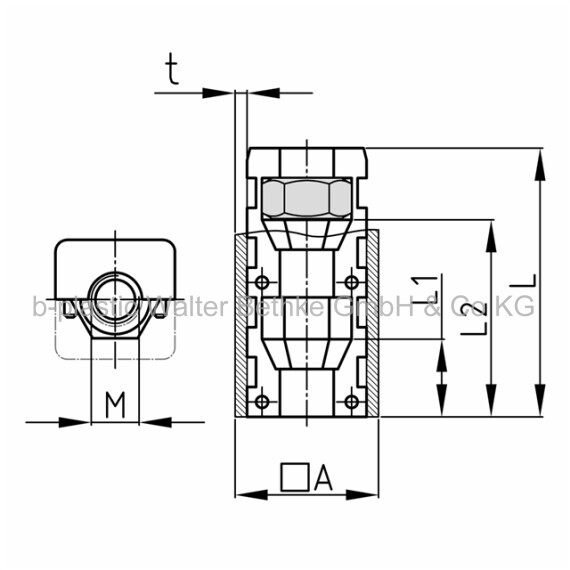

Configure your article. Enter multiple parameters to get the best result.

A in mm:

L in mm:

L1 in mm:

L2 in mm:

M:

t in mm:

Your article results:

  • EVQMH 15x15x1 / M6
    EVQMH 15x15x1 / M6 15421232M61
  • EVQMH 18x18x1,5 / M8
    EVQMH 18x18x1,5 / M8 18431232M81,5
  • EVQMH 20x20x1 / M6
    EVQMH 20x20x1 / M6 20421232M61
  • EVQMH 20x20x1 / M8
    EVQMH 20x20x1 / M8 20431232M81
  • EVQMH 20x20x1,5 / M6
    EVQMH 20x20x1,5 / M6 20421232M61,5
  • EVQMH 20x20x1,5 / M6 SO
    EVQMH 20x20x1,5 / M6 SO 20421232M61,5
  • EVQMH 20x20x1,5 / M8
    EVQMH 20x20x1,5 / M8 20431232M81,5
  • EVQMH 20x20x2 / M8
    EVQMH 20x20x2 / M8 20431232M82
  • EVQMH 22x22x1,5 / M6
    EVQMH 22x22x1,5 / M6 22411232M61,5
  • EVQMH 22x22x1,5 / M8
    EVQMH 22x22x1,5 / M8 22421232M81,5
  • EVQMH 25x25x1,5 / M8
    EVQMH 25x25x1,5 / M8 25431232M81,5
  • EVQMH 25x25x1,5 / M10
    EVQMH 25x25x1,5 / M10 25421030M101,5
  • EVQMH 25x25x2 / M8
    EVQMH 25x25x2 / M8 25431232M82
  • EVQMH 30x30x1,5 / M 8
    EVQMH 30x30x1,5 / M 8 30411230M81,5
  • EVQMH 30x30x1,5 / M10
    EVQMH 30x30x1,5 / M10 30421030M101,5
  • EVQMH 30x30x2 / M8
    EVQMH 30x30x2 / M8 30411232M82
  • EVQMH 30x30x2 / M10
    EVQMH 30x30x2 / M10 30431030M102
  • EVQMH 35x35x2 / M10
    EVQMH 35x35x2 / M10 35421030M102
  • EVQMH 40x40x1,2 / M10
    EVQMH 40x40x1,2 / M10 40401030M101,2
  • EVQMH 40x40x1,2 / M12
    EVQMH 40x40x1,2 / M12 4040828M121,2
  • EVQMH 40x40x2 / M10
    EVQMH 40x40x2 / M10 40421030M102
  • EVQMH 40x40x3 / M8
    EVQMH 40x40x3 / M8 40421131M83
  • EVQMH 40x40x3 / M10
    EVQMH 40x40x3 / M10 40411030M103
  • EVQMH 45x45x1,5 / M10
    EVQMH 45x45x1,5 / M10 4539626M101,5
