Assembled expander connector - EVRUMH

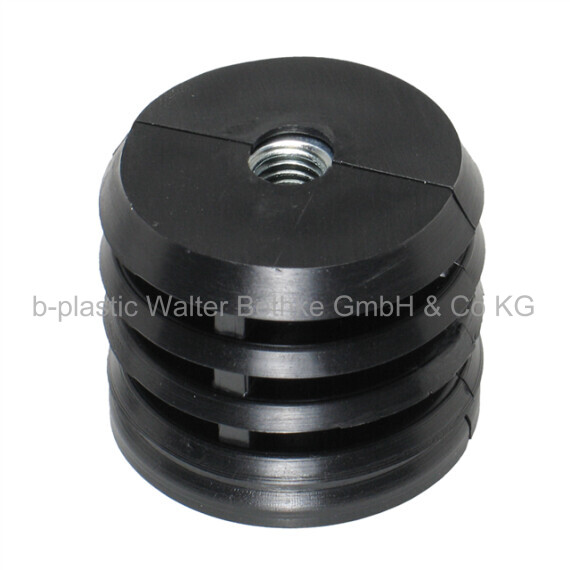

Assembled expander connectors without collar made of PA for round tubes with one hexagon nut (rear)

Your session has expired, please log in again.
EVRUMH
EVRUMH
EVRUMH
EVRUMH M 8 + EVDRAD
EVDRAD
EVRUMH
EVRUMH
EVRUMH M 8 + EVDRAD
EVDRAD
EVRUMH
EVRUMH
EVRUMH
EVRUMH M 8 + EVDRAD
EVDRAD
EVRUMH
EVRUMH
EVRUMH
EVRUMH M 8 + EVDRAD
PDF data sheet
  • Base body: Polyamide (PA)
  • Nut: zinc-plated steel
black

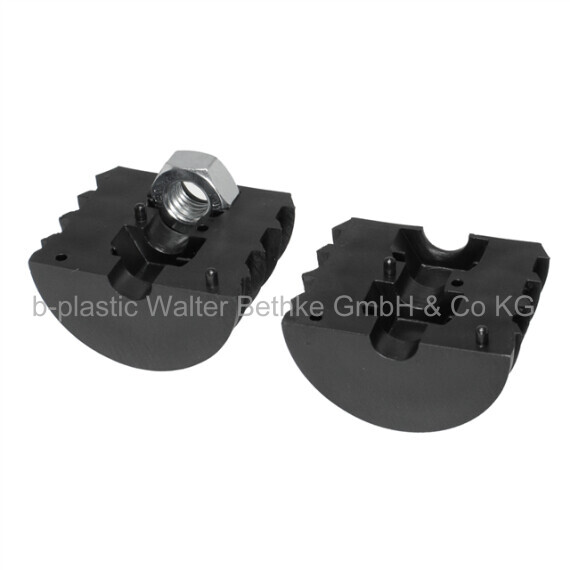

  • These two-part expander connectors without collar have tapered conical cavities for hexagon nuts or screws. Tightening of the thread presses the connector against inner tube wall (rawle plug effect), providing a connection resistand to tension. The intensitiy of this resistance depends to a degree from the quality of the tubes (tolerances, roughness, welding seam, etc.) and as well the torque of the tightening. We advise to check the application beforehand.
  • Stepped bores in the tube (outer bore larger than the diameter of the screw head, inner hole suitable for the respective thread) and use of slotted or hexagon socket screws allow high extraction forces without deformation of the tube wall.
  • Right-angled connection to trusses
  • Tube extensions (1 expander with nut and 1 expander with screw)
  • Subsequent installation of shelf compartments in already existing constructions
  • Frequently disassembled and reassembled racks
  • Invisible connections
  • Right-angled connection of round tubes with different diameters (only for thread M8 and in combination with group "EVDRAD" - on request)
  • Order-related production for individual article sizes! Please ask for minimum quantity.
  • OL = without ribs
  • SO = Special version; dimensions deviate from series standard
  • SO* = special version without mounting for saddle spacer EVDRAD

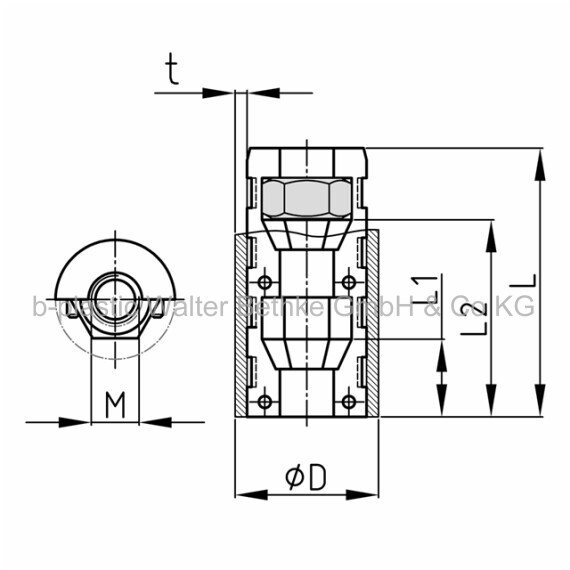

Configure your article. Enter multiple parameters to get the best result.

D in mm:

L in mm:

L1 in mm:

L2 in mm:

M:

t in mm:

Your article results:

  • Order-No. D
    mm    		L
    mm    		L1
    mm    		L2
    mm    		Mt
    mm
  • EVRUMH 16x0,75 / M6
    EVRUMH 16x0,75 / M6 16431232M60,75
  • EVRUMH 16x1 / M6
    EVRUMH 16x1 / M6 16421232M61
  • EVRUMH 19x1,5 / M6
    EVRUMH 19x1,5 / M6 19391232M61,5
  • EVRUMH 20x1 / M6
    EVRUMH 20x1 / M6 20421232M61
  • EVRUMH 20x1 / M8
    EVRUMH 20x1 / M8 20421232M81
  • EVRUMH 20x1 / M8 SO*
    EVRUMH 20x1 / M8 SO* 20421030M81
  • EVRUMH 20x1,5 / M6
    EVRUMH 20x1,5 / M6 20421232M61,5
  • EVRUMH 20x1,5 / M8
    EVRUMH 20x1,5 / M8 20421232M81,5
  • EVRUMH 20x1,5 / M8 SO*
    EVRUMH 20x1,5 / M8 SO* 20421030M81,5
  • EVRUMH 20x2 / M8 SO*
    EVRUMH 20x2 / M8 SO* 20421030M82
  • EVRUMH 22x1 / M5
    EVRUMH 22x1 / M5 22421433M51
  • EVRUMH 22x1 / M6
    EVRUMH 22x1 / M6 22381232M61
  • EVRUMH 22x1 / M8
    EVRUMH 22x1 / M8 22421232M81
  • EVRUMH 22x1,2 / M8
    EVRUMH 22x1,2 / M8 22421030M81,2
  • EVRUMH 22x1,2 / M8 DIN 985
    EVRUMH 22x1,2 / M8 DIN 985 22421030M81,2
  • EVRUMH 22x1,5 / M6
    EVRUMH 22x1,5 / M6 22421232M61,5
  • EVRUMH 22x1,5 / M8
    EVRUMH 22x1,5 / M8 22301132M81,5
  • EVRUMH 22x1,5 / M8 DIN 985
    EVRUMH 22x1,5 / M8 DIN 985 22421232M81,5
  • EVRUMH 22x1,5 / M8 SO*
    EVRUMH 22x1,5 / M8 SO* 22421030M81,5
  • EVRUMH 22x1,5/M8 SO* DIN 985
    EVRUMH 22x1,5/M8 SO* DIN 985 22421030M81,5
  • EVRUMH 25x1 / M6
    EVRUMH 25x1 / M6 25421232M61
  • EVRUMH 25x1,5 / M6
    EVRUMH 25x1,5 / M6 25421232M61,5
  • EVRUMH 25x1,5 / M8
    EVRUMH 25x1,5 / M8 25421131M81,5
  • EVRUMH 25x1,5 / M8 OL
    EVRUMH 25x1,5 / M8 OL 25431232M81,5
  • EVRUMH 25x1,8 / M8 OL
    EVRUMH 25x1,8 / M8 OL 25431030M81,8
  • EVRUMH 25x2 / M8 OL
    EVRUMH 25x2 / M8 OL 25431030M82
  • EVRUMH 28x1,5 / M6
    EVRUMH 28x1,5 / M6 28411232M61,5
  • EVRUMH 28x1,5 / M8
    EVRUMH 28x1,5 / M8 28421232M81,5
  • EVRUMH 28x2 / M8
    EVRUMH 28x2 / M8 28421232M81,5
  • EVRUMH 30x1 / M6 SO
    EVRUMH 30x1 / M6 SO 30431232M62
  • EVRUMH 30x1 / M8
    EVRUMH 30x1 / M8 30421232M81
  • EVRUMH 30x1,5 / M8
    EVRUMH 30x1,5 / M8 30421232M81,5
  • EVRUMH 30x1,5 / M10
    EVRUMH 30x1,5 / M10 30421030M101,5
  • EVRUMH 30x2 / M6 SO
    EVRUMH 30x2 / M6 SO 3035823M62
  • EVRUMH 30x2 / M8
    EVRUMH 30x2 / M8 30421232M82
  • EVRUMH 30x2 / M10
    EVRUMH 30x2 / M10 30421030M102
  • EVRUMH 32x1,2 / M6
    EVRUMH 32x1,2 / M6 32421232M61,2
  • EVRUMH 32x1,5 / M10
    EVRUMH 32x1,5 / M10 32421030M101,5
  • EVRUMH 32x2 / M6
    EVRUMH 32x2 / M6 32431232M62
  • EVRUMH 32x2 / M10
    EVRUMH 32x2 / M10 32421030M102
  • EVRUMH 32x2,5 / M10
    EVRUMH 32x2,5 / M10 32421030M102,5
  • EVRUMH 33,5x2 / M8
    EVRUMH 33,5x2 / M8 33,5421030M82
  • EVRUMH 34x2 / M10
    EVRUMH 34x2 / M10 34431030M102
  • EVRUMH 35x1,5 / M6
    EVRUMH 35x1,5 / M6 35401232M61,5
  • EVRUMH 35x1,5 / M10
    EVRUMH 35x1,5 / M10 35391029M101,5
  • EVRUMH 35x2 / M10
    EVRUMH 35x2 / M10 35431030M102
  • EVRUMH 35x2,5 / M6
    EVRUMH 35x2,5 / M6 35421232M62,5
  • EVRUMH 37,5x1,5 / M8
    EVRUMH 37,5x1,5 / M8 37,5431030M81,5
  • EVRUMH 37,5x1,5 / M10
    EVRUMH 37,5x1,5 / M10 37,5421030M101,5
  • EVRUMH 38x1,2 / M10
    EVRUMH 38x1,2 / M10 38421030M101,2
  • EVRUMH 40x1,5 / M8
    EVRUMH 40x1,5 / M8 40421232M81,5
  • EVRUMH 40x1,5 / M10
    EVRUMH 40x1,5 / M10 40441030M101,5
  • EVRUMH 40x2 / M10
    EVRUMH 40x2 / M10 40421030M102
  • EVRUMH 40x2,5 / M6
    EVRUMH 40x2,5 / M6 40431232M62,5
  • EVRUMH 42x1,5 / M10
    EVRUMH 42x1,5 / M10 42411030M101,5
  • EVRUMH 42x2 / M10
    EVRUMH 42x2 / M10 42431030M102
  • EVRUMH 45x2 / M10
    EVRUMH 45x2 / M10 45421030M102
  • EVRUMH 48x4 / M8
    EVRUMH 48x4 / M8 48421030M84
  • EVRUMH 50x1,5 / M10
    EVRUMH 50x1,5 / M10 50421030M101,5
  • EVRUMH 60x1,6 / M10
    EVRUMH 60x1,6 / M10 60401030M101,6
  • EVRUMH 60x2 / M8
    EVRUMH 60x2 / M8 60411232M82
  • EVRUMH 60,3x1,5 / M10
    EVRUMH 60,3x1,5 / M10 60,343,51030M101,5
  • EVRUMH 80x2 / M10
    EVRUMH 80x2 / M10 80371028M102
