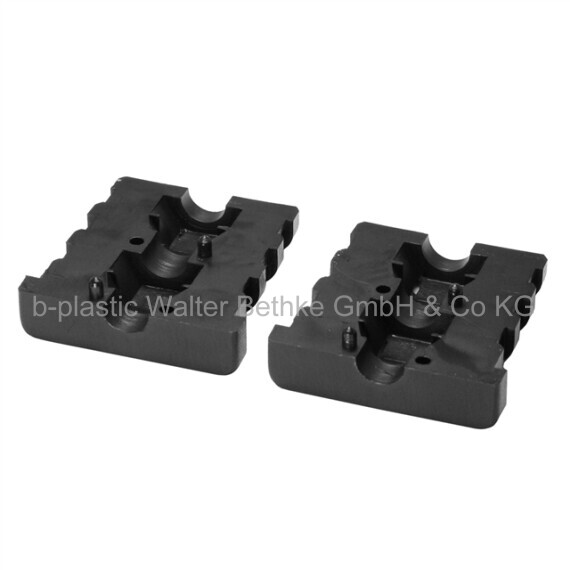

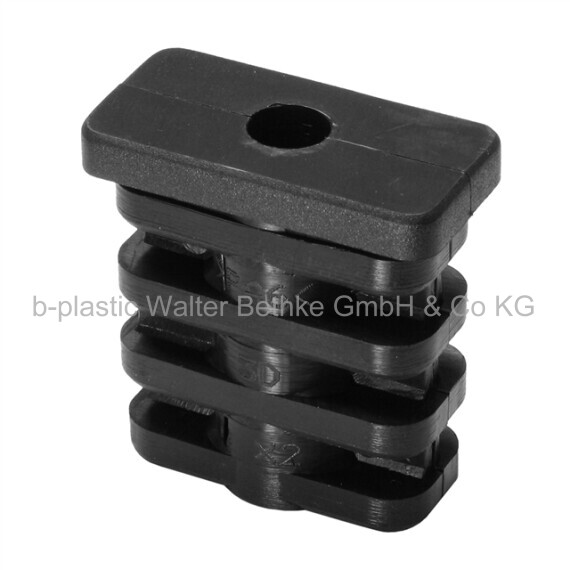

Assembled expander plug - EBR
Assembled expander plugs with collar made of PA for rectangular tubes, hexagon nuts or screws plugged
Configure your article. Enter multiple parameters to get the best result.

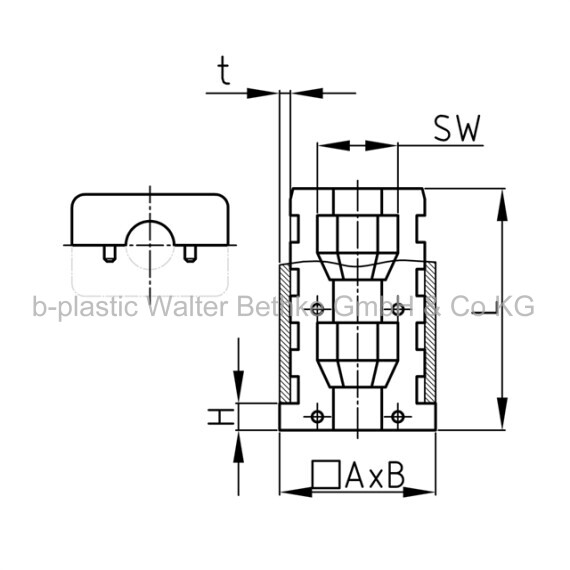

A in mm:
B in mm:
H in mm:
L in mm:
WAF in mm:
t in mm:
F max. in kg:
Your article results:
Order-No. A
mmB
mmH
mmL
mmWAF
mmt
mmF max.
kg- EBR 30x20x1,5 / M8
EBR 30x20x1,5 / M8 30 20 5 42 13 1,5 300 - EBR 40x20x1,5 / M8
EBR 40x20x1,5 / M8 40 20 5 41 13 1,5 300 - EBR 40x20x2 / M8
EBR 40x20x2 / M8 40 20 5 42 13 2 300 - EBR 40x30x2 / M10
EBR 40x30x2 / M10 40 30 5 42 17 2 300 - EBR 50x25x1,2-1,6 / M10
EBR 50x25x1,2-1,6 / M10 50 25 5 42 17 1,2-1,6 300 - EBR 50x25x1,2-1,6 / M12
EBR 50x25x1,2-1,6 / M12 50 25 5 42 19 1,2-1,6 300 - EBR 50x25x2 / M10
EBR 50x25x2 / M10 50 25 5 43 17 2 300 - EBR 50x30x2 / M10
EBR 50x30x2 / M10 50 30 5 43 17 2 300 - EBR 60x30x2 / M10
EBR 60x30x2 / M10 60 30 5 43,5 17 2 300 - EBR 60x30x2 / M12
EBR 60x30x2 / M12 60 30 5 43,5 19 2 300
Login to get price and discount information for all products.
Product variants
EBRMH
Assembled expander plugs with collar made of PA for rectangular tubes with one hexagon nut (rear)
EBRMV
Assembled expander plugs with collar made of PA for rectangular tubes with one hexagon nut (in the front)
EBRM2
Assembled expander plugs with collar made of PA for rectangular tubes with two hexagon nuts
