Assembled expander plug - EBRMH

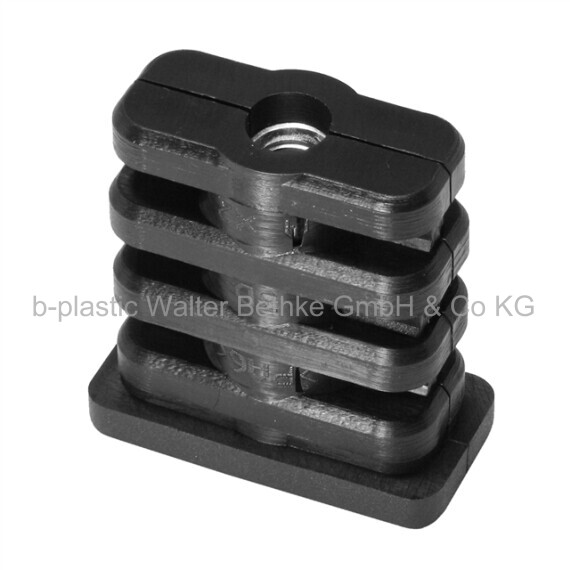

Assembled expander plugs with collar made of PA for rectangular tubes with one hexagon nut (rear)

Your session has expired, please log in again.
EBRMH
EBRMH
EBRMH
EBRMH
EBRMH
EBRMH
PDF data sheet
  • Base body: Polyamide (PA)
  • Nut: zinc-plated steel
black

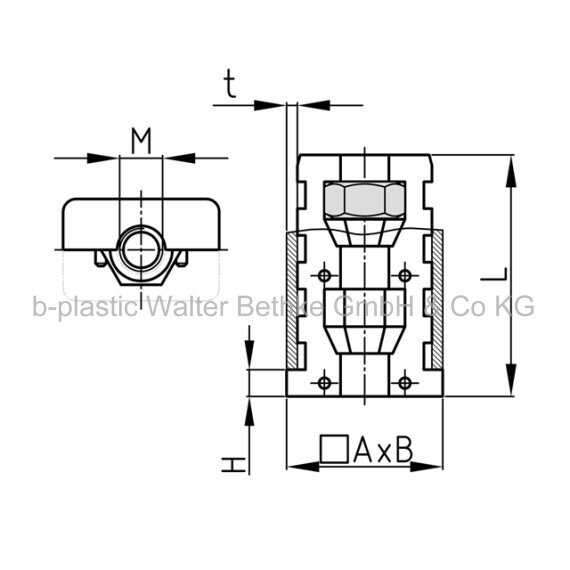

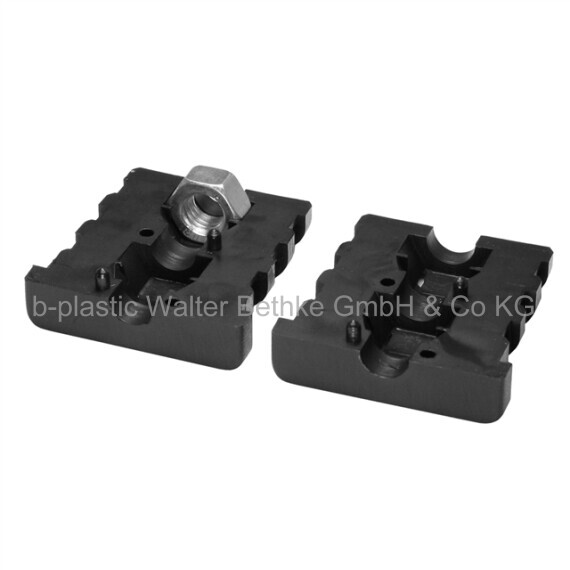

  • These two-piece expander bushes with collar have conical chambers for hexagon nuts and screws. Tightening of the thread presses the outer wall of the insert against the inner tube wall (rawle plug effect). This effect requires entire tightening of the thread.
  • The bushings are designed for precisely defined wall thicknesses according to the specifications in the table.
  • Use as threaded plugs in combination with adjustable feet or adjusting screws -> see category "Adjustment and levelling parts" - Expander effect only with fully tightened adjusting screw!
  • Tube extensions (1 expander with nut and 1 expander with screw)
  • The load capacity data refer to the use in steel tubes.
  • Order-related production for individual article sizes! Please ask for minimum quantity.
