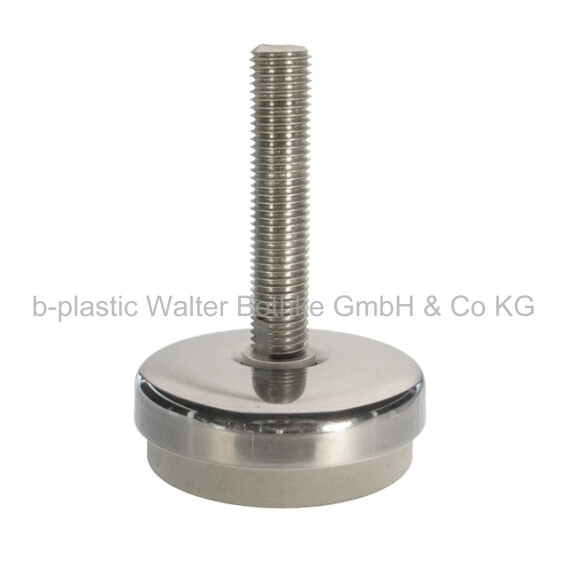

Machine foot - MFK
Machine feet made of stainless steel with rubber base to cope slopes on the floor and equipment
Your session has expired, please log in again.

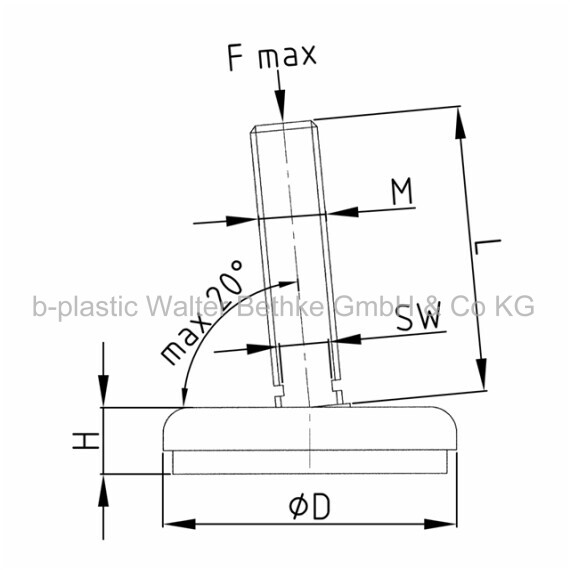

Configure your article. Enter multiple parameters to get the best result.
D in mm:
F max. in kg:
H in mm:
L in mm:
M:
WAF in mm:
Your article results:
Order-No. D
mmF max.
kgH
mmL
mmM WAF
mm- MFK 75 / M12x50
MFK 75 / M12x50 75 800 21 50 M12 10 - MFK 75 / M12x70
MFK 75 / M12x70 75 800 21 70 M12 10 - MFK 75 / M12x100
MFK 75 / M12x100 75 800 21 100 M12 10 - MFK 75 / M12x150
MFK 75 / M12x150 75 800 21 150 M12 10 - MFK 75 / M12x180
MFK 75 / M12x180 75 800 21 180 M12 10 - MFK 75 / M16x70
MFK 75 / M16x70 75 800 21 70 M16 13 - MFK 75 / M16x100
MFK 75 / M16x100 75 800 21 100 M16 13 - MFK 75 / M16x150
MFK 75 / M16x150 75 800 21 150 M16 13 - MFK 75 / M16x180
MFK 75 / M16x180 75 800 21 180 M16 13 - MFK 75 / M16x230
MFK 75 / M16x230 75 800 21 230 M16 13 - MFK 75 / M16x310
MFK 75 / M16x310 75 800 21 310 M16 13 - MFK 75 / M20x70
MFK 75 / M20x70 75 800 21 70 M20 15 - MFK 75 / M20x100
MFK 75 / M20x100 75 800 21 100 M20 15 - MFK 75 / M20x150
MFK 75 / M20x150 75 800 21 150 M20 15 - MFK 75 / M20x180
MFK 75 / M20x180 75 800 21 180 M20 15 - MFK 75 / M20x230
MFK 75 / M20x230 75 800 21 230 M20 15 - MFK 75 / M20x310
MFK 75 / M20x310 75 800 21 310 M20 15 - MFK 75 / M24x70
MFK 75 / M24x70 75 800 21 70 M24 19 - MFK 75 / M24x100
MFK 75 / M24x100 75 800 21 100 M24 19 - MFK 75 / M24x150
MFK 75 / M24x150 75 800 21 150 M24 19 - MFK 75 / M24x180
MFK 75 / M24x180 75 800 21 180 M24 19 - MFK 75 / M24x230
MFK 75 / M24x230 75 800 21 230 M24 19 - MFK 75 / M24x310
MFK 75 / M24x310 75 800 21 310 M24 19 - MFK 75 / M30x180
MFK 75 / M30x180 75 800 21 180 M30 24 - MFK 75 / M30x230
MFK 75 / M30x230 75 800 21 230 M30 24 - MFK 100 / M12x50
MFK 100 / M12x50 100 2000 36 50 M12 10 - MFK 100 / M12x70
MFK 100 / M12x70 100 2000 36 70 M12 10 - MFK 100 / M12x100
MFK 100 / M12x100 100 2000 36 100 M12 10 - MFK 100 / M12x150
MFK 100 / M12x150 100 2000 36 150 M12 10 - MFK 100 / M12x180
MFK 100 / M12x180 100 2000 36 180 M12 10 - MFK 100 / M16x70
MFK 100 / M16x70 100 2000 36 70 M16 13 - MFK 100 / M16x100
MFK 100 / M16x100 100 2000 36 100 M16 13 - MFK 100 / M16x150
MFK 100 / M16x150 100 2000 36 150 M16 13 - MFK 100 / M16x180
MFK 100 / M16x180 100 2000 36 180 M16 13 - MFK 100 / M16x230
MFK 100 / M16x230 100 2000 36 230 M16 13 - MFK 100 / M16x310
MFK 100 / M16x310 100 2000 36 310 M16 13 - MFK 100 / M20x70
MFK 100 / M20x70 100 2000 36 70 M20 15 - MFK 100 / M20x100
MFK 100 / M20x100 100 2000 36 100 M20 15 - MFK 100 / M20x150
MFK 100 / M20x150 100 2000 36 150 M20 15 - MFK 100 / M20x180
MFK 100 / M20x180 100 2000 36 180 M20 15 - MFK 100 / M20x230
MFK 100 / M20x230 100 2000 36 230 M20 15 - MFK 100 / M20x310
MFK 100 / M20x310 100 2000 36 310 M20 15 - MFK 100 / M24x70
MFK 100 / M24x70 100 2000 36 70 M24 19 - MFK 100 / M24x100
MFK 100 / M24x100 100 2000 36 100 M24 19 - MFK 100 / M24x150
MFK 100 / M24x150 100 2000 36 150 M24 19 - MFK 100 / M24x180
MFK 100 / M24x180 100 2000 36 180 M24 19 - MFK 100 / M24x230
MFK 100 / M24x230 100 2000 36 230 M24 19 - MFK 100 / M24x310
MFK 100 / M24x310 100 2000 36 310 M24 19 - MFK 100 / M30x70
MFK 100 / M30x70 100 2000 36 70 M30 24 - MFK 100 / M30x100
MFK 100 / M30x100 100 2000 36 100 M30 24 - MFK 100 / M30x150
MFK 100 / M30x150 100 2000 36 150 M30 24 - MFK 100 / M30x180
MFK 100 / M30x180 100 2000 36 180 M30 24 - MFK 100 / M30x230
MFK 100 / M30x230 100 2000 36 230 M30 24 - MFK 100 / M30x310
MFK 100 / M30x310 100 2000 36 310 M30 24 - MFK 125 / M12x50
MFK 125 / M12x50 125 3000 40 50 M12 10 - MFK 125 / M12x70
MFK 125 / M12x70 125 3000 40 70 M12 10 - MFK 125 / M12x100
MFK 125 / M12x100 125 3000 40 100 M12 10 - MFK 125 / M12x150
MFK 125 / M12x150 125 3000 40 150 M12 10 - MFK 125 / M12x180
MFK 125 / M12x180 125 3000 40 180 M12 10 - MFK 125 / M16x70
MFK 125 / M16x70 125 3000 40 70 M16 13 - MFK 125 / M16x100
MFK 125 / M16x100 125 3000 40 100 M16 13 - MFK 125 / M16x150
MFK 125 / M16x150 125 3000 40 150 M16 13 - MFK 125 / M16x180
MFK 125 / M16x180 125 3000 40 180 M16 13 - MFK 125 / M16x230
MFK 125 / M16x230 125 3000 40 230 M16 13 - MFK 125 / M16x310
MFK 125 / M16x310 125 3000 40 310 M16 13 - MFK 125 / M20x70
MFK 125 / M20x70 125 3000 40 70 M20 15 - MFK 125 / M20x100
MFK 125 / M20x100 125 3000 40 100 M20 15 - MFK 125 / M20x150
MFK 125 / M20x150 125 3000 40 150 M20 15 - MFK 125 / M20x180
MFK 125 / M20x180 125 3000 40 180 M20 15 - MFK 125 / M20x230
MFK 125 / M20x230 125 3000 40 230 M20 15 - MFK 125 / M20x310
MFK 125 / M20x310 125 3000 40 310 M20 15 - MFK 125 / M24x70
MFK 125 / M24x70 125 3000 40 70 M24 19 - MFK 125 / M24x100
MFK 125 / M24x100 125 3000 40 100 M24 19 - MFK 125 / M24x150
MFK 125 / M24x150 125 3000 40 150 M24 19 - MFK 125 / M24x180
MFK 125 / M24x180 125 3000 40 180 M24 19 - MFK 125 / M24x230
MFK 125 / M24x230 125 3000 40 230 M24 19 - MFK 125 / M24x310
MFK 125 / M24x310 125 3000 40 310 M24 19 - MFK 125 / M30x70
MFK 125 / M30x70 125 3000 40 70 M30 24 - MFK 125 / M30x100
MFK 125 / M30x100 125 3000 40 100 M30 24 - MFK 125 / M30x150
MFK 125 / M30x150 125 3000 40 150 M30 24 - MFK 125 / M30x180
MFK 125 / M30x180 125 3000 40 180 M30 24 - MFK 125 / M30x230
MFK 125 / M30x230 125 3000 40 230 M30 24 - MFK 125 / M30x310
MFK 125 / M30x310 125 3000 40 310 M30 24
