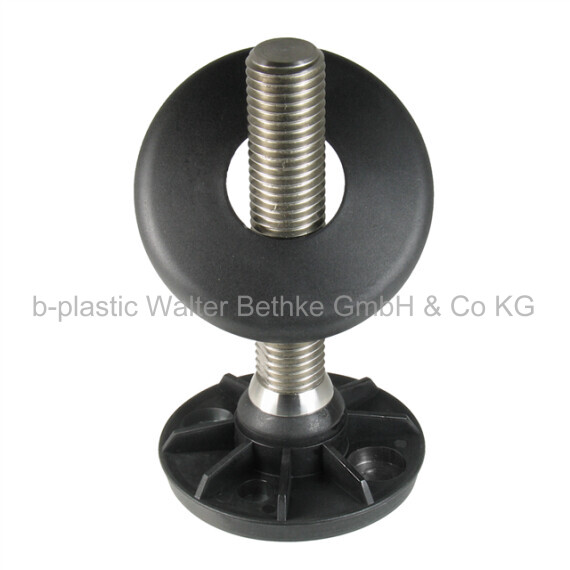

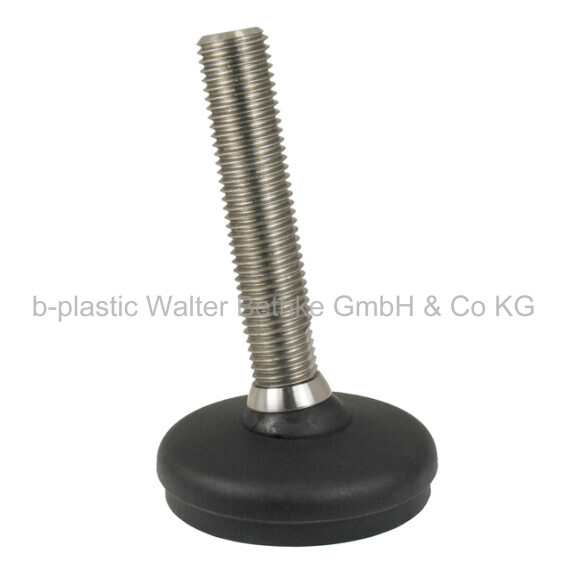

Adjustable foot - MFHP
Adjustable feet made of glass fibre reinforced polyamide with plastic base and stainless steel thread
Your session has expired, please log in again.
Configure your article. Enter multiple parameters to get the best result.
D in mm:
H in mm:
B in mm:
d in mm:
F max. in kg:
M:
L in mm:
WAF in mm:
Your article results:
Order-No. D
mmH
mmB
mmd
mmF max.
kgM L
mmWAF
mm- MFHP 60 / M12x70
MFHP 60 / M12x70 60 31 1200 M12 70 10 - MFHP 60 / M12x100
MFHP 60 / M12x100 60 31 1200 M12 100 10 - MFHP 60 / M12x150
MFHP 60 / M12x150 60 31 1200 M12 150 10 - MFHP 60 / M12x180
MFHP 60 / M12x180 60 31 1200 M12 180 10 - MFHP 60 / M12x230
MFHP 60 / M12x230 60 31 1200 M12 230 10 - MFHP 60 / M16x70
MFHP 60 / M16x70 60 31 1200 M16 70 13 - MFHP 60 / M16x100
MFHP 60 / M16x100 60 31 1200 M16 100 13 - MFHP 60 / M16x150
MFHP 60 / M16x150 60 31 1200 M16 150 13 - MFHP 60 / M16x180
MFHP 60 / M16x180 60 31 1200 M16 180 13 - MFHP 60 / M16x230
MFHP 60 / M16x230 60 31 1200 M16 230 13 - MFHP 60 / M16x310
MFHP 60 / M16x310 60 31 1200 M16 310 13 - MFHP 60 / M20x70
MFHP 60 / M20x70 60 31 1200 M20 70 17 - MFHP 60 / M20x100
MFHP 60 / M20x100 60 31 1200 M20 100 17 - MFHP 60 / M20x150
MFHP 60 / M20x150 60 31 1200 M20 150 17 - MFHP 60 / M20x180
MFHP 60 / M20x180 60 31 1200 M20 180 17 - MFHP 60 / M20x230
MFHP 60 / M20x230 60 31 1200 M20 230 17 - MFHP 60 / M20x310
MFHP 60 / M20x310 60 31 1200 M20 310 17 - MFHP 60 / M24x70
MFHP 60 / M24x70 60 31 1200 M24 70 19 - MFHP 60 / M24x100
MFHP 60 / M24x100 60 31 1200 M24 100 19 - MFHP 60 / M24x150
MFHP 60 / M24x150 60 31 1200 M24 150 19 - MFHP 60 / M24x180
MFHP 60 / M24x180 60 31 1200 M24 180 19 - MFHP 60 / M24x230
MFHP 60 / M24x230 60 31 1200 M24 230 19 - MFHP 60 / M24x310
MFHP 60 / M24x310 60 31 1200 M24 310 19 - MFHP 80 / M12x70
MFHP 80 / M12x70 80 31 27 9 1200 M12 70 10 - MFHP 80 / M12x100
MFHP 80 / M12x100 80 31 27 9 1200 M12 100 10 - MFHP 80 / M12x150
MFHP 80 / M12x150 80 31 27 9 1200 M12 150 10 - MFHP 80 / M12x180
MFHP 80 / M12x180 80 31 27 9 1200 M12 180 10 - MFHP 80 / M12x230
MFHP 80 / M12x230 80 31 27 9 1200 M12 230 10 - MFHP 80 / M16x70
MFHP 80 / M16x70 80 31 27 9 1200 M16 70 13 - MFHP 80 / M16x100
MFHP 80 / M16x100 80 31 27 9 1200 M16 100 13 - MFHP 80 / M16x150
MFHP 80 / M16x150 80 31 27 9 1200 M16 150 13 - MFHP 80 / M16x180
MFHP 80 / M16x180 80 31 27 9 1200 M16 180 13 - MFHP 80 / M16x230
MFHP 80 / M16x230 80 31 27 9 1200 M16 230 13 - MFHP 80 / M16x310
MFHP 80 / M16x310 80 31 27 9 1200 M16 310 13 - MFHP 80 / M20x70
MFHP 80 / M20x70 80 31 27 9 1200 M20 70 17 - MFHP 80 / M20x100
MFHP 80 / M20x100 80 31 27 9 1200 M20 100 17 - MFHP 80 / M20x150
MFHP 80 / M20x150 80 31 27 9 1200 M20 150 17 - MFHP 80 / M20x180
MFHP 80 / M20x180 80 31 27 9 1200 M20 180 17 - MFHP 80 / M20x230
MFHP 80 / M20x230 80 31 27 9 1200 M20 230 17 - MFHP 80 / M20x310
MFHP 80 / M20x310 80 31 27 9 1200 M20 310 17 - MFHP 80 / M24x70
MFHP 80 / M24x70 80 31 27 9 1200 M24 70 19 - MFHP 80 / M24x100
MFHP 80 / M24x100 80 31 27 9 1200 M24 100 19 - MFHP 80 / M24x150
MFHP 80 / M24x150 80 31 27 9 1200 M24 150 19 - MFHP 80 / M24x180
MFHP 80 / M24x180 80 31 27 9 1200 M24 180 19 - MFHP 80 / M24x230
MFHP 80 / M24x230 80 31 27 9 1200 M24 230 19 - MFHP 80 / M24x310
MFHP 80 / M24x310 80 31 27 9 1200 M24 310 19 - MFHP 100 / M12x70
MFHP 100 / M12x70 100 37 32 11 2000 M12 70 10 - MFHP 100 / M12x100
MFHP 100 / M12x100 100 37 32 11 2000 M12 100 10 - MFHP 100 / M12x150
MFHP 100 / M12x150 100 37 32 11 2000 M12 150 10 - MFHP 100 / M12x180
MFHP 100 / M12x180 100 37 32 11 2000 M12 180 10 - MFHP 100 / M12x230
MFHP 100 / M12x230 100 37 32 11 2000 M12 230 10 - MFHP 100 / M16x70
MFHP 100 / M16x70 100 37 32 11 2000 M16 70 13 - MFHP 100 / M16x100
MFHP 100 / M16x100 100 37 32 11 2000 M16 100 13 - MFHP 100 / M16x150
MFHP 100 / M16x150 100 37 32 11 2000 M16 150 13 - MFHP 100 / M16x180
MFHP 100 / M16x180 100 37 32 11 2000 M16 180 13 - MFHP 100 / M16x230
MFHP 100 / M16x230 100 37 32 11 2000 M16 230 13 - MFHP 100 / M16x310
MFHP 100 / M16x310 100 37 32 11 2000 M16 310 13 - MFHP 100 / M20x70
MFHP 100 / M20x70 100 37 32 11 2000 M20 70 17 - MFHP 100 / M20x100
MFHP 100 / M20x100 100 37 32 11 2000 M20 100 17 - MFHP 100 / M20x150
MFHP 100 / M20x150 100 37 32 11 2000 M20 150 17 - MFHP 100 / M20x180
MFHP 100 / M20x180 100 37 32 11 2000 M20 180 17 - MFHP 100 / M20x230
MFHP 100 / M20x230 100 37 32 11 2000 M20 230 17 - MFHP 100 / M20x310
MFHP 100 / M20x310 100 37 32 11 2000 M20 310 17 - MFHP 100 / M24x70
MFHP 100 / M24x70 100 37 32 11 2000 M24 70 19 - MFHP 100 / M24x100
MFHP 100 / M24x100 100 37 32 11 2000 M24 100 19 - MFHP 100 / M24x150
MFHP 100 / M24x150 100 37 32 11 2000 M24 150 19 - MFHP 100 / M24x180
MFHP 100 / M24x180 100 37 32 11 2000 M24 180 19 - MFHP 100 / M24x230
MFHP 100 / M24x230 100 37 32 11 2000 M24 230 19 - MFHP 100 / M24x310
MFHP 100 / M24x310 100 37 32 11 2000 M24 310 19 - MFHP 120 / M12x70
MFHP 120 / M12x70 120 37 40 11 2000 M12 70 10 - MFHP 120 / M12x100
MFHP 120 / M12x100 120 37 40 11 2000 M12 100 10 - MFHP 120 / M12x150
MFHP 120 / M12x150 120 37 40 11 2000 M12 150 10 - MFHP 120 / M12x180
MFHP 120 / M12x180 120 37 40 11 2000 M12 180 10 - MFHP 120 / M12x230
MFHP 120 / M12x230 120 37 40 11 2000 M12 230 10 - MFHP 120 / M16x70
MFHP 120 / M16x70 120 37 40 11 2000 M16 70 13 - MFHP 120 / M16x100
MFHP 120 / M16x100 120 37 40 11 2000 M16 100 13 - MFHP 120 / M16x150
MFHP 120 / M16x150 120 37 40 11 2000 M16 150 13 - MFHP 120 / M16x180
MFHP 120 / M16x180 120 37 40 11 2000 M16 180 13 - MFHP 120 / M16x230
MFHP 120 / M16x230 120 37 40 11 2000 M16 230 13 - MFHP 120 / M16x310
MFHP 120 / M16x310 120 37 40 11 2000 M16 310 13 - MFHP 120 / M20x70
MFHP 120 / M20x70 120 37 40 11 2000 M20 70 17 - MFHP 120 / M20x100
MFHP 120 / M20x100 120 37 40 11 2000 M20 100 17 - MFHP 120 / M20x150
MFHP 120 / M20x150 120 37 40 11 2000 M20 150 17 - MFHP 120 / M20x180
MFHP 120 / M20x180 120 37 40 11 2000 M20 180 17 - MFHP 120 / M20x230
MFHP 120 / M20x230 120 37 40 11 2000 M20 230 17 - MFHP 120 / M20x310
MFHP 120 / M20x310 120 37 40 11 2000 M20 310 17 - MFHP 120 / M24x70
MFHP 120 / M24x70 120 37 40 11 2000 M24 70 19 - MFHP 120 / M24x100
MFHP 120 / M24x100 120 37 40 11 2000 M24 100 19 - MFHP 120 / M24x150
MFHP 120 / M24x150 120 37 40 11 2000 M24 150 19 - MFHP 120 / M24x180
MFHP 120 / M24x180 120 37 40 11 2000 M24 180 19 - MFHP 120 / M24x230
MFHP 120 / M24x230 120 37 40 11 2000 M24 230 19 - MFHP 120 / M24x310
MFHP 120 / M24x310 120 37 40 11 2000 M24 310 19
