Adjustable foot - MFHPG

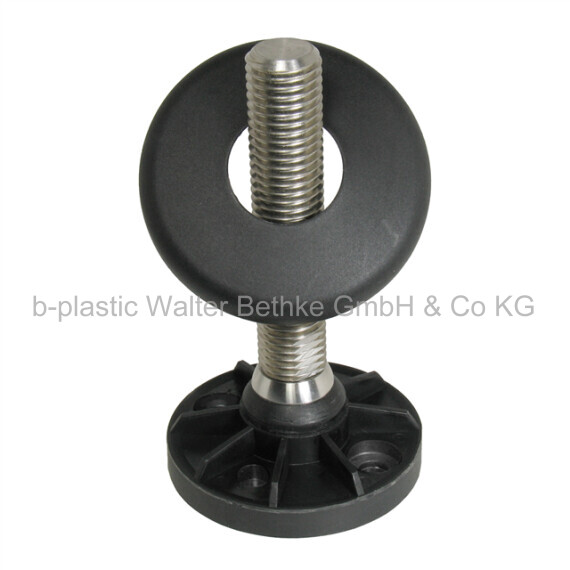

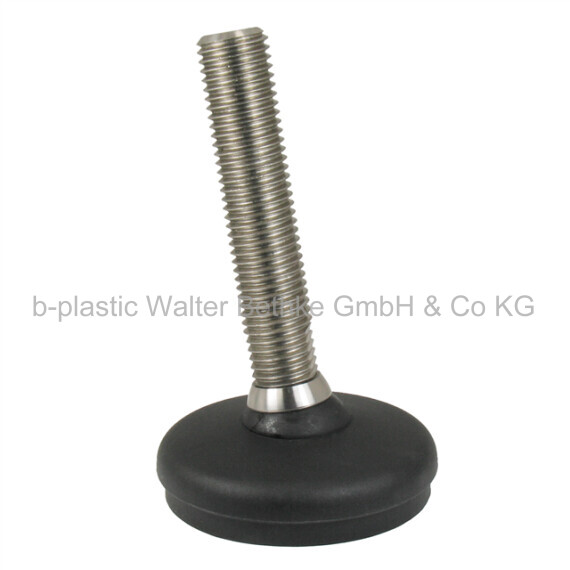

Adjustable feet made of glass fibre reinforced polyamide with rubber base and stainless steel thread
Your session has expired, please log in again.
Configure your article. Enter multiple parameters to get the best result.

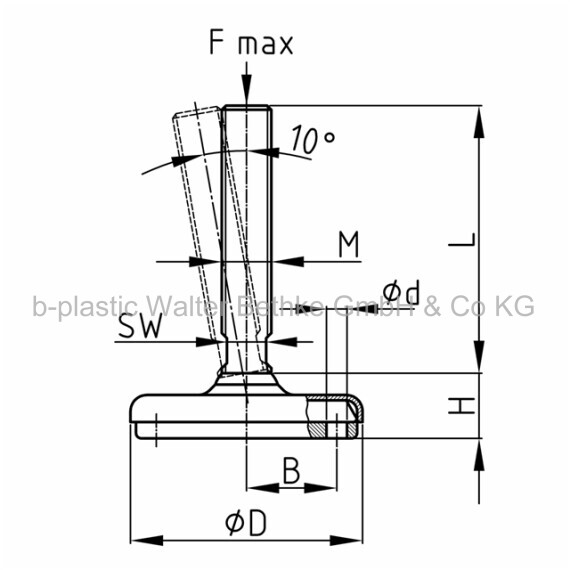

D in mm:
H in mm:
B in mm:
d in mm:
F max. in kg:
M:
L in mm:
WAF in mm:
Your article results:
Order-No. D
mmH
mmB
mmd
mmF max.
kgM L
mmWAF
mm- MFHPG 60 / M12x70
MFHPG 60 / M12x70 60 33 1200 M12 70 10 - MFHPG 60 / M12x100
MFHPG 60 / M12x100 60 33 1200 M12 100 10 - MFHPG 60 / M12x150
MFHPG 60 / M12x150 60 33 1200 M12 150 10 - MFHPG 60 / M12x180
MFHPG 60 / M12x180 60 33 1200 M12 180 10 - MFHPG 60 / M12x230
MFHPG 60 / M12x230 60 33 1200 M12 230 10 - MFHPG 60 / M16x70
MFHPG 60 / M16x70 60 33 1200 M16 70 13 - MFHPG 60 / M16x100
MFHPG 60 / M16x100 60 33 1200 M16 100 13 - MFHPG 60 / M16x150
MFHPG 60 / M16x150 60 33 1200 M16 150 13 - MFHPG 60 / M16x180
MFHPG 60 / M16x180 60 33 1200 M16 180 13 - MFHPG 60 / M16x230
MFHPG 60 / M16x230 60 33 1200 M16 230 13 - MFHPG 60 / M16x310
MFHPG 60 / M16x310 60 33 1200 M16 310 13 - MFHPG 60 / M20x70
MFHPG 60 / M20x70 60 33 1200 M20 70 17 - MFHPG 60 / M20x100
MFHPG 60 / M20x100 60 33 1200 M20 100 17 - MFHPG 60 / M20x150
MFHPG 60 / M20x150 60 33 1200 M20 150 17 - MFHPG 60 / M20x180
MFHPG 60 / M20x180 60 33 1200 M20 180 17 - MFHPG 60 / M20x230
MFHPG 60 / M20x230 60 33 1200 M20 230 17 - MFHPG 60 / M20x310
MFHPG 60 / M20x310 60 33 1200 M20 310 17 - MFHPG 60 / M24x70
MFHPG 60 / M24x70 60 33 1200 M24 70 19 - MFHPG 60 / M24x100
MFHPG 60 / M24x100 60 33 1200 M24 100 19 - MFHPG 60 / M24x150
MFHPG 60 / M24x150 60 33 1200 M24 150 19 - MFHPG 60 / M24x180
MFHPG 60 / M24x180 60 33 1200 M24 180 19 - MFHPG 60 / M24x230
MFHPG 60 / M24x230 60 33 1200 M24 230 19 - MFHPG 60 / M24x310
MFHPG 60 / M24x310 60 33 1200 M24 310 19 - MFHPG 80 / M12x70
MFHPG 80 / M12x70 80 33 27 9 1200 M12 70 10 - MFHPG 80 / M12x100
MFHPG 80 / M12x100 80 33 27 9 1200 M12 100 10 - MFHPG 80 / M12x150
MFHPG 80 / M12x150 80 33 27 9 1200 M12 150 10 - MFHPG 80 / M12x180
MFHPG 80 / M12x180 80 33 27 9 1200 M12 180 10 - MFHPG 80 / M12x230
MFHPG 80 / M12x230 80 33 27 9 1200 M12 230 10 - MFHPG 80 / M16x70
MFHPG 80 / M16x70 80 33 27 9 1200 M16 70 13 - MFHPG 80 / M16x100
MFHPG 80 / M16x100 80 33 27 9 1200 M16 100 13 - MFHPG 80 / M16x150
MFHPG 80 / M16x150 80 33 27 9 1200 M16 150 13 - MFHPG 80 / M16x180
MFHPG 80 / M16x180 80 33 27 9 1200 M16 180 13 - MFHPG 80 / M16x230
MFHPG 80 / M16x230 80 33 27 9 1200 M16 230 13 - MFHPG 80 / M16x310
MFHPG 80 / M16x310 80 33 27 9 1200 M16 310 13 - MFHPG 80 / M20x70
MFHPG 80 / M20x70 80 33 27 9 1200 M20 70 17 - MFHPG 80 / M20x100
MFHPG 80 / M20x100 80 33 27 9 1200 M20 100 17 - MFHPG 80 / M20x150
MFHPG 80 / M20x150 80 33 27 9 1200 M20 150 17 - MFHPG 80 / M20x180
MFHPG 80 / M20x180 80 33 27 9 1200 M20 180 17 - MFHPG 80 / M20x230
MFHPG 80 / M20x230 80 33 27 9 1200 M20 230 17 - MFHPG 80 / M20x310
MFHPG 80 / M20x310 80 33 27 9 1200 M20 310 17 - MFHPG 80 / M24x70
MFHPG 80 / M24x70 80 33 27 9 1200 M24 70 19 - MFHPG 80 / M24x100
MFHPG 80 / M24x100 80 33 27 9 1200 M24 100 19 - MFHPG 80 / M24x150
MFHPG 80 / M24x150 80 33 27 9 1200 M24 150 19 - MFHPG 80 / M24x180
MFHPG 80 / M24x180 80 33 27 9 1200 M24 180 19 - MFHPG 80 / M24x230
MFHPG 80 / M24x230 80 33 27 9 1200 M24 230 19 - MFHPG 80 / M24x310
MFHPG 80 / M24x310 80 33 27 9 1200 M24 310 19 - MFHPG 100 / M12x70
MFHPG 100 / M12x70 100 39 32 11 2000 M12 70 10 - MFHPG 100 / M12x100
MFHPG 100 / M12x100 100 39 32 11 2000 M12 100 10 - MFHPG 100 / M12x150
MFHPG 100 / M12x150 100 39 32 11 2000 M12 150 10 - MFHPG 100 / M12x180
MFHPG 100 / M12x180 100 39 32 11 2000 M12 180 10 - MFHPG 100 / M12x230
MFHPG 100 / M12x230 100 39 32 11 2000 M12 230 10 - MFHPG 100 / M16x70
MFHPG 100 / M16x70 100 39 32 11 2000 M16 70 13 - MFHPG 100 / M16x100
MFHPG 100 / M16x100 100 39 32 11 2000 M16 100 13 - MFHPG 100 / M16x150
MFHPG 100 / M16x150 100 39 32 11 2000 M16 150 13 - MFHPG 100 / M16x180
MFHPG 100 / M16x180 100 39 32 11 2000 M16 180 13 - MFHPG 100 / M16x230
MFHPG 100 / M16x230 100 39 32 11 2000 M16 230 13 - MFHPG 100 / M16x310
MFHPG 100 / M16x310 100 39 32 11 2000 M16 310 13 - MFHPG 100 / M20x70
MFHPG 100 / M20x70 100 39 32 11 2000 M20 70 17 - MFHPG 100 / M20x100
MFHPG 100 / M20x100 100 39 32 11 2000 M20 100 17 - MFHPG 100 / M20x150
MFHPG 100 / M20x150 100 39 32 11 2000 M20 150 17 - MFHPG 100 / M20x180
MFHPG 100 / M20x180 100 39 32 11 2000 M20 180 17 - MFHPG 100 / M20x230
MFHPG 100 / M20x230 100 39 32 11 2000 M20 230 17 - MFHPG 100 / M20x310
MFHPG 100 / M20x310 100 39 32 11 2000 M20 310 17 - MFHPG 100 / M24x70
MFHPG 100 / M24x70 100 39 32 11 2000 M24 100 19 - MFHPG 100 / M24x100
MFHPG 100 / M24x100 100 39 32 11 2000 M24 150 19 - MFHPG 100 / M24x150
MFHPG 100 / M24x150 100 39 32 11 2000 M24 180 19 - MFHPG 100 / M24x180
MFHPG 100 / M24x180 100 39 32 11 2000 M24 230 19 - MFHPG 100 / M24x230
MFHPG 100 / M24x230 100 39 32 11 2000 M24 310 19 - MFHPG 100 / M24x310
MFHPG 100 / M24x310 100 39 32 11 2000 M24 70 19 - MFHPG 120 / M12x70
MFHPG 120 / M12x70 120 40 40 11 2000 M12 100 10 - MFHPG 120 / M12x100
MFHPG 120 / M12x100 120 40 40 11 2000 M12 150 10 - MFHPG 120 / M12x150
MFHPG 120 / M12x150 120 40 40 11 2000 M12 180 10 - MFHPG 120 / M12x180
MFHPG 120 / M12x180 120 40 40 11 2000 M12 230 10 - MFHPG 120 / M12x230
MFHPG 120 / M12x230 120 40 40 11 2000 M12 310 10 - MFHPG 120 / M16x70
MFHPG 120 / M16x70 120 40 40 11 2000 M16 70 13 - MFHPG 120 / M16x100
MFHPG 120 / M16x100 120 40 40 11 2000 M16 100 13 - MFHPG 120 / M16x150
MFHPG 120 / M16x150 120 40 40 11 2000 M16 150 13 - MFHPG 120 / M16x180
MFHPG 120 / M16x180 120 40 40 11 2000 M16 180 13 - MFHPG 120 / M16x230
MFHPG 120 / M16x230 120 40 40 11 2000 M16 230 13 - MFHPG 120 / M16x310
MFHPG 120 / M16x310 120 40 40 11 2000 M16 310 13 - MFHPG 120 / M20x70
MFHPG 120 / M20x70 120 40 40 11 2000 M20 70 17 - MFHPG 120 / M20x100
MFHPG 120 / M20x100 120 40 40 11 2000 M20 100 17 - MFHPG 120 / M20x150
MFHPG 120 / M20x150 120 40 40 11 2000 M20 150 17 - MFHPG 120 / M20x180
MFHPG 120 / M20x180 120 40 40 11 2000 M20 180 17 - MFHPG 120 / M20x230
MFHPG 120 / M20x230 120 40 40 11 2000 M20 230 17 - MFHPG 120 / M20x310
MFHPG 120 / M20x310 120 40 40 11 2000 M20 310 17 - MFHPG 120 / M24x70
MFHPG 120 / M24x70 120 40 40 11 2000 M24 70 19 - MFHPG 120 / M24x100
MFHPG 120 / M24x100 120 40 40 11 2000 M24 100 19 - MFHPG 120 / M24x150
MFHPG 120 / M24x150 120 40 40 11 2000 M24 150 19 - MFHPG 120 / M24x180
MFHPG 120 / M24x180 120 40 40 11 2000 M24 180 19 - MFHPG 120 / M24x230
MFHPG 120 / M24x230 120 40 40 11 2000 M24 230 19 - MFHPG 120 / M24x310
MFHPG 120 / M24x310 120 40 40 11 2000 M24 310 19
