Machine foot - MFHG

Machine feet made of stainless steel, optional with antislip pad

Your session has expired, please log in again.
MFHG
MFHG
MFHG-xG
MFHG
MFHG
MFHG
MFHG-xG
MFHG
MFHG
MFHG-xG
MFHG
MFHG
MFHG-xG
MFHG
PDF data sheet

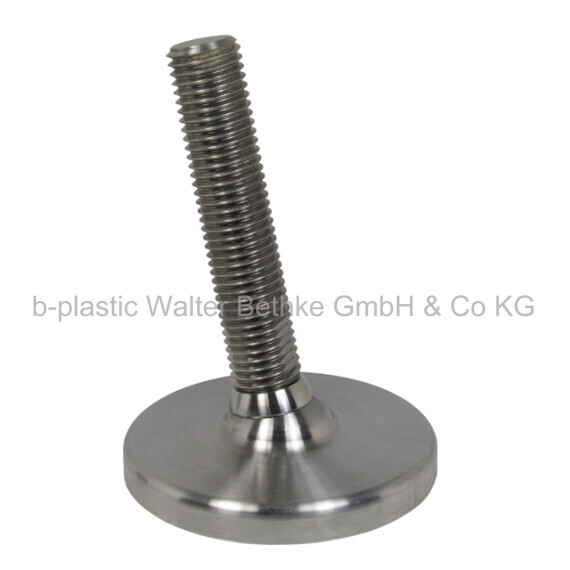

  • Base body: AISI 304 (A2)
  • Rubber: NBR 72 Shore
  • The machine foot is suitable for machines that are subject to thermal expansion and contraction (ovens, freezers, ...).
  • The solid stainless steel design makes the foot highly resilient. The rounded shape makes cleaning easier.
  • The machine foot can compensate for uneven floors up to 9°.
  • The load capacity of the screw (buckling length!) may be less than indicated in the table.

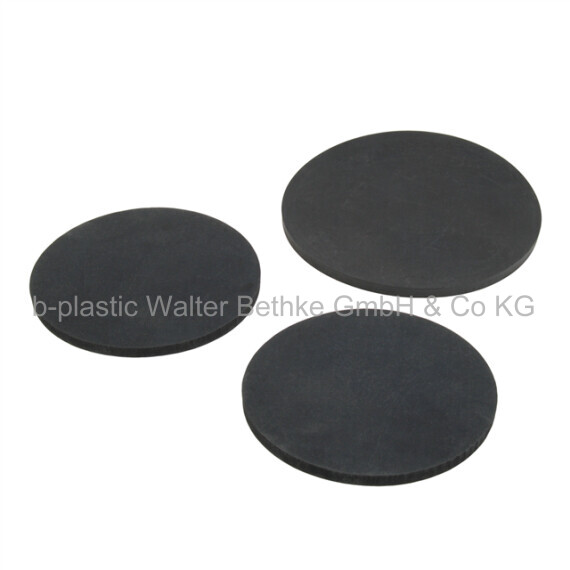

  • The base is optionally available with a non-slip rubber plate that is firmly bonded to the stainless steel plate.
  • Please order separately (MFHGxG, x = D)!

Configure your article. Enter multiple parameters to get the best result.

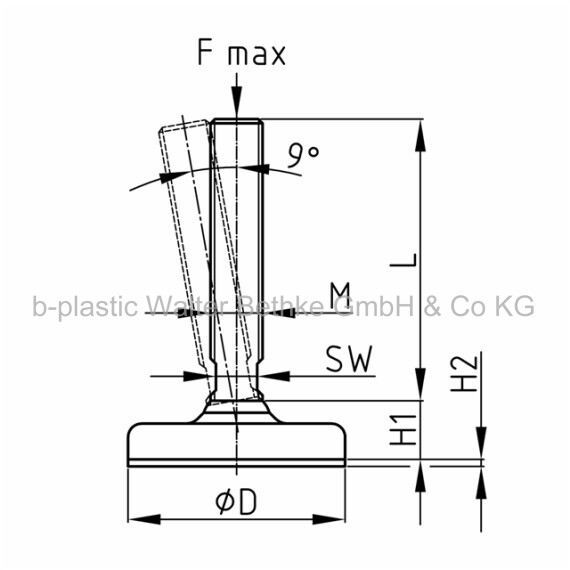

D in mm:

H1 in mm:

H2 in mm:

F max. in kg:

L in mm:

M:

WAF in mm:

Your article results:

  • Order-No. D
    mm    		H1
    mm    		H2
    mm    		F max.
    kg    		L
    mm    		MWAF
    mm
  • MFHG 70 / M12x100
    MFHG 70 / M12x100 702656000100M1210
  • MFHG 70 / M12x150
    MFHG 70 / M12x150 702656000150M1210
  • MFHG 70 / M12x180
    MFHG 70 / M12x180 702656000180M1210
  • MFHG 70 / M12x230
    MFHG 70 / M12x230 702656000230M1210
  • MFHG 70 / M16x100
    MFHG 70 / M16x100 702656000100M1613
  • MFHG 70 / M16x150
    MFHG 70 / M16x150 702656000150M1613
  • MFHG 70 / M16x180
    MFHG 70 / M16x180 702656000180M1613
  • MFHG 70 / M16x230
    MFHG 70 / M16x230 702656000230M1613
  • MFHG 70 / M20x100
    MFHG 70 / M20x100 702656000100M2017
  • MFHG 70 / M20x150
    MFHG 70 / M20x150 702656000150M2017
  • MFHG 70 / M20x180
    MFHG 70 / M20x180 702656000180M2017
  • MFHG 70 / M20x230
    MFHG 70 / M20x230 702656000230M2017
  • MFHG 70 / M24x100
    MFHG 70 / M24x100 702656000100M2419
  • MFHG 70 / M24x150
    MFHG 70 / M24x150 702656000150M2419
  • MFHG 70 / M24x180
    MFHG 70 / M24x180 702656000180M2419
  • MFHG 70 / M24x230
    MFHG 70 / M24x230 702656000230M2419
  • MFHG 70 / M30x100
    MFHG 70 / M30x100 702656000100M3024
  • MFHG 70 / M30x150
    MFHG 70 / M30x150 702656000150M3024
  • MFHG 70 / M30x180
    MFHG 70 / M30x180 702656000180M3024
  • MFHG 70 / M30x230
    MFHG 70 / M30x230 702656000230M3024
  • MFHG 90 / M12x100
    MFHG 90 / M12x100 902656000100M1210
  • MFHG 90 / M12x150
    MFHG 90 / M12x150 902656000150M1210
  • MFHG 90 / M12x180
    MFHG 90 / M12x180 902656000180M1210
  • MFHG 90 / M12x230
    MFHG 90 / M12x230 902656000230M1210
  • MFHG 90 / M16x100
    MFHG 90 / M16x100 902656000100M1613
  • MFHG 90 / M16x150
    MFHG 90 / M16x150 902656000150M1613
  • MFHG 90 / M16x180
    MFHG 90 / M16x180 902656000180M1613
  • MFHG 90 / M16x230
    MFHG 90 / M16x230 902656000230M1613
  • MFHG 90 / M20x100
    MFHG 90 / M20x100 902656000100M2017
  • MFHG 90 / M20x150
    MFHG 90 / M20x150 902656000150M2017
  • MFHG 90 / M20x180
    MFHG 90 / M20x180 902656000180M2017
  • MFHG 90 / M20x230
    MFHG 90 / M20x230 902656000230M2017
  • MFHG 90 / M24x100
    MFHG 90 / M24x100 902656000100M2419
  • MFHG 90 / M24x150
    MFHG 90 / M24x150 902656000150M2419
  • MFHG 90 / M24x180
    MFHG 90 / M24x180 902656000180M2419
  • MFHG 90 / M24x230
    MFHG 90 / M24x230 902656000230M2419
  • MFHG 90 / M30x100
    MFHG 90 / M30x100 902656000100M3024
  • MFHG 90 / M30x150
    MFHG 90 / M30x150 902656000150M3024
  • MFHG 90 / M30x180
    MFHG 90 / M30x180 902656000180M3024
  • MFHG 90 / M30x230
    MFHG 90 / M30x230 902656000230M3024
  • MFHG 110 / M16x100
    MFHG 110 / M16x100 1102656000100M1613
  • MFHG 110 / M16x150
    MFHG 110 / M16x150 1102656000150M1613
  • MFHG 110 / M16x180
    MFHG 110 / M16x180 1102656000180M1613
  • MFHG 110 / M16x230
    MFHG 110 / M16x230 1102656000230M1613
  • MFHG 110 / M20x100
    MFHG 110 / M20x100 1102656000100M2017
  • MFHG 110 / M20x150
    MFHG 110 / M20x150 1102656000150M2017
  • MFHG 110 / M20x180
    MFHG 110 / M20x180 1102656000180M2017
  • MFHG 110 / M20x230
    MFHG 110 / M20x230 1102656000230M2017
  • MFHG 110 / M24x100
    MFHG 110 / M24x100 1102656000100M2419
  • MFHG 110 / M24x150
    MFHG 110 / M24x150 1102656000150M2419
  • MFHG 110 / M24x180
    MFHG 110 / M24x180 1102656000180M2419
  • MFHG 110 / M24x230
    MFHG 110 / M24x230 1102656000230M2419
  • MFHG 110 / M30x100
    MFHG 110 / M30x100 1102656000100M3024
  • MFHG 110 / M30x150
    MFHG 110 / M30x150 1102656000150M3024
  • MFHG 110 / M30x180
    MFHG 110 / M30x180 1102656000180M3024
  • MFHG 110 / M30x230
    MFHG 110 / M30x230 1102656000230M3024
  • MFHG 110 / M36x100
    MFHG 110 / M36x100 1102656000100M3630
  • MFHG 110 / M36x150
    MFHG 110 / M36x150 1102656000150M3630
  • MFHG 110 / M36x180
    MFHG 110 / M36x180 1102656000180M3630
  • MFHG 110 / M36x230
    MFHG 110 / M36x230 1102656000230M3630
  • MFHG 150 / M16x100
    MFHG 150 / M16x100 1502656000100M1613
  • MFHG 150 / M16x150
    MFHG 150 / M16x150 1502656000150M1613
  • MFHG 150 / M16x180
    MFHG 150 / M16x180 1502656000180M1613
  • MFHG 150 / M16x230
    MFHG 150 / M16x230 1502656000230M1613
  • MFHG 150 / M20x100
    MFHG 150 / M20x100 1502656000100M2017
  • MFHG 150 / M20x150
    MFHG 150 / M20x150 1502656000150M2017
  • MFHG 150 / M20x180
    MFHG 150 / M20x180 1502656000180M2017
  • MFHG 150 / M20x230
    MFHG 150 / M20x230 1502656000230M2017
  • MFHG 150 / M24x100
    MFHG 150 / M24x100 1502656000100M2419
  • MFHG 150 / M24x150
    MFHG 150 / M24x150 1502656000150M2419
  • MFHG 150 / M24x180
    MFHG 150 / M24x180 1502656000180M2419
  • MFHG 150 / M24x230
    MFHG 150 / M24x230 1502656000230M2419
  • MFHG 150 / M30x100
    MFHG 150 / M30x100 1502656000100M3024
  • MFHG 150 / M30x150
    MFHG 150 / M30x150 1502656000150M3024
  • MFHG 150 / M30x180
    MFHG 150 / M30x180 1502656000180M3024
  • MFHG 150 / M30x230
    MFHG 150 / M30x230 1502656000230M3024
  • MFHG 150 / M36x100
    MFHG 150 / M36x100 1502656000100M3630
  • MFHG 150 / M36x150
    MFHG 150 / M36x150 1502656000150M3630
  • MFHG 150 / M36x180
    MFHG 150 / M36x180 1502656000180M3630
  • MFHG 150 / M36x230
    MFHG 150 / M36x230 1502656000230M3630
  • MFHG 70G
    MFHG 70G 70
  • MFHG 90G
    MFHG 90G 90
  • MFHG 110G
    MFHG 110G 110
  • MFHG 150G
    MFHG 150G 150
