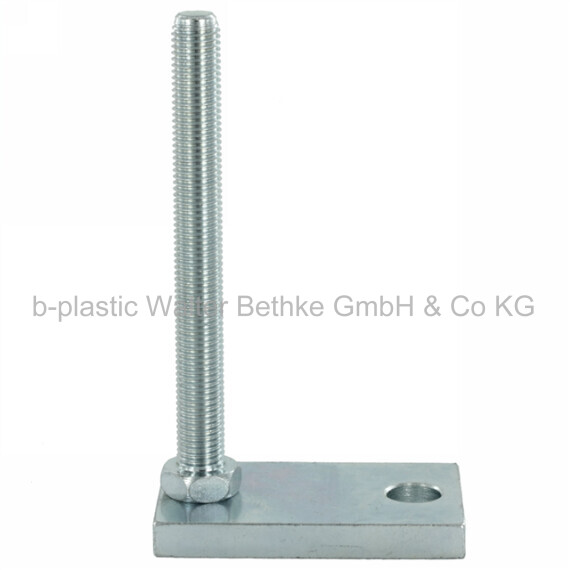

Machine foot - MFRH
Machine feet made of zinced steel with rectangular base and fixing hole
Your session has expired, please log in again.
Configure your article. Enter multiple parameters to get the best result.

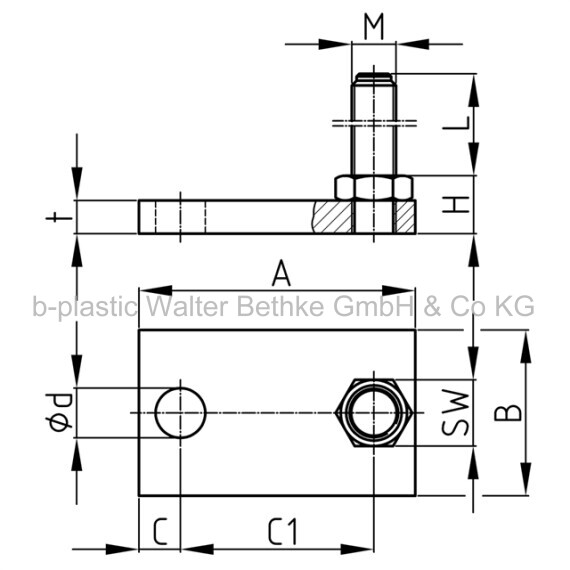

A in mm:
B in mm:
C in mm:
C1 in mm:
d in mm:
F max. in kg:
H in mm:
L in mm:
M:
WAF in mm:
t in mm:
Your article results:
Order-No. A
mmB
mmC
mmC1
mmd
mmF max.
kgH
mmL
mmM WAF
mmt
mm- MFRH 100x60 / M16x150
MFRH 100x60 / M16x150 100 60 70 15 18 3000 12 150 M16 24 9 - MFRH 110x80 / M20x200
MFRH 110x80 / M20x200 110 80 80 15 18 4000 12 200 M20 24 9
Loading product information
Login to get price and discount information for all products.
Accessories
SPP
Welding plates made of stainless steel with thread, for welding to square tubes
SPS
Stainless steel washers (DIN 125A, DIN 9021)
SKM
Stainless steel nuts (DIN 934, DIN 439B)
RGMM
Threaded plugs made of PA for round tubes with nickel-plated brass thread
VGMM
Threaded plugs made of PA-GF for square tubes with nickel-plated brass thread
