Clamping handle - KLH2M

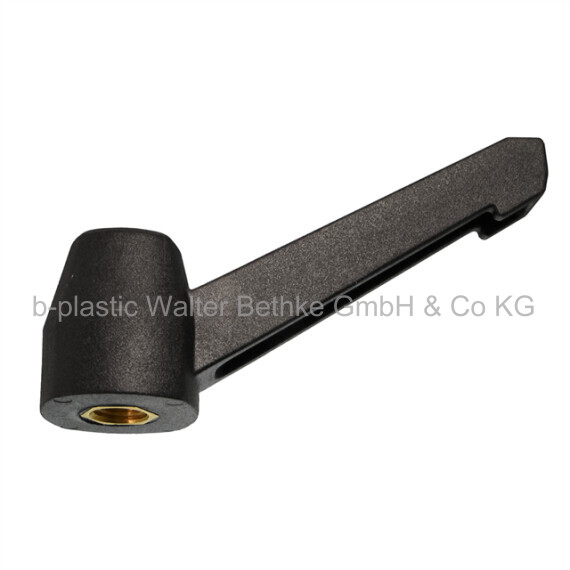

Clamping lever made of PA-GF with overmoulded threaded bush
Configure your article. Enter multiple parameters to get the best result.

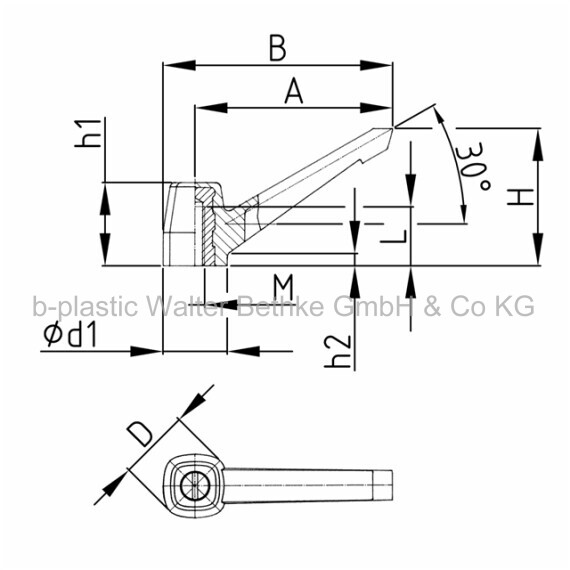

A in mm:
B in mm:
d1 in mm:
D in mm:
h1 in mm:
h2 in mm:
H in mm:
L in mm:
M:
Your article results:
Order-No. A
mmB
mmd1
mmD
mmh1
mmh2
mmH
mmL
mmM - KLH2M 40 M6
KLH2M 40 M6 40 49 16 18 22 9 38 18 M6 - KLH2M 55 M6
KLH2M 55 M6 55 65 20 22 23 8 49 M6 - KLH2M 55 M8
KLH2M 55 M8 55 65 20 22 23 8 49 19 M8 - KLH2M 79 M8
KLH2M 79 M8 80 93 27 29 32 8 68 27 M8 - KLH2M 79 M10
KLH2M 79 M10 80 93 27 29 32 8 68 25,5 M10 - KLH2M 79 M12
KLH2M 79 M12 80 93 27 29 32 8 68 26,5 M12 - KLH2M 100 M12
KLH2M 100 M12 100 117 33 38 44 12 85 32 M12 - KLH2M 100 M14
KLH2M 100 M14 100 117 33 38 44 12 85 M14 - KLH2M 100 M16
KLH2M 100 M16 100 117 33 38 44 12 85 M16
