Lamella plug - SRL

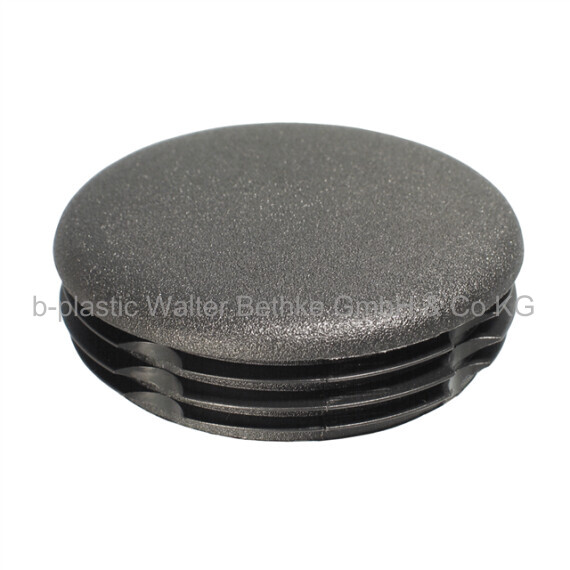

Lamella plugs made of PE with strongly curved bottom

Your session has expired, please log in again.
SRL
SRL
SRL
SRL
PDF data sheet
  • Polyethylene (PE)
black RAL 9005
signal white RAL 9003
traffic grey A RAL 7042

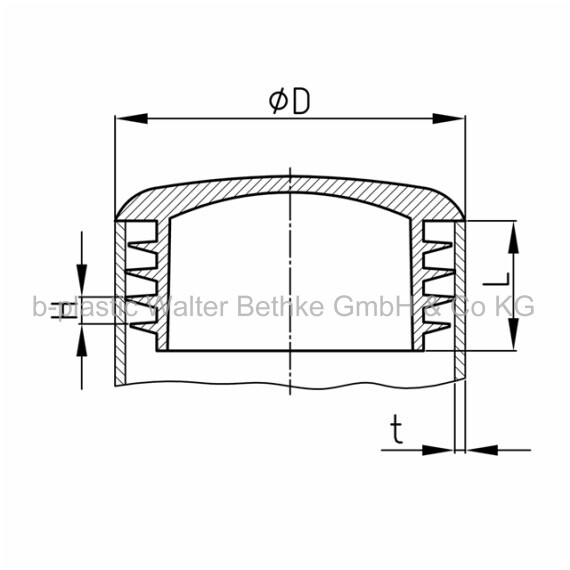

  • Lamellar plugs without specification of the pipe wall thickness are generally suitable for pipe wall thicknesses 1.5 - 2 mm. Please indicate the pipe wall thickness when ordering.
  • The ribs are not suitable for sealing against fluids.
  • The plugs are intended for use in pipes or equivalent bores with free passage corresponding to the clear nominal width of at least shaft length.
  • For technical production reasons, a residual sprue may exceed the shaft length.
  • Material and design of shafts guaranteed stop against drop out and easy assembling.
  • For sufficiently smooth installation in pipes with a greater wall thickness, we recommend chamfering the inside diameter of the pipe (approx. 0.3 - 0.5 x 60°).
  • Depending on the selected article, the surface finish can vary between polished and eroded.
  • The ribs are circularly closed or interrupted.
  • The number of slats per plug varies between 2-4 slats.
  • Special colours (colours, minimum quantities, set-up costs, pricing and surcharges)
  • With your engraved company logo (tooling costs, minimum quantities, set-up costs)
  • With your tampon printed company logo (set-up costs, minimum quantities, printing costs)
  • Most plugs can also be made of suitable harder TPE's (TPE= thermoplastic elastomer --> extended range of operating temperature, noise absorbing, non-skid).
  • The stopper is not suitable for use as a glider
  • As a rule, odd outside pipe diameters rounded to 1/10 mm (as part of the article or order number) indicate that these sizes originate from or are common in the Imperial system.
