Lamella plug - ITSA

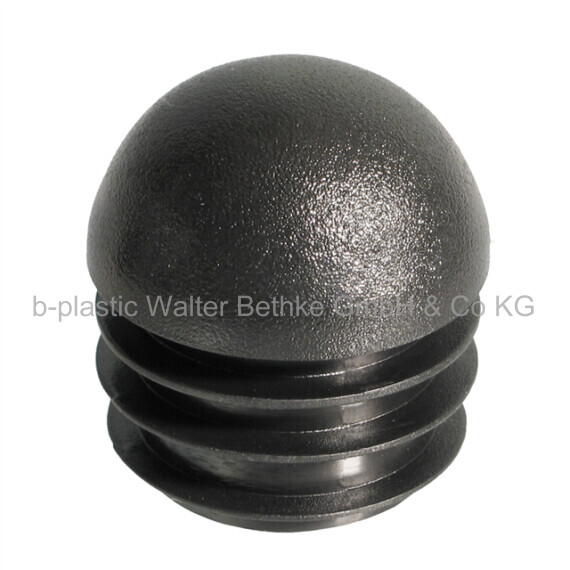

Lamella plugs with ball head made of PE for round tubes

Your session has expired, please log in again.
ITSA
ITSA
ITSA
ITSA
ITSA
ITSA
ITSA
ITSA
ITSA
ITSA
PDF data sheet
  • Polyethylene (PE)
black RAL 9005
signal white RAL 9003
traffic grey A RAL 7042
  • The plugs are intended for use in pipes or equivalent bores with free passage corresponding to the clear nominal width of at least shaft length.
  • For technical production reasons, a residual sprue may exceed the shaft length.
  • Special colours (colours, minimum quantities, set-up costs, pricing and surcharges)
  • With your engraved company logo (tooling costs, minimum quantities, set-up costs)
  • „+“ = differing standard colours possible
  • As a rule, odd outside pipe diameters rounded to 1/10 mm (as part of the article or order number) indicate that these sizes originate from or are common in the Imperial system.

Configure your article. Enter multiple parameters to get the best result.

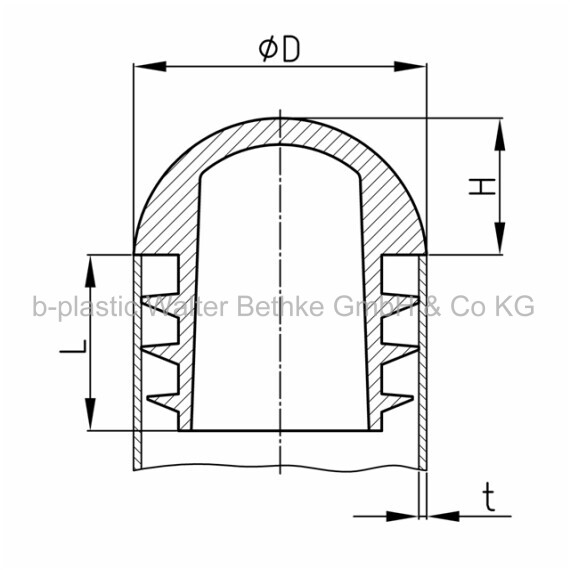

D in mm:

H in mm:

L in mm:

t in mm:

Your article results:

  • Order-No. D
    mm    		H
    mm    		L
    mm    		t
    mm
  • ITSA 16x1-2
    ITSA 16x1-2 167,5121-2
  • ITSA 18 x 1-2
    ITSA 18 x 1-2 188121-2
  • ITSA 19,1x1,2-2
    ITSA 19,1x1,2-2 19,19,5141,2-2
  • ITSA 20x1-2
    ITSA 20x1-2 209,515,51-2
  • ITSA 22x1-1,5
    ITSA 22x1-1,5 2210,515,51-1,5
  • ITSA 22x1,5-2
    ITSA 22x1,5-2 2210,515,51,5-2
  • ITSA 25x1-2
    ITSA 25x1-2 2510,515,51-2
  • ITSA 27x 1-2
    ITSA 27x 1-2 2713,515,51-2
  • ITSA 28x 1-2
    ITSA 28x 1-2 281415,51-2
  • ITSA 28x 1,5-2,5
    ITSA 28x 1,5-2,5 281415,51,5-2,5
  • ITSA 30x1-2
    ITSA 30x1-2 3013,517,51-2
  • ITSA 32x1-2
    ITSA 32x1-2 3215,519,51-2
  • ITSA 34x1,2-2,5
    ITSA 34x1,2-2,5 341719,51,2-2,5
  • ITSA 35x1-2
    ITSA 35x1-2 3516,519,51-2
  • + ITSA 40x1,5-2
    + ITSA 40x1,5-2 4020121,5-2
  • ITSA 42x1,5-2,5
    ITSA 42x1,5-2,5 4221301,5-2,5
  • ITSA 44,5x1,2-2
    ITSA 44,5x1,2-2 44,522301,2-2
  • ITSA 45x1,5-2,5
    ITSA 45x1,5-2,5 4522301,5-2,5
  • ITSA 48,4x1,5-2,5
    ITSA 48,4x1,5-2,5 48,424,2301,5-2,5
  • ITSA 48,4x3-5
    ITSA 48,4x3-5 48,424,2303-5
  • ITSA 50x1,5-2,5
    ITSA 50x1,5-2,5 5025301,5-2,5
  • ITSA 50,8x1,2-2,5
    ITSA 50,8x1,2-2,5 50,825,5301,2-2,5
  • ITSA 57,2x1,5-2,5
    ITSA 57,2x1,5-2,5 57,22935,51,5-2,5
  • ITSA 60x1,5-2,5
    ITSA 60x1,5-2,5 6030401,5-2,5
  • ITSA 76,2x2-3,5
    ITSA 76,2x2-3,5 76,238,5402-3,5
