Spoked wheel - SHR2C

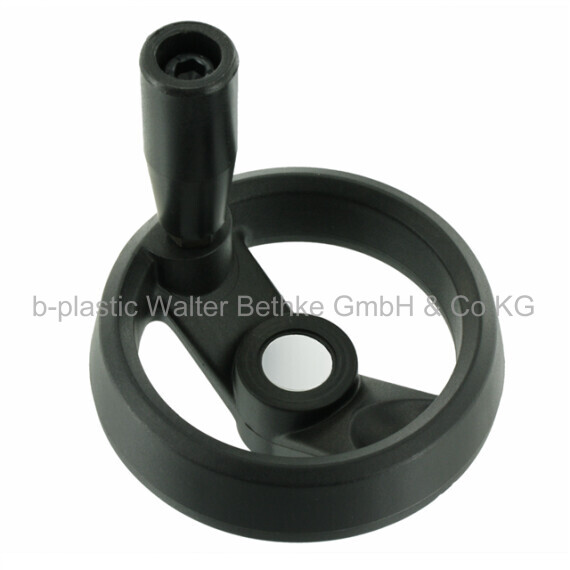

Spoked wheel made of PA-GF with two spokes and revolving handle
Configure your article. Enter multiple parameters to get the best result.

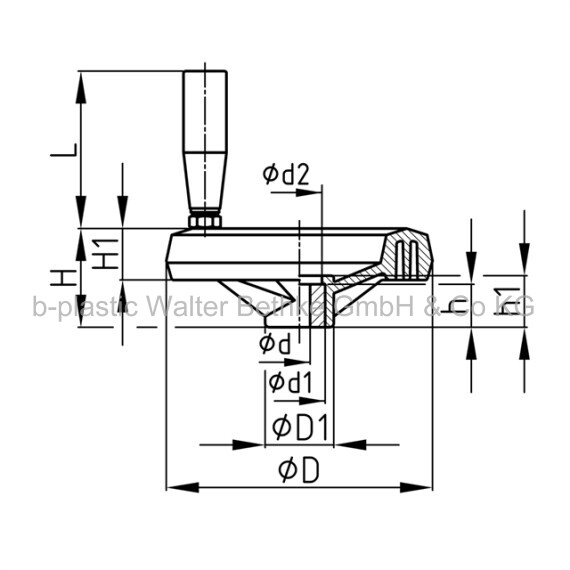

D in mm:
d in mm:
D1 in mm:
d1 in mm:
d2 in mm:
H in mm:
h in mm:
H1 in mm:
h1 in mm:
L in mm:
Your article results:
Order-No. D
mmd
mmD1
mmd1
mmd2
mmH
mmh
mmH1
mmh1
mmL
mm- SHR2C 80 / 8
SHR2C 80 / 8 80 8 24 18 15 35 17 18 23 50 - SHR2C 80 / 10
SHR2C 80 / 10 80 10 24 18 15 35 17 18 23 50 - SHR2C 100 / 10
SHR2C 100 / 10 100 10 24 18 15 37 17 20 23 50 - SHR2C 100 / 12
SHR2C 100 / 12 100 12 24 18 15 37 17 20 23 50 - SHR2C 126 / 10
SHR2C 126 / 10 126 10 32 24 21 46 21 24 25 70 - SHR2C 126 / 12
SHR2C 126 / 12 126 12 32 24 21 46 21 24 25 70 - SHR2C 126 / 14
SHR2C 126 / 14 126 14 32 24 21 46 21 24 25 70 - SHR2C 126 / 15
SHR2C 126 / 15 126 15 32 24 21 46 21 24 25 70 - SHR2C 160 / 10
SHR2C 160 / 10 160 10 40 26 25 52 25 26,5 31 85 - SHR2C 160 / 12
SHR2C 160 / 12 160 12 40 26 25 52 25 26,5 31 85 - SHR2C 160 / 14
SHR2C 160 / 14 160 14 40 26 25 52 25 26,5 31 85 - SHR2C 160 / 16
SHR2C 160 / 16 160 16 40 26 25 52 25 26,5 31 85 - SHR2C 200 / 10
SHR2C 200 / 10 200 10 50 30 28 62 28 28 34 85 - SHR2C 200 / 16
SHR2C 200 / 16 200 16 50 30 28 62 28 28 34 85 - SHR2C 200 / 20
SHR2C 200 / 20 200 20 50 30 28 62 28 28 34 85
Login to get price and discount information for all products.
