Lamella plug - SFL

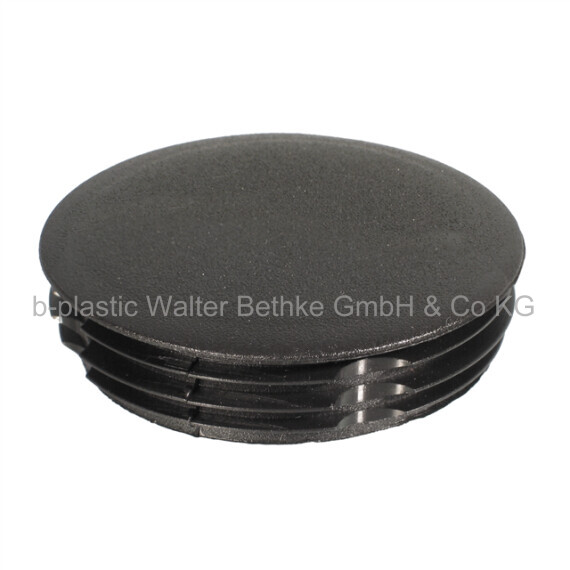

Lamella plugs made of PE with slightly curved bottom

Your session has expired, please log in again.
SFL
SFL
SFL
SFL
SFL
SFL
SFL
SFL
SFL
SFL
PDF data sheet
  • Polyethylene (PE)
black RAL 9005
signal white RAL 9003
traffic grey A RAL 7042
  • Lamellar plugs without specification of the pipe wall thickness are generally suitable for pipe wall thicknesses 1.5 - 2 mm. Please indicate the pipe wall thickness when ordering.
  • The ribs are not suitable for sealing against fluids.
  • The plugs are intended for use in pipes or equivalent bores with free passage corresponding to the clear nominal width of at least shaft length.
  • For technical production reasons, a residual sprue may exceed the shaft length.
  • Material and design of shafts guaranteed stop against drop out and easy assembling.
  • For sufficiently smooth installation in pipes with a greater wall thickness, we recommend chamfering the inside diameter of the pipe (approx. 0.3 - 0.5 x 60°).
  • Depending on the selected article, the surface finish can vary between polished and eroded.
  • The ribs are circularly closed or interrupted.
  • The number of slats per plug varies between 2-4 slats.
  • Special colours (colours, minimum quantities, set-up costs, pricing and surcharges)
  • With your engraved company logo (tooling costs, minimum quantities, set-up costs)
  • With your tampon printed company logo (set-up costs, minimum quantities, printing costs)
  • Most plugs can also be made of suitable harder TPE's (TPE= thermoplastic elastomer --> extended range of operating temperature, noise absorbing, non-skid).
  • The stopper is not suitable for use as a glider
  • As a rule, odd outside pipe diameters rounded to 1/10 mm (as part of the article or order number) indicate that these sizes originate from or are common in the Imperial system.

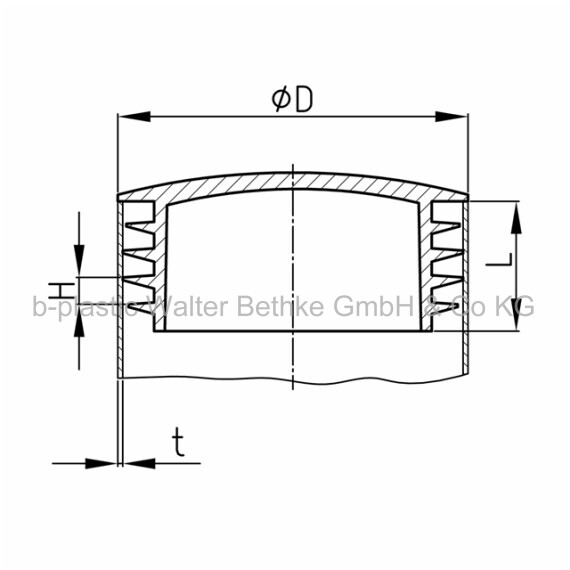

Configure your article. Enter multiple parameters to get the best result.

D in mm:

H in mm:

L in mm:

t in mm:

Your article results:

  • Order-No. D
    mm    		H
    mm    		L
    mm    		t
    mm
  • SFL 10x0,8-1,5
    SFL 10x0,8-1,5 102100,8-1,5
  • SFL 12x0,8-1,5
    SFL 12x0,8-1,5 122100,8-1,5
  • SFL 13x0,8-2
    SFL 13x0,8-2 13310,50,8-2
  • SFL 14x0,8-2
    SFL 14x0,8-2 14311,50,8-2
  • SFL 15x0,8-2
    SFL 15x0,8-2 15311,50,8-2
  • SFL 16x0,8-2
    SFL 16x0,8-2 16311,50,8-2
  • SFL 18x0,25-1,5
    SFL 18x0,25-1,5 18311,50,25-1,5
  • SFL 18x0,8-2
    SFL 18x0,8-2 18311,50,8-2
  • SFL 18x2,5-3,5
    SFL 18x2,5-3,5 18311,52,5-3,5
  • SFL 18x1-2 kurzer Schaft
    SFL 18x1-2 kurzer Schaft 182,571-2
  • SFL 19x0,8-2,5
    SFL 19x0,8-2,5 19311,50,8-2,5
  • SFL 20x0,8-2,5
    SFL 20x0,8-2,5 20311,50,8-2,5
  • SFL 20x1 kurzer Schaft
    SFL 20x1 kurzer Schaft 201,551
  • SFL 21x0,8-2,5
    SFL 21x0,8-2,5 21311,50,8-2,5
  • SFL 22x0,8-3
    SFL 22x0,8-3 22311,50,8-3
  • SFL 22x2-4
    SFL 22x2-4 22311,52-4
  • SFL 23x0,8-3
    SFL 23x0,8-3 23311,50,8-3
  • SFL 24x0,8-2,5
    SFL 24x0,8-2,5 24311,50,8-2,5
  • SFL 25x1-2,5
    SFL 25x1-2,5 25311,51-2,5
  • SFL 25x3-5
    SFL 25x3-5 25311,53-5
  • SFL 26x0,8-3
    SFL 26x0,8-3 26311,50,8-3
  • SFL 27x0,8-3
    SFL 27x0,8-3 27311,50,8-3
  • SFL 28x0,8-2,5
    SFL 28x0,8-2,5 28311,50,8-2,5
  • SFL 30x0,8-2,5
    SFL 30x0,8-2,5 30311,50,8-2,5
  • SFL 30x2,5-4,5
    SFL 30x2,5-4,5 30311,52,5-4,5
  • SFL 32x0,8-2,5
    SFL 32x0,8-2,5 32311,50,8-2,5
  • SFL 32 2,5-4,5
    SFL 32 2,5-4,5 32311,52,5-4,5
  • SFL 34x0,8-3
    SFL 34x0,8-3 34311,50,8-3
  • SFL 35x1-3
    SFL 35x1-3 35311,51-3
  • SFL 38x 1-3
    SFL 38x 1-3 38311,51-3
  • SFL 40x1-3
    SFL 40x1-3 40311,51-3
  • SFL 42x0,8-2,5
    SFL 42x0,8-2,5 42311,50,8-2,5
  • SFL 44,5x1,2-2,7
    SFL 44,5x1,2-2,7 44,5311,51,2-2,7
  • SFL 45x0,8-2,5
    SFL 45x0,8-2,5 45311,50,8-2,5
  • SFL 48,4x1,2-3
    SFL 48,4x1,2-3 48,4311,51,2-3
  • SFL 50x1-2,5
    SFL 50x1-2,5 50311,51-2,5
  • SFL 55x1-2,5
    SFL 55x1-2,5 55314,51-2,5
  • SFL 57,2x1,2-2,7
    SFL 57,2x1,2-2,7 57,2314,51,2-2,7
  • SFL 60x1-2
    SFL 60x1-2 604181-2
  • SFL 65x1,5-3,5
    SFL 65x1,5-3,5 654,5211,5-3,5
  • SFL 70x1-3
    SFL 70x1-3 704,5211-3
  • SFL 76,2x1,5-3,5
    SFL 76,2x1,5-3,5 76,24,5211,5-3,5
  • SFL 80x1-3
    SFL 80x1-3 804,5211-3
  • SFL 88,9x1,8-3,5
    SFL 88,9x1,8-3,5 88,94,5211,8-3,5
