Machine foot - MFTP

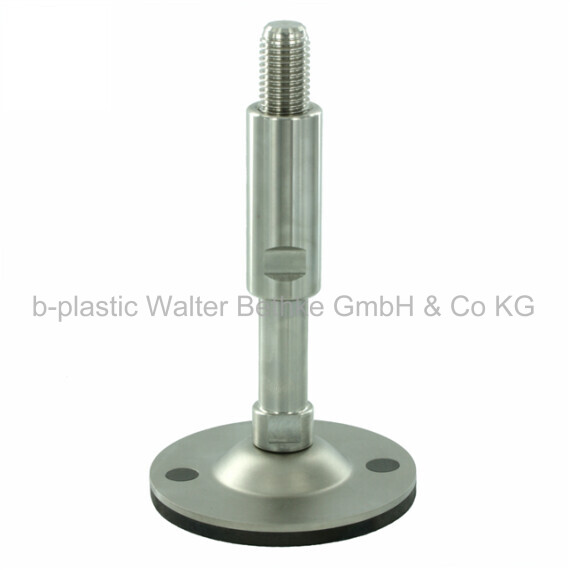

Machine feet made of stainless steel with sealing bush, fixing holes and vulcanised rubber pad

Your session has expired, please log in again.
MFTP
MFTP
MFTP
MFTP
PDF data sheet
  • Base body: AISI 304 (A2)
  • Rubber: NBR 80 Shore, vulcanized
  • The machine base has a sealing bush that covers parts of the thread. An O-ring is incorporated inside the bush. The sealing ring prevents the penetration of dirt by mechanically sticking to the thread surface. Thus the strictest legal hygiene standards are fulfilled.
  • Die abgerundete Form und der verdeckte Übergang vom Fuß zum Gewinde erleichtern die Reinigung.
  • The vulcanized rubber mounting surface can be drilled through and screwed to the floor.
  • Depending on the foot diameter the machine foot has two or four fixing holes.
  • The machine foot can compensate for uneven floors up to 8°.
  • Especially suitable for tanks and cisterns, also for the beverage industry, chemical industry
  • The load capacity of the screw (buckling length!) may be less than indicated in the table.

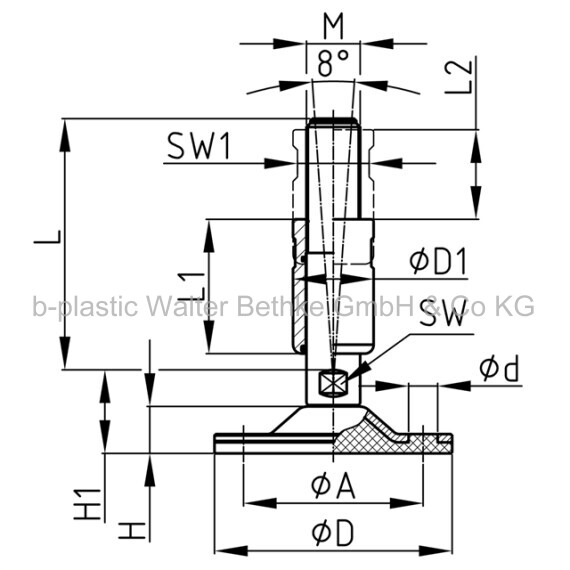

  • Character dimension "L2" corresponds to the maximum usable stroke in mm.
