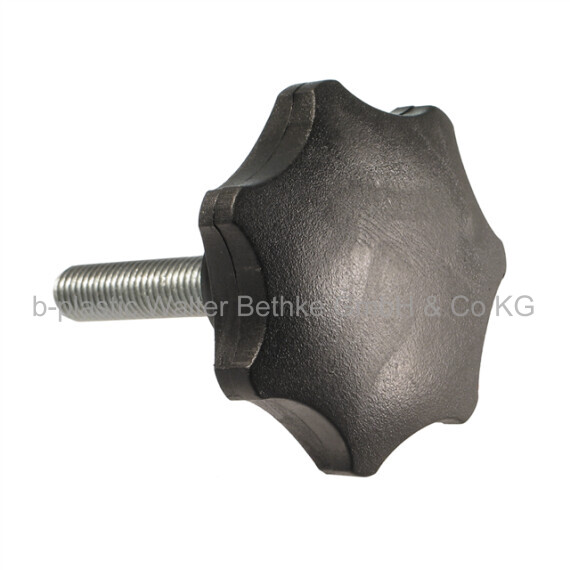

Star knob - 77
Star knobs made of PA with overmoulded threaded bolt
Your session has expired, please log in again.

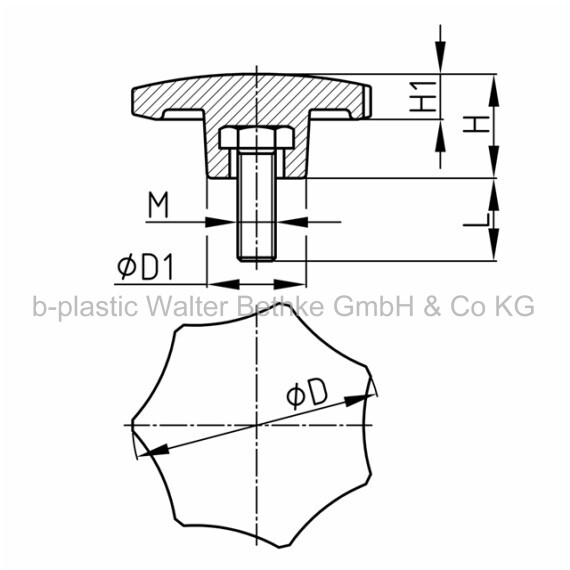

Configure your article. Enter multiple parameters to get the best result.
D in mm:
D1 in mm:
H in mm:
H1 in mm:
L in mm:
M:
Your article results:
Order-No. D
mmD1
mmH
mmH1
mmL
mmM - 77- M 8x20
77- M 8x20 60 24 34 14,5 15 M8 - 77- M 8x25
77- M 8x25 60 24 34 14,5 20 M8 - 77- M 8x30
77- M 8x30 60 24 34 14,5 25 M8 - 77- M 8x40
77- M 8x40 60 24 34 14,5 35 M8 - 77- M 8x50
77- M 8x50 60 24 34 14,5 45 M8 - 77- M10x16
77- M10x16 60 24 34 14,5 11 M10 - 77- M10x25
77- M10x25 60 24 34 14,5 20 M10 - 77- M10x30
77- M10x30 60 24 34 14,5 25 M10 - 77- M10x40
77- M10x40 60 24 34 14,5 35 M10 - 77- M10x50
77- M10x50 60 24 34 14,5 45 M10 - 77- M10x60
77- M10x60 60 24 34 14,5 55 M10 - 77- M10x70
77- M10x70 60 24 34 14,5 65 M10 - 77- M10x80
77- M10x80 60 24 34 14,5 75 M10 - 77- M10x100
77- M10x100 60 24 34 14,5 95 M10
