Assembled expander connector - EVR

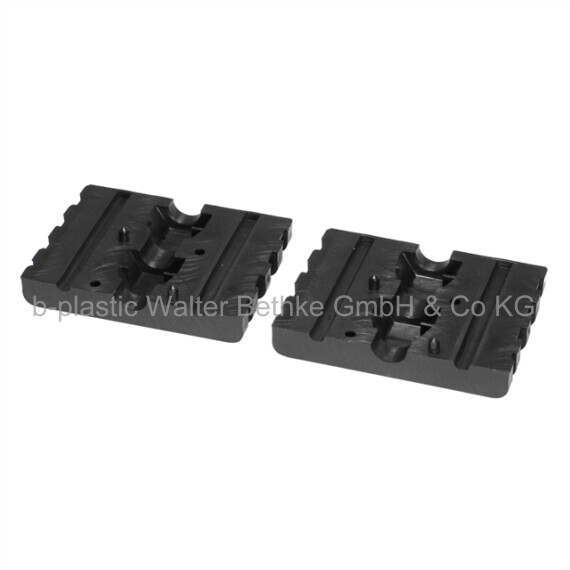

Assembled expander connectors without collar made of PA for rectangular tubes, hexagon nuts or screws plugged

Your session has expired, please log in again.
EVR
EVR
EVR
EVR
EVR
EVR
EVR
EVR
EVR
EVR
EVR
EVR
EVR
EVR
PDF data sheet
  • Polyamide (PA)
black
  • These two-part expander connectors without collar have tapered conical cavities for hexagon nuts or screws. Tightening of the thread presses the connector against inner tube wall (rawle plug effect), providing a connection resistand to tension. The intensitiy of this resistance depends to a degree from the quality of the tubes (tolerances, roughness, welding seam, etc.) and as well the torque of the tightening. We advise to check the application beforehand.
  • Stepped bores in the tube (outer bore larger than the diameter of the screw head, inner hole suitable for the respective thread) and use of slotted or hexagon socket screws allow high extraction forces without deformation of the tube wall.
  • Right-angled connection to trusses
  • Tube extensions (1 expander with nut and 1 expander with screw)
  • Subsequent installation of shelf compartments in already existing constructions
  • Frequently disassembled and reassembled racks
  • Invisible connections
  • Order-related production for individual article sizes! Please ask for minimum quantity.

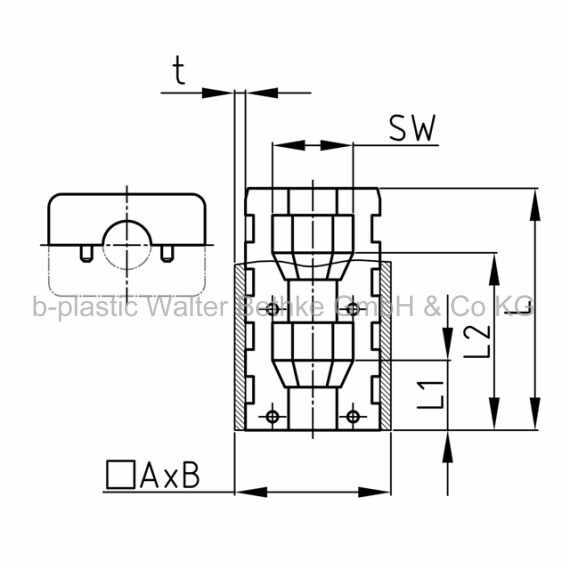

Configure your article. Enter multiple parameters to get the best result.

A in mm:

B in mm:

L in mm:

L1 in mm:

L2 in mm:

WAF in mm:

t in mm:

Your article results:

  • Order-No. A
    mm    		B
    mm    		L
    mm    		L1
    mm    		L2
    mm    		WAF
    mm    		t
    mm
  • EVR 30x15x1,5 / M5
    EVR 30x15x1,5 / M5 301542123281,5
  • EVR 30x15x1,5 / M6
    EVR 30x15x1,5 / M6 3015421232101,5
  • EVR 30x20x1,5 / M6
    EVR 30x20x1,5 / M6 3020431232101,5
  • EVR 30x20x1,5 / M8
    EVR 30x20x1,5 / M8 3020431232131,5
  • EVR 30x20x2 / M6
    EVR 30x20x2 / M6 3020431232102
  • EVR 40x15x2 / M5
    EVR 40x15x2 / M5 401542143382
  • EVR 40x20x1,5 / M 8 Kurz
    EVR 40x20x1,5 / M 8 Kurz 4020301212131,5
  • EVR 40x20x1,5 / M8
    EVR 40x20x1,5 / M8 4020421232131,5
  • EVR 40x25x2 / M10
    EVR 40x25x2 / M10 4025421030172
  • EVR 50x25x1,2-1,6 / M10
    EVR 50x25x1,2-1,6 / M10 5025441030171,2-1,6
  • EVR 50x25x2 / M10
    EVR 50x25x2 / M10 5025431030172
  • EVR 50x30x2 / M10
    EVR 50x30x2 / M10 503038825172
  • EVR 60x30x2 / M10
    EVR 60x30x2 / M10 6030401030172
  • EVR 60x40x2 / M10
    EVR 60x40x2 / M10 6040431030172
