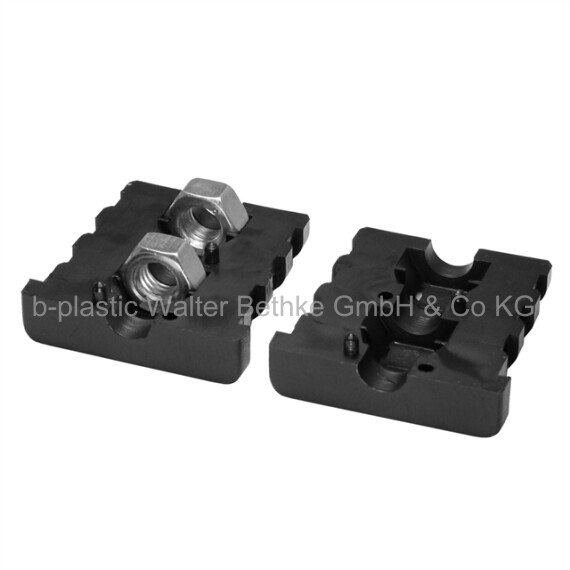

Assembled expander plug - EBRM2
Assembled expander plugs with collar made of PA for rectangular tubes with two hexagon nuts
Configure your article. Enter multiple parameters to get the best result.

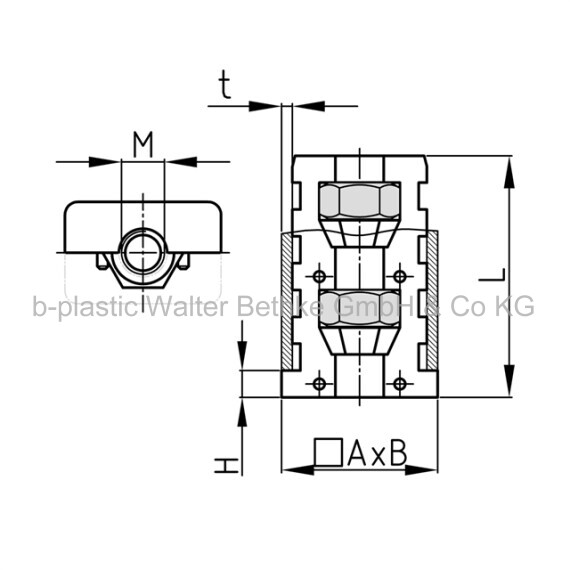

A in mm:
B in mm:
H in mm:
L in mm:
M:
t in mm:
F max. in kg:
Your article results:
Order-No. A
mmB
mmH
mmL
mmM t
mmF max.
kg- EBRM2 30x20x1,5 / M8
EBRM2 30x20x1,5 / M8 30 20 5 42 M8 1,5 300 - EBRM2 40x20x1,5 / M8
EBRM2 40x20x1,5 / M8 40 20 5 40 M8 1,5 300 - EBRM2 40x20x2 / M8
EBRM2 40x20x2 / M8 40 20 5 42 M8 2 300 - EBRM2 40x30x2 / M10
EBRM2 40x30x2 / M10 40 30 5 37 M10 2 300 - EBRM2 50x25x1,2-1,6 / M10
EBRM2 50x25x1,2-1,6 / M10 50 25 5 42 M10 1,2-1,6 300 - EBRM2 50x25x1,2-1,6 / M12
EBRM2 50x25x1,2-1,6 / M12 50 25 5 42 M12 1,2-1,6 300 - EBRM2 50x25x2 / M10
EBRM2 50x25x2 / M10 50 25 5 43 M10 2 300 - EBRM2 50x30x2 / M10
EBRM2 50x30x2 / M10 50 30 5 43 M10 2 300 - EBRM2 60x30x2 / M10
EBRM2 60x30x2 / M10 60 30 5 43,5 M10 2 300 - EBRM2 60x30x2 / M12
EBRM2 60x30x2 / M12 60 30 5 43,5 M12 2 300
Login to get price and discount information for all products.
Product variants
EBR
Assembled expander plugs with collar made of PA for rectangular tubes, hexagon nuts or screws plugged
EBRMH
Assembled expander plugs with collar made of PA for rectangular tubes with one hexagon nut (rear)
EBRMV
Assembled expander plugs with collar made of PA for rectangular tubes with one hexagon nut (in the front)
