Slide bushing - 103

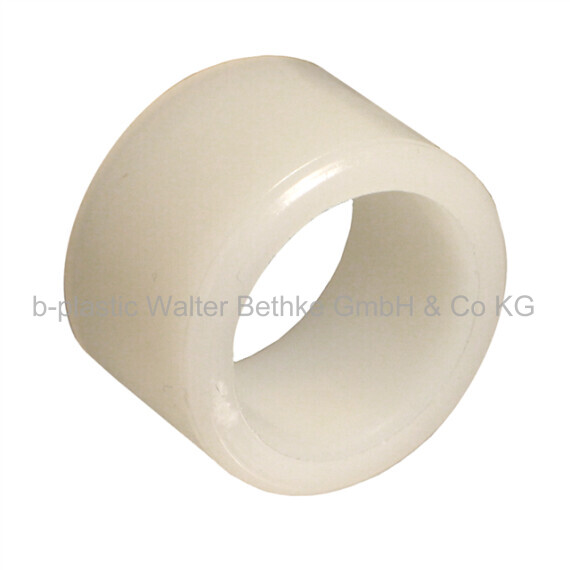

Slide bushings made of polyamide

Your session has expired, please log in again.
103
103
103
103
103
103
PDF data sheet
  • Polyamide (PA)
uncoloured
  • When assembled, the bearing clearance is appr. 1% of shaft diameter.
  • Surface pressure max. 18 N/mm², depending on sliding speed and rotation speed.
  • Linear expansion coefficient 8x10 high -5 °C high -1
  • Bearing temperature max. 80 °C
  • Lubrication is mostly unnecessary.
  • Water absorption (23 °C) max. 7,5%
  • Water content on an average annual appr. 2,4%
  • Bearing fit shaft/bore h6/H7

Configure your article. Enter multiple parameters to get the best result.

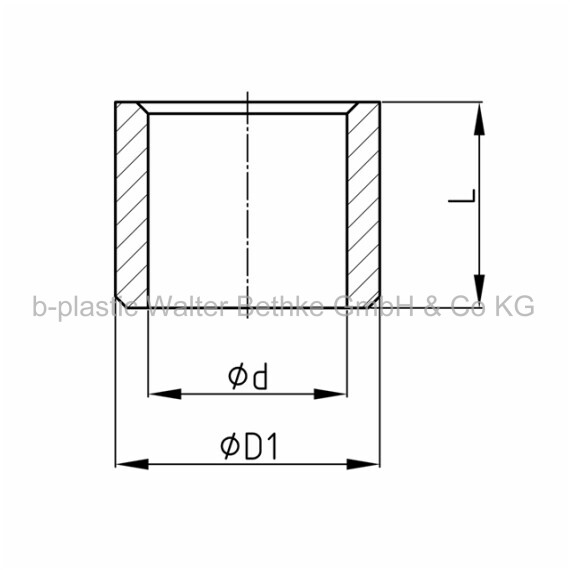

d in mm:

D in mm:

L in mm:

Your article results:

  • 103-8-12
    103-8-12 81210
  • 103-8-14
    103-8-14 81410
  • 103-10-12
    103-10-12 101210
  • 103-10-14
    103-10-14 101410
  • 103-10-16
    103-10-16 101610
  • 103-12-14
    103-12-14 121410
  • 103-12-16
    103-12-16 121610
  • 103-12-18
    103-12-18 121814
  • 103-15-20
    103-15-20 152015
  • 103-15-22
    103-15-22 152215
  • 103-15-25
    103-15-25 152515
  • 103-16-20
    103-16-20 162015
  • 103-16-22
    103-16-22 162215
  • 103-16-24
    103-16-24 162415
  • 103-20-24
    103-20-24 202415
  • 103-20-25
    103-20-25 202515
  • 103-20-26
    103-20-26 202620
  • 103-20-28
    103-20-28 202820
