Lamella plug - VLAF/R

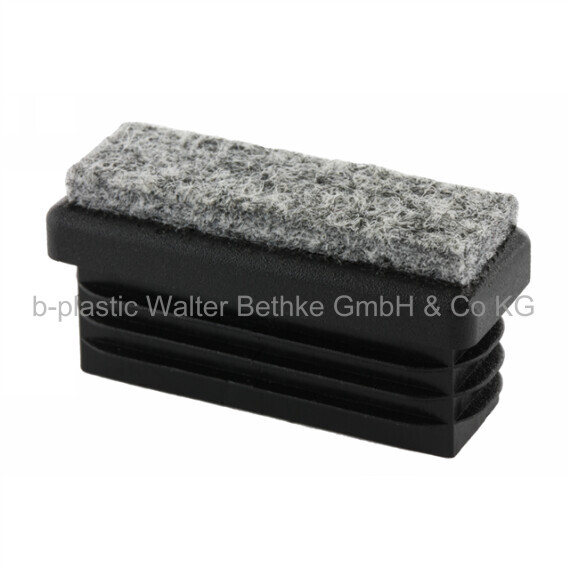

Lamella plugs made of polyethylene for rectangular tubes with welded felt

Your session has expired, please log in again.
VLAF/R
VLAF/R
VLAF/R
VLAF/R
VLAF/R
VLAF/R
VLAF/R
VLAF/R
VLAF/R
VLAF/R
PDF data sheet
  • Base body: Polyethylene (PE)
  • Slide base: synthetic needle felt (polyester)
black RAL 9005
  • Lamellar plugs without specification of the pipe wall thickness are generally suitable for pipe wall thicknesses 1.5 - 2 mm. Please indicate the pipe wall thickness when ordering.
  • The plugs are intended for use in pipes or equivalent bores with free passage corresponding to the clear nominal width of at least shaft length.
  • For technical production reasons, a residual sprue may exceed the shaft length.
  • Material and design of shafts guaranteed stop against drop out and easy assembling.
  • The ribs are circularly closed or interrupted.
  • The ribs are not suitable for sealing against fluids.
  • Special colours (colours, minimum quantities, set-up costs, pricing and surcharges)

Configure your article. Enter multiple parameters to get the best result.

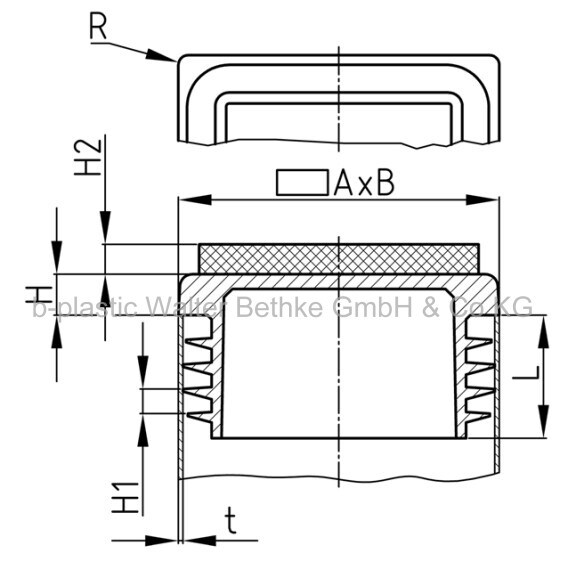

A in mm:

B in mm:

H in mm:

H1 in mm:

H2 in mm:

L in mm:

R in mm:

t in mm:

Your article results:

  • Order-No. A
    mm    		B
    mm    		H
    mm    		H1
    mm    		H2
    mm    		L
    mm    		R
    mm    		t
    mm
  • VLAF 20x10
    VLAF 20x10 2010333,511,50,8-2
  • VLAF 20x15
    VLAF 20x15 2015533,511,51-2
  • VLAF 25x20
    VLAF 25x20 2520533,511,51-3
  • VLAF 30x10
    VLAF 30x10 3010333,511,50,8-2
  • VLAF 30x15
    VLAF 30x15 3015533,511,50,8-2,5
  • VLAF 35x10
    VLAF 35x10 3510533,511,50,8-2
  • VLAF 35x15
    VLAF 35x15 3515533,511,51-3
  • VLAF 40x10
    VLAF 40x10 4010533,5111,51,5-2
  • VLAF 40x15
    VLAF 40x15 4015533,511,71,51-2
  • VLAF 40x30
    VLAF 40x30 4030533,511,521-3
  • VLAF 100x30
    VLAF 100x30 10030533,514,521,5-3,5
  • VLAF 100x40
    VLAF 100x40 10040533,514,521,5-3,5
