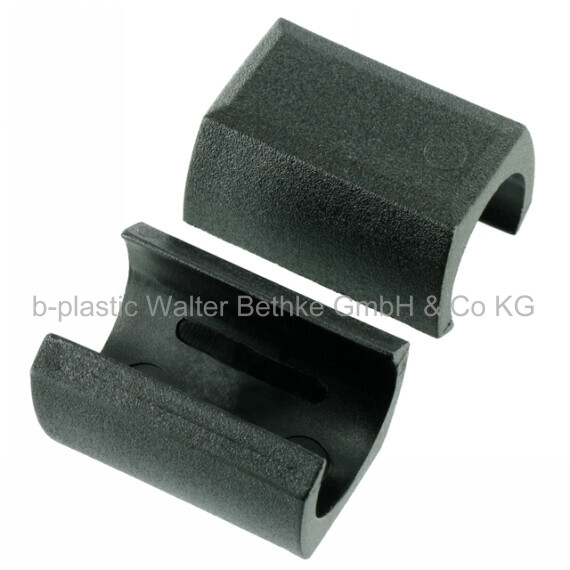

Clamping shell glider - KSG
Clamping shell glides made of PE
Your session has expired, please log in again.
Configure your article. Enter multiple parameters to get the best result.

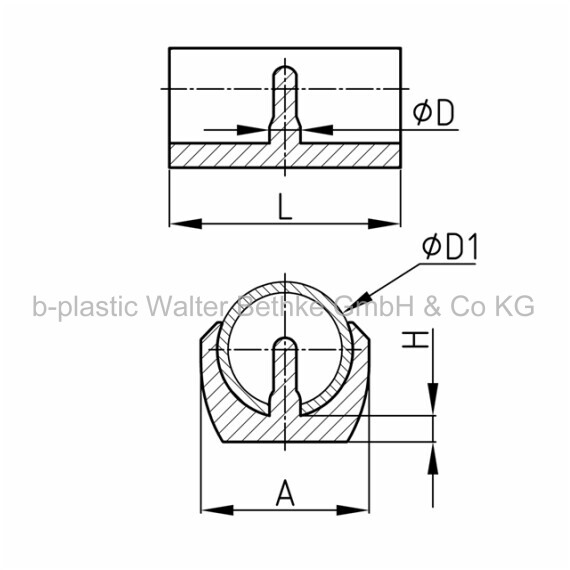

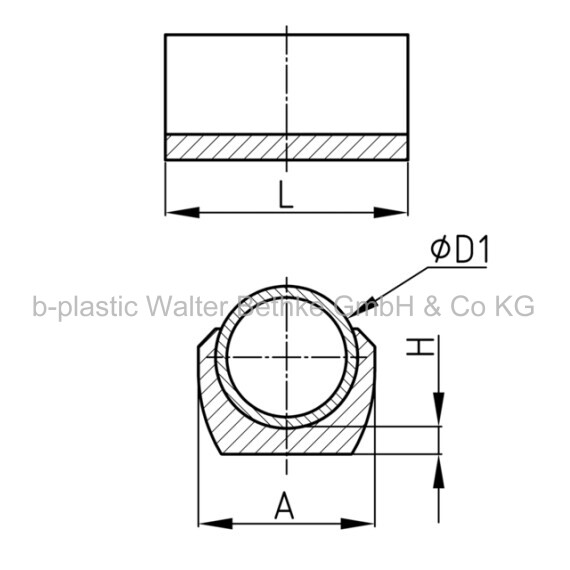

A in mm:
D in mm:
D1 in mm:
d in mm:
d1 in mm:
H in mm:
L in mm:
Your article results:
Order-No. A
mmD
mmD1
mmd
mmd1
mmH
mmL
mm- KSG 8 o. Z. *
KSG 8 o. Z. * 17 8 4 24 - KSG 10 o. Z. *
KSG 10 o. Z. * 19,5 10 4,5 30 - KSG 10 B
KSG 10 B 13 10 4,3 8 4 22 - KSG 12 B
KSG 12 B 15 12 4,3 8 4 22 - KSG 14
KSG 14 20 5 14 3,5 26 - KSG 16 *
KSG 16 * 20 5 15-17 3,5 28 - KSG 16 o.Z.NEW!!
KSG 16 o.Z.NEW!! 20 15-17 3,5 28 - KSG 16 PA *
KSG 16 PA * 20 5 16-17 3,5 28 - KSG 20
KSG 20 23,5 5,7 18-20 4,5 30 - KSG 20 o.Z.NEW!!
KSG 20 o.Z.NEW!! 23,5 18-20 4,5 30 - KSG 22
KSG 22 25,5 5,7 20-22 5 30 - KSG 22 o.Z.NEW!!
KSG 22 o.Z.NEW!! 25,5 20-22 5 30 - KSG 25
KSG 25 28 5,7 23-25 5 42 - KSG 30
KSG 30 32,5 5,7 28-30 5 45 - KSG 25 o.Z.
KSG 25 o.Z. 28 23-25 5 42
