Threaded insert - QAF

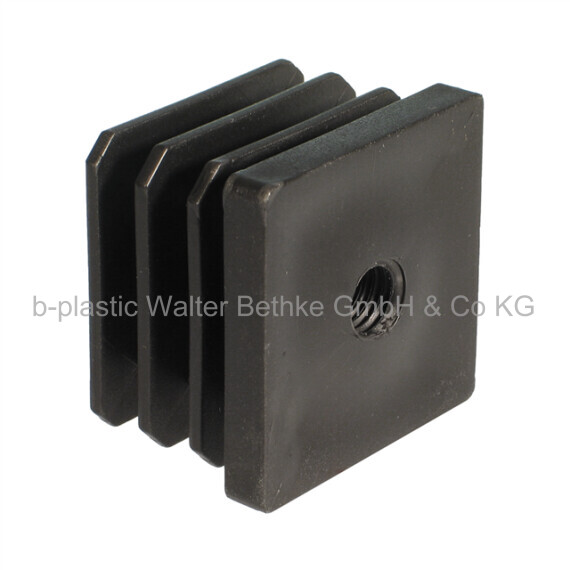

Threaded plugs made of PP for square tubes with injection moulded plastic thread
Your session has expired, please log in again.
Configure your article. Enter multiple parameters to get the best result.

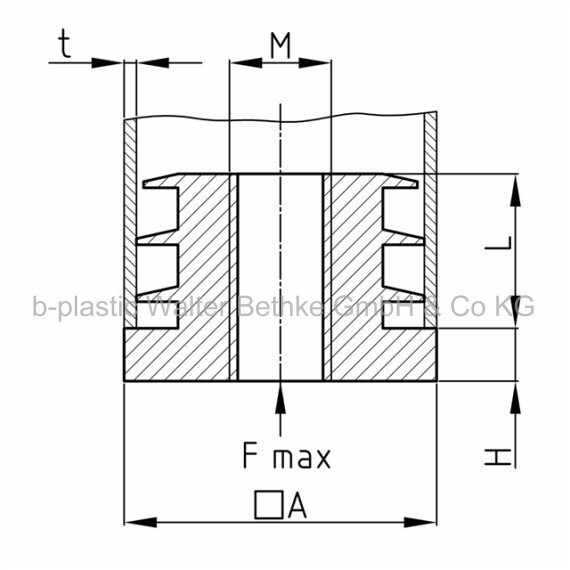

A in mm:
F max. in kg:
H in mm:
L in mm:
M:
t in mm:
Your article results:
Order-No. A
mmF max.
kgH
mmL
mmM t
mm- QAF 15x15
QAF 15x15 15 50 5 18 M8 1-1,5 - QAF 16x16
QAF 16x16 16 50 5 18 M8 1-1,5 - QAF 18x18
QAF 18x18 18 50 5 18 M10 1-1,5 - QAF 20x20
QAF 20x20 20 50 5 18 M10 1-1,5 - QAF 25x25
QAF 25x25 25 50 5 19 M10 1,5 - QAF 30x30
QAF 30x30 30 50 6 20 M10 1-1,5 - QAF 35x35
QAF 35x35 35 50 6 21 M10 1-1,5 - QAF 40x40
QAF 40x40 40 50 6 22 M10 1,5-2 - QAF 50x50
QAF 50x50 50 50 7 30 M10 1,5-2
